07- Body - Front Section

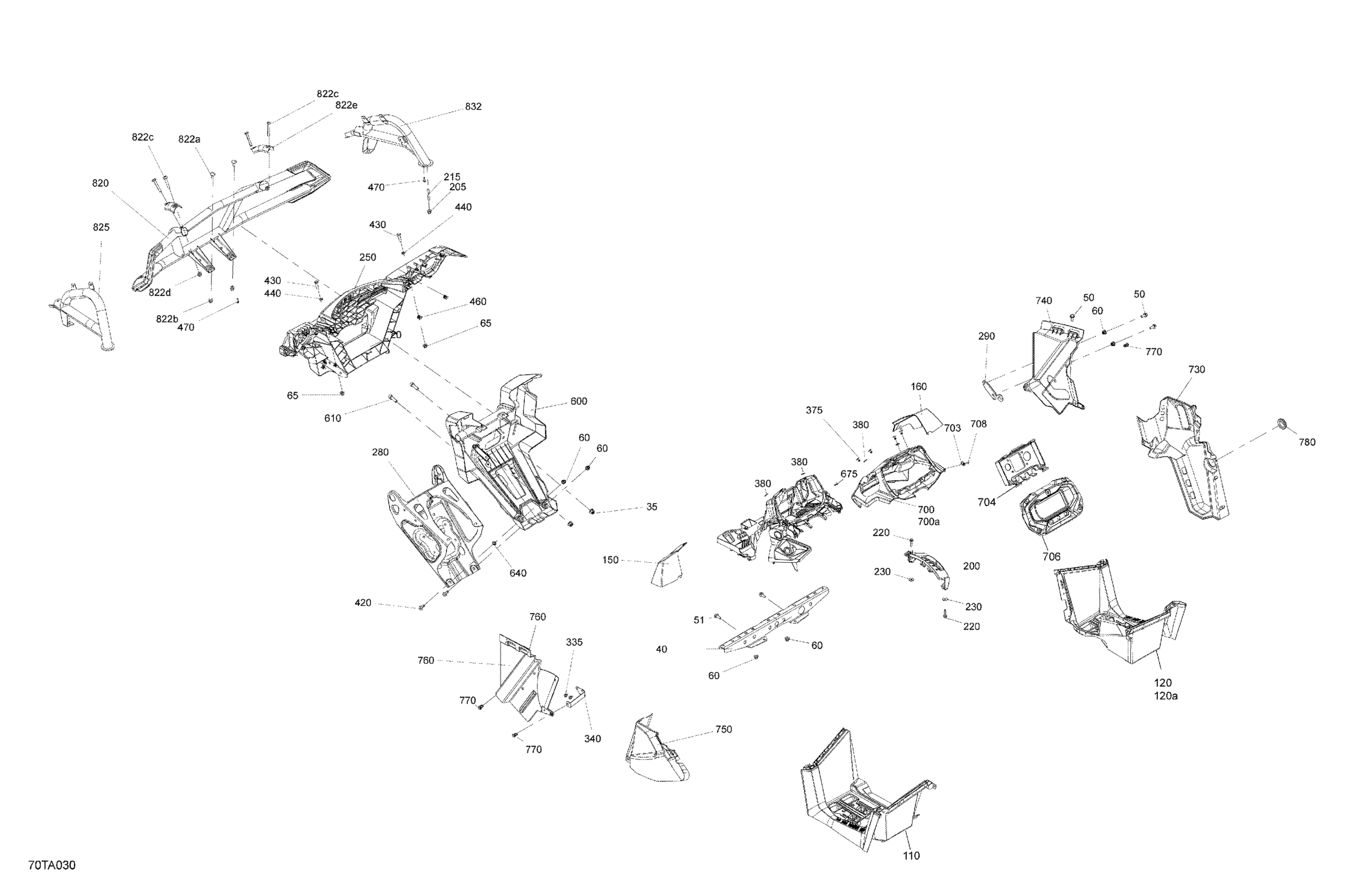

Can-Am 002 - Outlander 650 EFI - XMR - North America, 2021 07- Body - Front Section Diagram
#
35
Hex. Flange Elastic Nut M8
233281434
Unavailable
40
Front Bumper Center Support
705006220
Unavailable
50
Hex. Flange Screw M8 X 20
207682044
Unavailable
51
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
60
Hex. Flange Elastic Nut M8
233281434
Unavailable
65
Elastic Flange Nut M8
233281464
Unavailable
110
LH Footrest
705009810
Unavailable
120
RH Footrest
705009811
Unavailable
120a
RH Footrest
705008338
Unavailable
150
LH Air Deflector
705006134
Unavailable
160
RH Air Deflector
705006135
Unavailable
200
Shifter Gate Kit | Engine 570 Except Europe, T3
715003977
Unavailable
205
Hex. Flange Elastic Nut M8
233281434
Unavailable
215
Socket Set Screw M8 x 50
206285044
Unavailable
220
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
230
Flat Washer
224061201
Unavailable
250
Fascia
705012822
Unavailable
280
Front Bumper Support
705016893
Unavailable
290
Lower Fender Support
705004565
Unavailable
335
Hex. Flange Screw M6 X 10
210261040
Unavailable
340
LH Inner Fender Bracket
705007140
Unavailable
375
Pop Rivet 3/16" | DS 650 X
293150104
Unavailable
380
Washer
517124300
Unavailable
420
Torx Screw M8 X 30
250000886
Unavailable
430
Hex. Cap Screw M8 X 30
207183054
Unavailable
440
Stainless Steel Flat Washer 8 mm
234081670
Unavailable
460
Edge Clip
517302785
Unavailable
470
Hex. Flange Screw, Scotch Grip
207551634
Unavailable
600
Front Guard Plate | North America, International
705006299
Unavailable
610
Hex. Screw M8 X 20
236282054
Unavailable
640
Ring
705004497
Unavailable
675
Phillips Screw K40 X 16
250000723
Unavailable
700
Gauge Support
705013983
Unavailable
700a
Gauge Support
705013984
Unavailable
703
Extruded Panel Nut M4 X 0.7
250100143
Unavailable
704
Interior Gauge Support
705015548
Unavailable
706
Gauge Trim
705015547
Unavailable
708
Torx Head Screw M4 X 16
250000797
Unavailable
730
RH Wheel Arch Protector
705013925
Unavailable
740
RH Front Inner Fender
705011463
Unavailable
750
LH Wheel Arch Protector
705013924
Unavailable
760
LH Front Inner Fender
705011465
Unavailable
770
Tuflok Plastic Rivet
293150230
Unavailable
780
Rubber Cover
293250242
Unavailable
820
Manta Green, Front Bumper
705014417
Unavailable
822a
Carriage Bolt, M8 X 20
207782044
Unavailable
822b
Hex. Flange Elastic Nut M8
233281434
Unavailable
822c
Torx Screw M8 X 55
250000535
Unavailable
822d
Elastic Flange Nut M8
233281464
Unavailable
822e
Manta Green Upper Bracket | Model-Digital Camo
705008574
Unavailable
825
Manta Green, LH Radiator Support
705016594
Unavailable
832
Manta Green, RH Radiator Support | Model-Digital Camo
705016595
Unavailable
