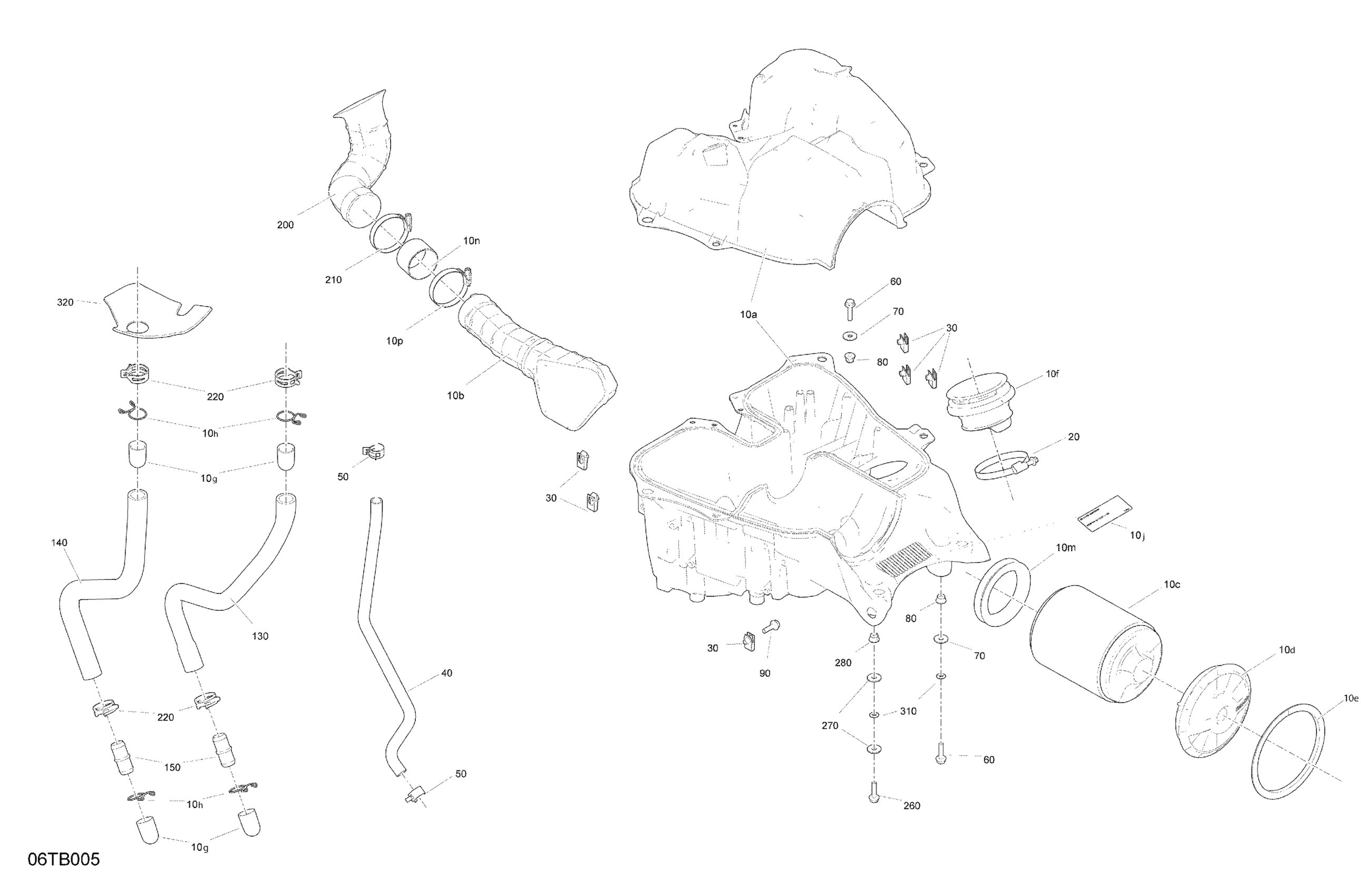

Can-Am Outlander 650 EFI - XMR - CE, 2022 Engine - Air Intake Diagram

#

Description
Price

10a

Air Box

707800724

$89.99

10b

Air Intake Hose

707800501

$55.99

10c

Air Filter

707800371

$40.99

10d

Intake Silencer Cap Ass'y

715002174

$17.49

10e

Gasket

293300175

$13.99

10f

Intake Adaptor

707800723

$20.99

10g

Drain Tube

707800080

$8.29

10h

Retainer Clip

707800278

$13.99

10j

Air Filter Maintenance Decal

707800373

Unavailable

10m

Air Filter Adaptor

707800470

$19.99

10n

Ring

707800504

$53.99

10p

Norma Clamp

293650077

$7.41

20

Norma Clamp

293650091

$11.12

30

Panel Nut M6 X 1.0

250100198

$2.11

40

Vent Hose

707800453

$25.99

50

Norma Clamp

293650110

$4.54

60

Hex. Flange Screw M6 X 25

207662544

$0.64

70

Flat Washer

250200082

$0.42

80

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

90

Hex. Flange Screw M6 X 20

207662044

$2.00

130

Formed Hose

707800671

$42.99

140

Formed Hose

707800672

$36.99

150

Straight Fitting

270001073

$11.12

200

Air Intake Front

707800528

$38.99

210

Norma Gear Clamp

293650090

$4.54

220

Norma Spring Clamp

293650109

$4.12

260

Hex. Flange Screw M6 X 25

207662544

$0.64

270

Flat Washer

250200082

$0.42

280

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

310

Push Nut

732610072

$2.19

320

Heat Shield

707002106

$10.49
