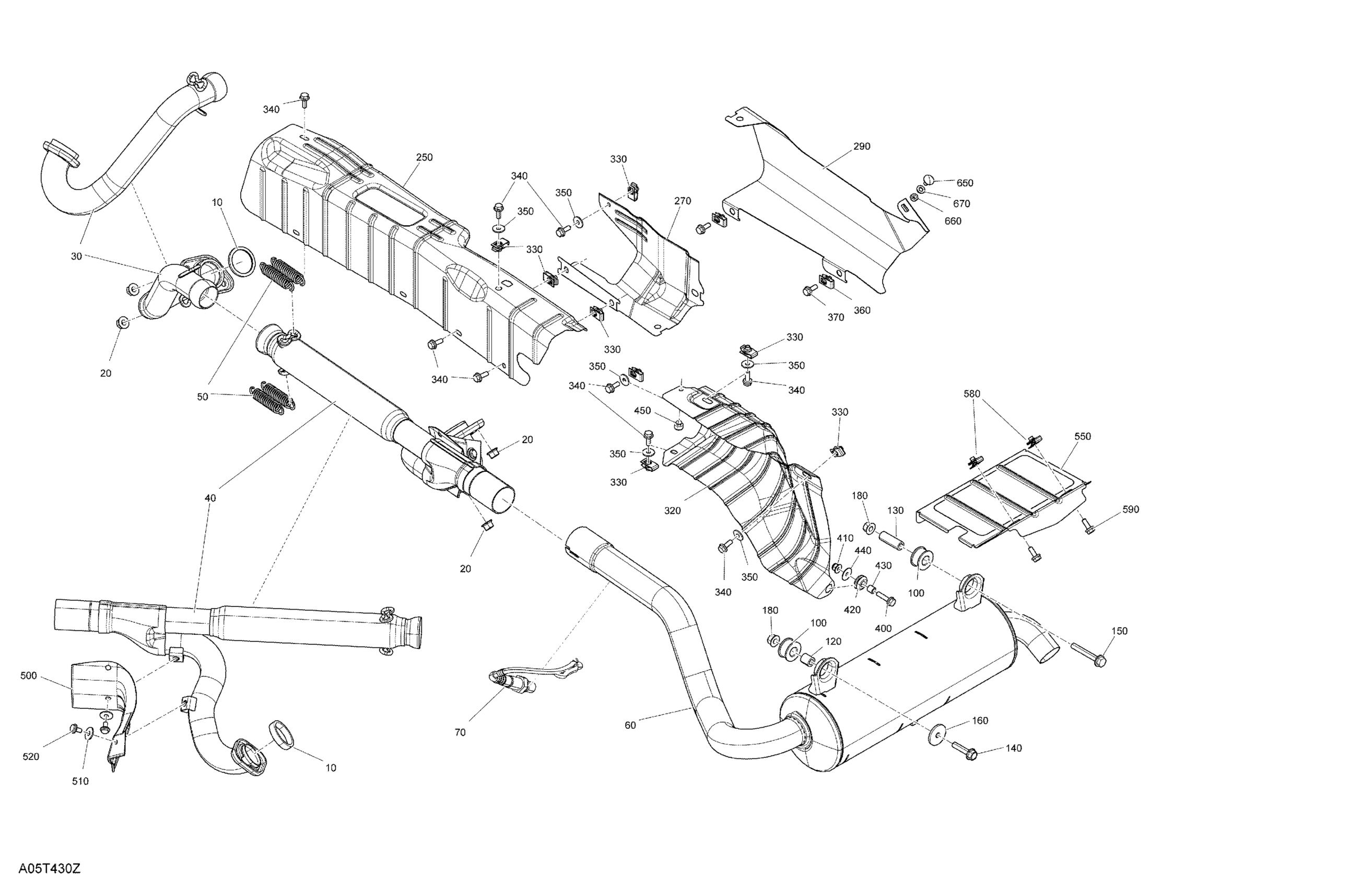

Can-Am Outlander 570 EFI - XU - CE, 2021 Engine - Exhaust Diagram

#

Description
Price

10

Gasket

707600317

$11.60

20

Hex. Flange Nut

233081436

$2.00

30

Front Head Pipe

707600764

$142.99

40

Rear Head Pipe

707601446

$206.49

50

Spring

415107100

$6.35

60

Muffler

707603046

$729.99

70

Oxygen Sensor

707600872

$144.99

100

Vibration Damper

707603323

$11.65

120

Spacer Bushing

293900116

$3.24

130

Bushing

293900115

$2.19

140

Hex. Flange Screw M8 X 35

207683544

$1.69

150

Hex. Flange Screw M8 X 55

207685544

$5.39

160

Flat Washer M8

250200158

$2.11

180

Hex. Flange Nut

233081436

$2.00

250

Heat Shield

707603724

$13.99

270

Protector

707601484

$12.71

290

Heat Shield

707600996

$24.49

320

Protector

707601425

$19.49

330

Panel Nut M6 X 1.0

250100198

$2.11

340

Hex. Flange Screw M6 X 16

207661644

$0.74

350

Flat Washer 6 mm

234062410

$0.77

360

Panel Nut M6 X 1.0

250100198

$2.11

370

Hex. Flange Screw M6 X 16

207661644

$0.74

400

Hex. Flange Screw M6 X 25

207662544

$0.64

410

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

420

Grommet

709000582

$4.69

430

Bushing

293900105

$7.65

440

Flat Washer

224060201

$1.26

450

Rubber Bumper

293830005

$8.09

500

Pipe Protector

707600932

$15.81

510

Flat Washer

250200082

$0.42

520

Hex. Flange Screw M6 X 12 S.Grip

250001090

$1.90

550

Protector

707601635

$13.16

580

Panel Nut M6 X 1.0

250100198

$2.11

590

Hex. Flange Screw M6 X 16

207661644

$0.74

650

Carriage Bolt M6 X 12

207761244

$1.90

660

Elastic Stop Nut M6

232561434

$1.99

670

Flat Washer 6 mm

234061410

$1.36
