08- Electric - System

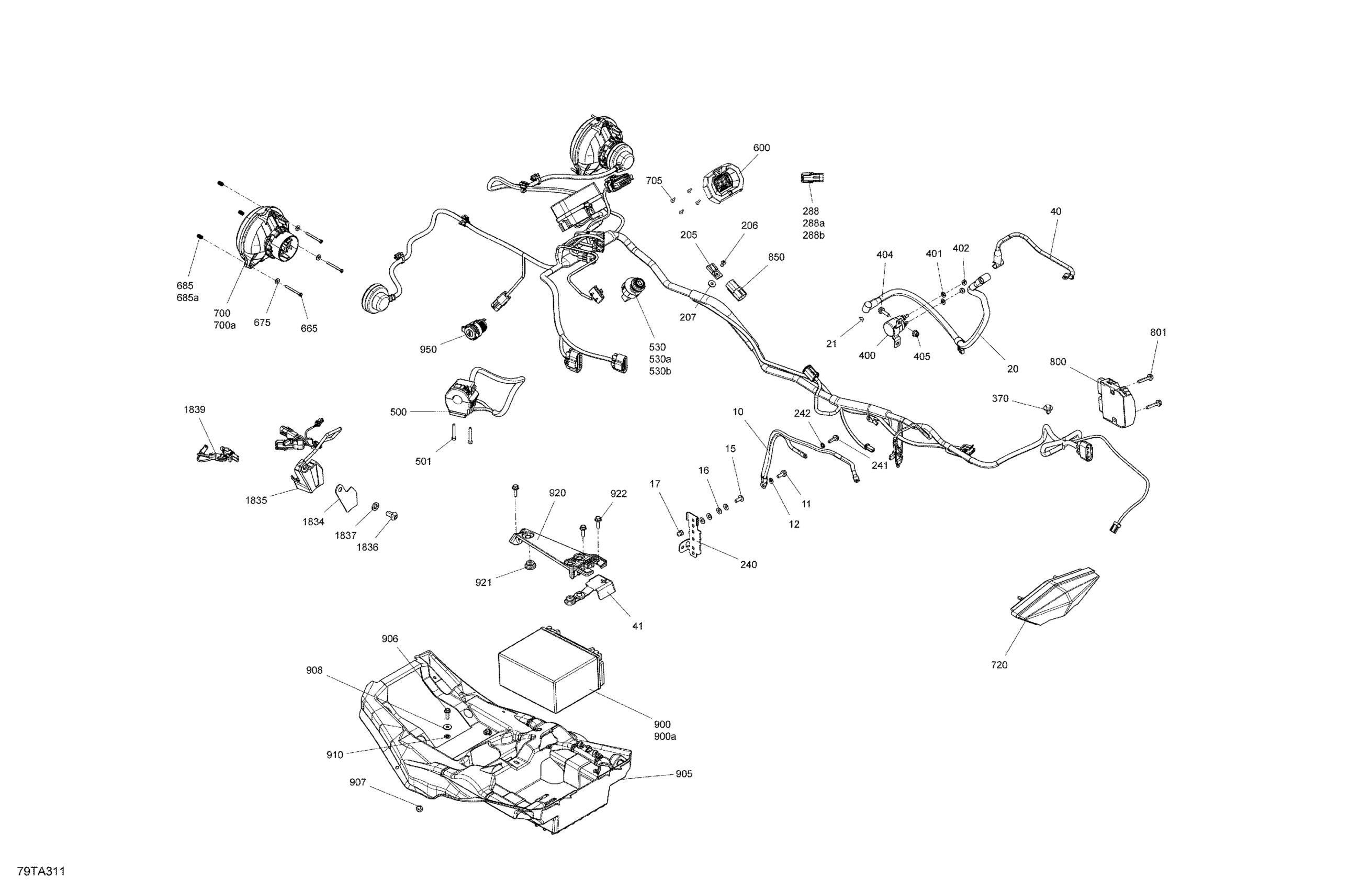

Can-Am 002 - Outlander 570 EFI - STD_DPS_XT_Mossy Oak Edition - North America, 2021 08- Electric - System Diagram
#
10
Ground Cable
710004382
Unavailable
11
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
12
Lock Washer Helical M6
234161601
Unavailable
15
Torx Head Screw M6 X 16
250000717
Unavailable
16
Flat Washer
224061121
Unavailable
17
Domed Nut M6
232361493
Unavailable
20
Positive Cable
710004377
Unavailable
21
Elastic Stop Nut M6
232561434
Unavailable
40
Positive Cable
710004376
Unavailable
41
Battery Cable Cap
710006729
Unavailable
50
Extension Cable 02 Sensor
710005819
Unavailable
205
Clip
270000141
Unavailable
206
Pop Rivet 3/16"
390402300
Unavailable
207
Washer | DS 650 X
391301600
Unavailable
240
Connector Bracket
710004118
Unavailable
241
Hex. Flange Screw M6 X 20
210262040
Unavailable
242
External Serrated Lock Washer 6 mm
234461608
Unavailable
288
Connector Ass'y
710001642
Unavailable
288a
Female Housing, 2 Circuits
278000217
Unavailable
288b
Wire Seal
278000216
Unavailable
370
Mount Dart
293730040
Unavailable
400
Starter Relay
710007777
Unavailable
401
Lock Washer Helical M6
234161601
Unavailable
402
Elastic Stop Nut M6
232561434
Unavailable
404
Hex. Flange Screw M6 X 20
207662054
Unavailable
405
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
500
Multi-Function Handle | Except Model Europe, Except T3
710005072
Unavailable
501
Socket Head Screw M5 X 35
205053588
Unavailable
530
Ignition Switch | Except Model Pro, T3
710007864
Unavailable
530a
Not Available As Spare Part - Friction Washer
Unavailable
530b
Not Available As Spare Part - Friction Washer
Unavailable
600
Multifunction Compact Gauge
710007407
Unavailable
665
Hex. Screw K40 X 45
250000718
Unavailable
675
Flat Washer
517225900
Unavailable
685
Spring
517168600
Unavailable
685a
Spring
517168600
Unavailable
700
Low Beam
710003900
Unavailable
700a
Bulb, 12V 35/35W
710000871
Unavailable
705
Torx Screw K50 X 16
250000720
Unavailable
720
Tail Light Housing Ass'y | Includes 29 to 31
710001203
Unavailable
800
Voltage Regulator | Package-DPS, Model-Europe
710005569
Unavailable
801
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
850
Housing
710003006
Unavailable
900
Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73
410301203
Unavailable
900a
Battery Bolt Kit
250000282
Unavailable
905
Battery Support
710006561
Unavailable
906
Hexagonal Head Screw
210262050
Unavailable
907
Rubber Bumper
293830005
Unavailable
908
Stainless Steel Flat Washer
234062670
Unavailable
910
Push Nut
732610072
Unavailable
920
Fixation Plate
710002404
Unavailable
921
Stopper Rubber
705014429
Unavailable
922
Hex. Flange Screw M6 X 20
207662054
Unavailable
950
DC Outlet
710001248
Unavailable
1834
Top Plate
715004008
Unavailable
1835
Multifonction Housing Ass'y
710004990
Unavailable
1836
Screw M10 X1.25 X 20 BHCS S.Grip
710005908
Unavailable
1837
Washer
503192496
Unavailable
1839
Cable
710004567
Unavailable
