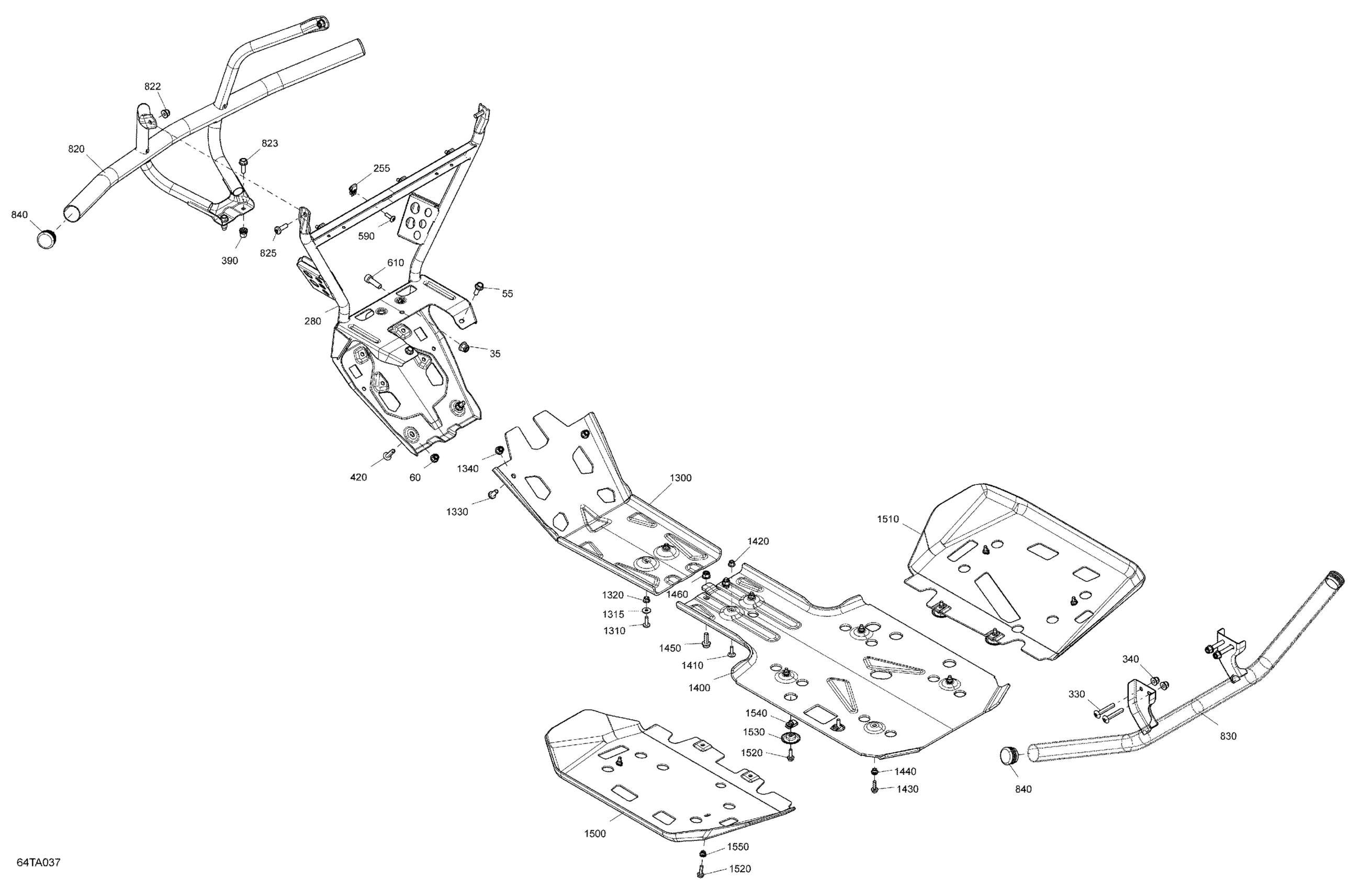

Can-Am Outlander 570 EFI - STD_DPS_XT_Mossy Oak Edition - 2021 Body - Skid Plate - Mossy Oak Edition Diagram

Description

Price

Hex. Flange Elastic Nut M10

233201434

$1.87

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

Hex. Flange Elastic Nut M8

233281434

$2.00

255

Panel Nut M6 X 1.0

250100198

$1.99

280

Front Frame

705017337

$236.54

330

Torx Truss Screw M8 X 50

250000761

$7.09

340

Elastic Flange Nut M8

233281464

$0.96

390

Insert Half Hex Body M8 x 1.25

293450307

$1.97

420

Torx Screw M8 X 30

250000886

$2.00

590

Torx Screw M6 X 20

250000722

$1.54

610

Socket Screw M10 x 30 | XT

205003044

$3.00

820

Front Bumper kit | Model XT, Hunter

715001910

$167.13

822

Elastic Flange Nut M8

233281464

$0.96

823

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

825

Pan Torx Screw M8 X 25

250000898

$2.00

830

Rear Bumper kit | Package Hunter

715001911

$132.06

840

Cap

705202455

$4.27

1300

Front Skid Plate | Package Hunter

705205019

$165.64

1310

Torx Screw M6 X 20

250000712

$2.00

1315

Stainless Steel Flat Washer

234062670

$2.00

1320

Flange Elastic Nut M6

233261434

$4.15

1330

Hex. Screw M8 X 20

236282054

$1.40

1340

Hex. Flange Elastic Nut M8

233281434

$2.00

1400

Central Skid Plate | Package-XXC

705204031

$159.67

1410

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.45

1420

Flange Elastic Nut M6

233261434

$4.15

1430

Hex. Flange Screw M6 X 20

207662054

$0.96

1440

Insert Half Hex Body M6 x 1.0

250100199

$2.91

1450

Hex. Flange Screw M8 X 25

207682534

$1.03

1460

Hex. Flange Elastic Nut M8

233281434

$2.00

1500

LH Skid Plate | Package Hunter

705010659

$109.67

1510

RH Skid Plate | Package Hunter

705010660

$109.67

1520

Hex. Flange Screw M6 X 20

207662054

$0.96

1530

Cup | Package Hunter

705007171

$6.00

1540

Panel Nut M6 X 1.0

250100198

$1.99

1550

Insert Half Hex Body M6 x 1.0

250100199

$2.91
