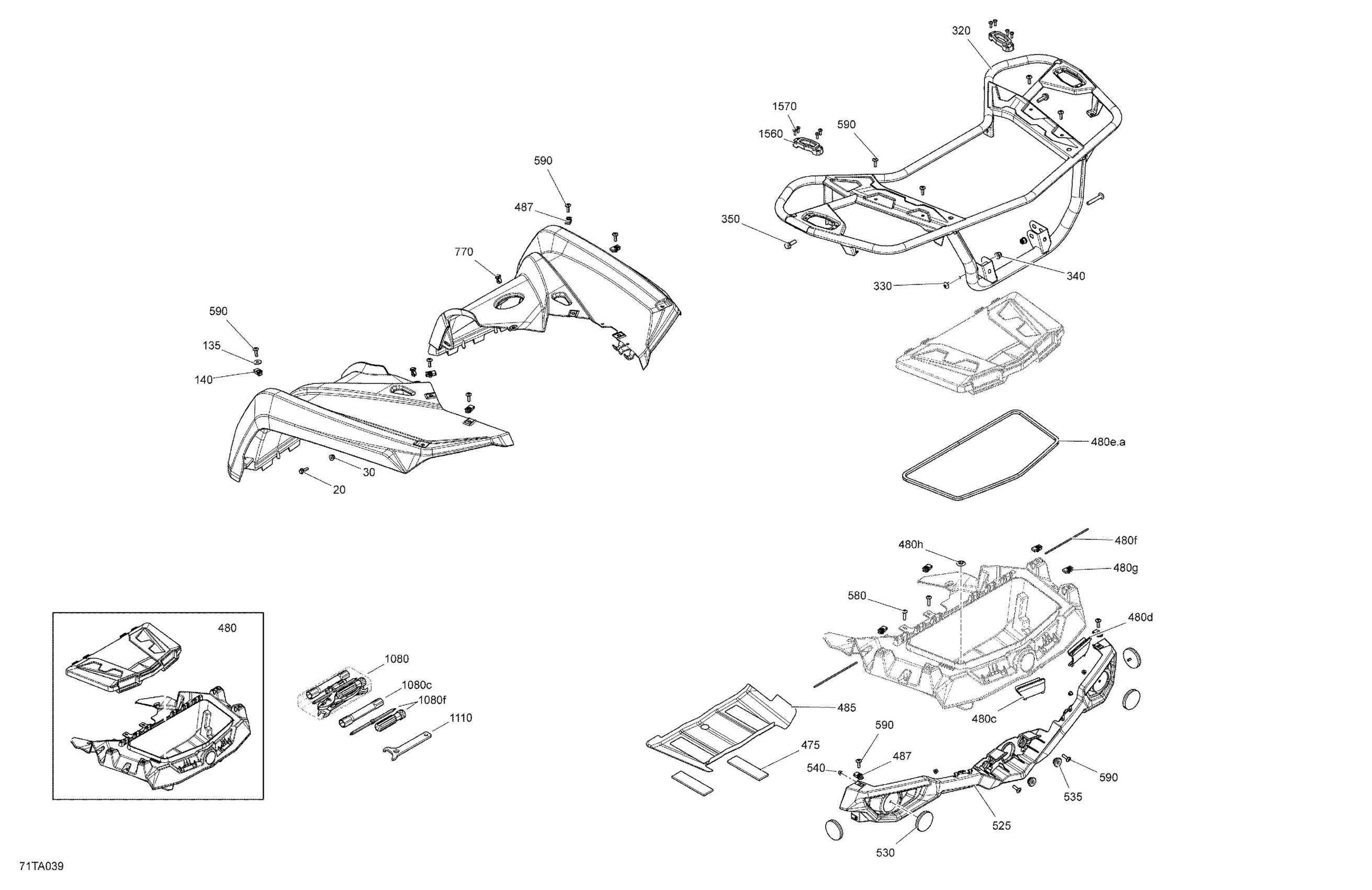

Can-Am Outlander 570 EFI - STD_DPS_XT_Mossy Oak Edition - 2021 Body - Rear Section Diagram

Description

Price

Hex. Flange Screw M6 X 20

207662054

$1.01

Flange Elastic Nut M6

233261434

$4.44

135

Flat Washer

224061201

$1.37

140

Panel Nut M6 X 1.0

250100198

$2.11

320

Black, Rear Luggage Rack

715005986

$232.99

330

Torx Truss Screw M8 X 50

250000761

$7.51

340

Elastic Flange Nut M8

233281464

$1.01

350

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

475

Rubber Pad

293830163

$10.49

480

Rear Storage Box Kit

715007980

$229.99

480c

LH Box Rear Latch

705007448

$11.99

480d

RH Box Rear Latch

705007921

$13.49

480e.a

Was 715900411 Neoprene Seal | Outlander MAX

219704452

$38.99

480f

Retaining Rod

705007531

$78.99

480g

Panel Nut M6 X 1.0

250100198

$2.11

480h

CAP - Call your local BRP dealership

414859400

Unavailable

485

Heat Deflector Sheet

705007487

$5.09

487

Panel Nut M6 X 1.0

250100198

$2.11

525

Rear Facia | Except Model- Europe

705005576

$45.99

530

Red Reflector

705011221

$14.49

535

Stopper Rubber

705014429

$5.95

540

Flange Elastic Nut M5

233251434

$2.00

580

Torx Truss Screw M6 X 25

250000807

$2.11

590

Torx Screw M6 X 20

250000722

$1.68

770

Tuflok Plastic Rivet

293150230

$1.47

822

Elastic Flange Nut M8

233281464

$1.01

1080

Tool Kit

704700168

$40.99

1080c

Socket Wrench 14/16MM

529000085

$6.55

1080f

Screw Driver

529000021

$3.29

1110

Adjustment Wrench

529000035

$2.09

1560

Linq Base Kit

715002350

$25.99

1570

Torx Screw K50 X 16

250000720

$1.69
