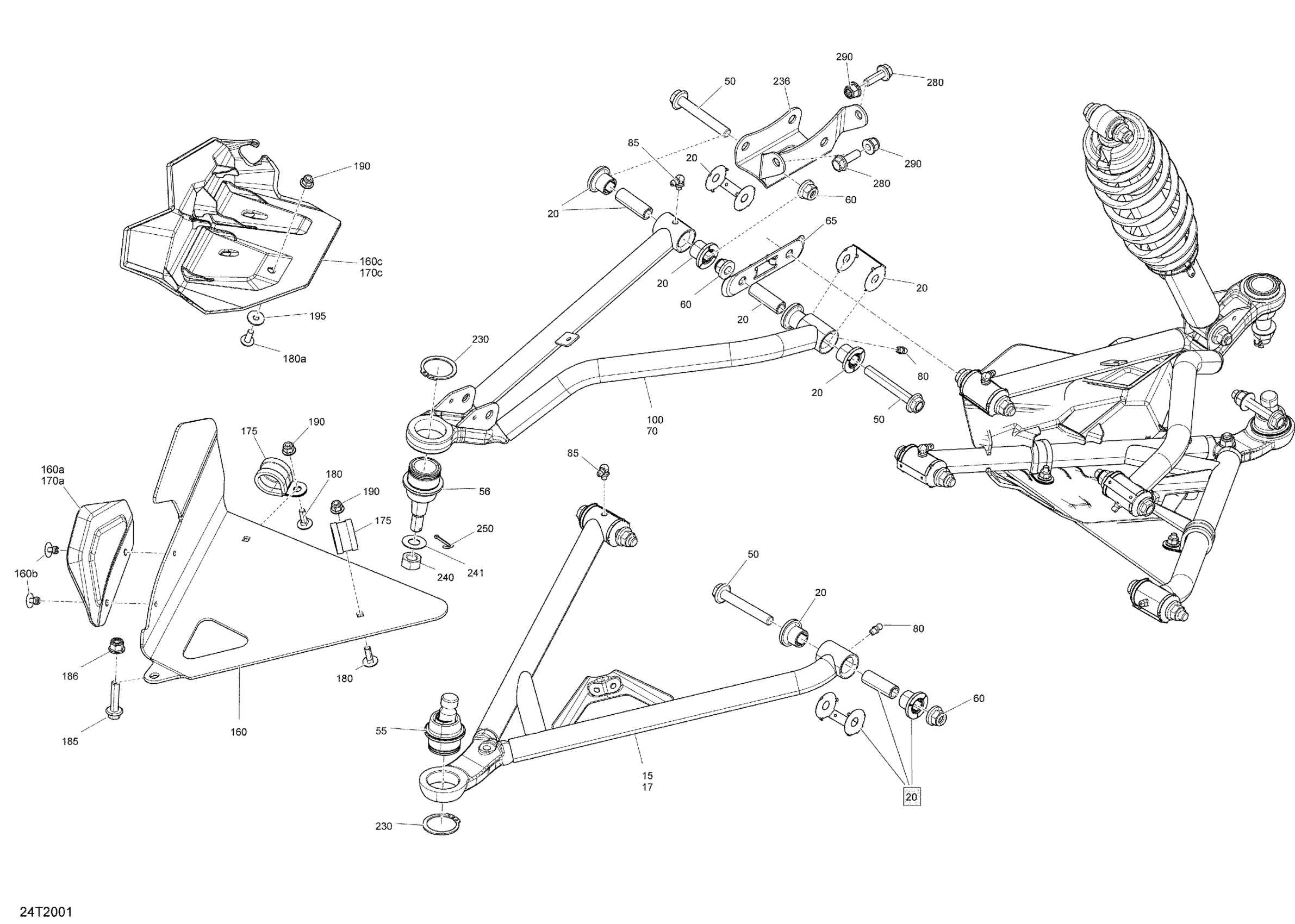

Can-Am Outlander 570 EFI - STD_DPS_XT_HUNTING - 2020 Front Suspension Diagram

#

Description
Price

15

LH Lower Suspension Arm

706204639

$158.99

17

Black, RH Lower Arm

706202870

$158.99

20

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

50

Hex. Flange Screw M10 X 70

207607046

$2.96

55

Ball Joint

706202045

$35.99

56

Ball Joint

706202044

$35.99

60

Hex. Flange Elastic Nut M10

233201436

$2.11

65

Front Suspension Cross Plate

706200998

$5.09

70

RH Upper Suspension Arm

706204642

$158.99

80

Grease Fitting

408200700

$3.49

85

Grease Fitting 90°

293550056

$1.15

100

LH Upper Suspension Arm

706204641

$158.99

160

A Arm Protector Kit | Includes 1600 to 1600c

715001667

$165.99

160a

RH PROTECTOR - Call your local BRP dealership | Hunting Edition

706201186

Unavailable

160b

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

160c

LH Joint Protector

706202808

$9.90

170c

RH Joint Protector

706202809

$9.90

170a

LH PROTECTOR - Call your local BRP dealership | Hunting Edition

706201185

Unavailable

175

Hose Anchor

709200036

$11.12

180

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

180a

Torx Screw M6 X 16

250000755

$0.87

185

Hex. Flange Screw M8 X 35

207683534

$2.11

186

Hex. Flange Elastic Nut M8

233281434

$2.11

190

Hex. Flange Elastic Nut M6

233261494

$1.58

195

Stainless Steel Flat Washer

234062670

$2.11

230

Circlip

293370035

$2.64

236

Upper Front Holder

705203247

$15.99

240

Nut M12

250100099

$2.09

241

Hardened Washer

706200281

$2.85

250

Cotter Pin

211400017

$0.33

280

Hex. Flange Screw M8 X 25

207682534

$2.11

290

Hex. Flange Elastic Nut M8

233281414

$1.47
