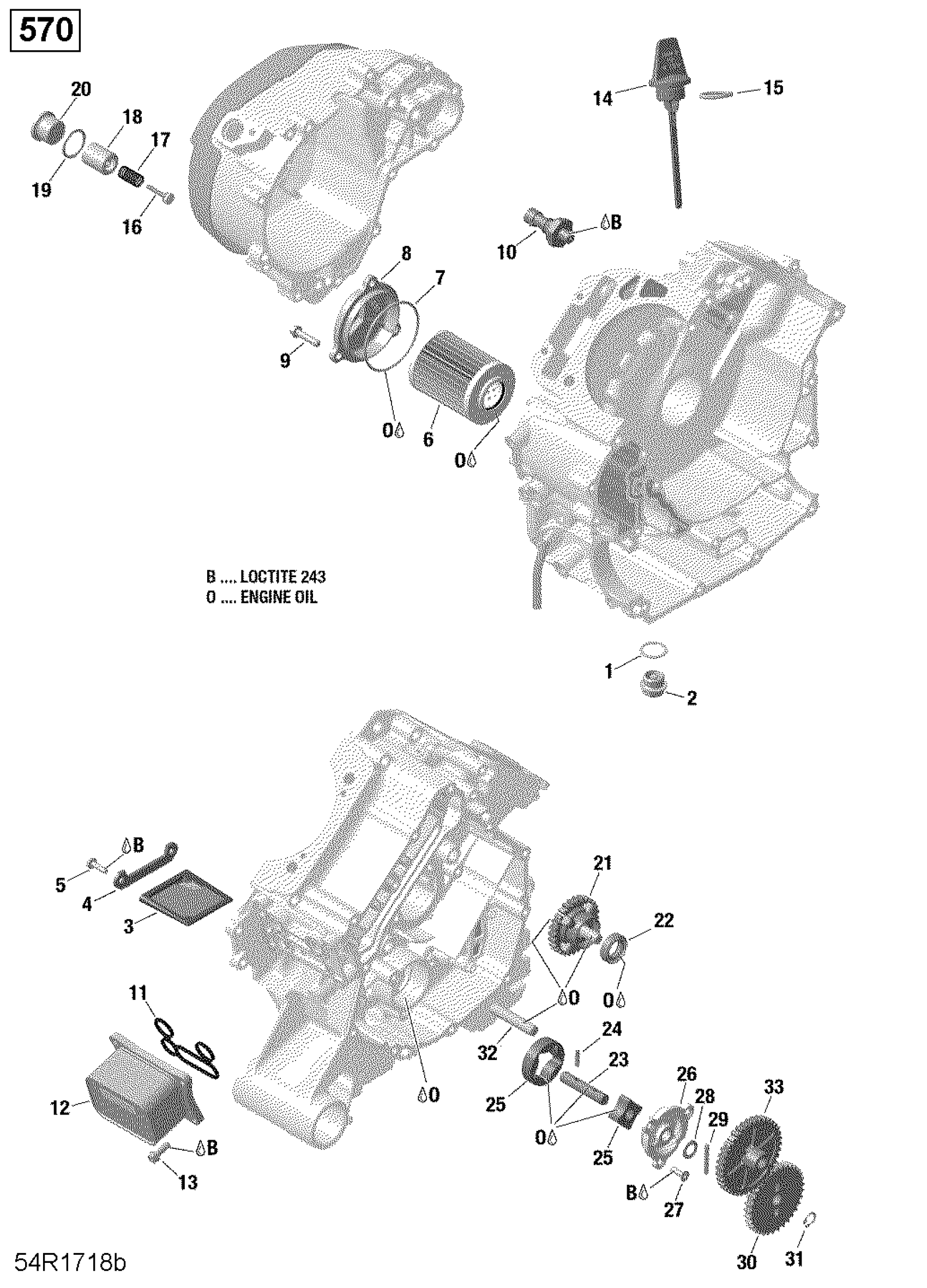

Can-Am Outlander - 570 EFI - PRO Package 0003RHC00 0003VHA00 0003XHD00 Engine Lubrication - 570 EFI (Package PRO) Diagram

Description

Price

Crush Washer

420552280

$3.70

Drain Plug M18 X 1.5

420840278

$23.99

Oil Sieve

420256322

$28.49

Cover Sieve

420612070

$4.14

Taptite Screw M5 X 16

420941928

Unavailable

Oil Filter

420256188

$13.77

O-Ring

420230923

$3.17

Oil Filter cover

420612135

$11.63

Torx Flange Screw M6 X 25

420641238

$3.27

Oil Pressure Switch

420256915

$40.99

Oil Seal

420430325

$8.85

Radiator

420890181

$95.49

Torx Flange Screw M6 X 16

420641048

$2.96

O-Ring

420631640

$2.11

Oil Dipstick

420256802

$17.05

Pressure Relief Valve

420656370

$19.19

Spring

420939481

$4.99

Housing

420256487

$7.41

Gasket Ring

420650465

$13.16

Plug Screw

420640271

$13.77

21>22

Idle Gear Ass'y, 28 Teeth | Includes 13 to 16

420434307

$88.99

Oil Seal

420430555

$19.99

Oil Pump Shaft

420237059

$29.49

Needle Pin

420232731

$4.01

Oil Pump Rotor

420256348

$77.99

Oil Pump Cover

420210646

$48.49

Torx Head Screw M5 X 16

420640823

$1.90

Thrust Washer

420827590

$4.01

Needle Pin

420232431

$4.39

Oil Pump Gear, 33 Teeth

420434320

$13.77

Circlip

504152282

$3.17

Location Pin 10 M6x50

420229302

$3.17

Idle Gear, 38 Teeth

420434300

$13.77
