Partiron

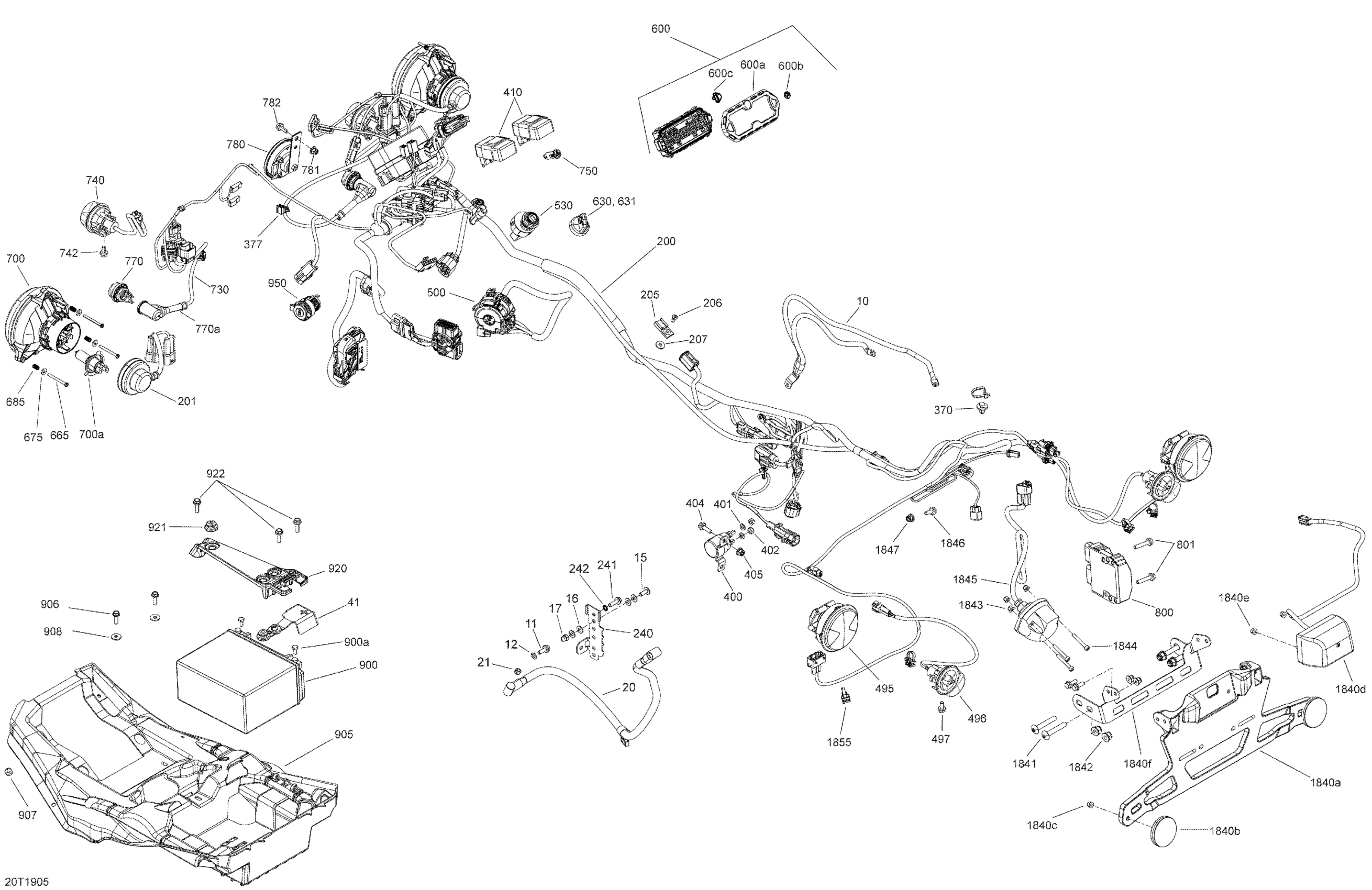

Can-Am Outlander 570 EFI - DPS_PRO - T3, 2019 Electrical - 570 EFI - Package PRO Diagram

#

Description
Price

10

Ground Cable

710004382

$19.99

11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

12

Lock Washer Helical M6

234161601

$1.15

15

Torx Head Screw M6 X 16

250000717

$2.11

16

Flat Washer

224061121

$0.53

17

Domed Nut M6

232361493

$2.11

20

Positive Cable

710004377

$27.99

21

Elastic Stop Nut M6

232561414

$0.55

41

Battery Cable Cap

710006729

$7.20

200

No ABS Cable

710006170

$1,009.99

201

Light Cable

710005780

$23.99

205

Clip

270000141

$11.49

206

Pop Rivet 3/16"

390402300

$0.75

207

Washer | DS 650 X

391301600

$0.48

240

Connector Bracket

710004118

$5.40

241

Hex. Flange Screw M6 X 20

210262040

$2.11

242

External Serrated Lock Washer 6 mm

234461608

$1.15

370

Mount Dart

293730040

$1.04

377

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

400

Starter Relay

710007777

$48.49

401

Lock Washer Helical M6

234161601

$1.15

402

Elastic Stop Nut M6

232561414

$0.55

404

Hex. Flange Screw M6 X 20

207662054

$1.01

405

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

410

Flasher Unit

710003239

$78.49

495

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

496

Flasher | Europe

710002964

$35.99

497

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

500

LH Multi Fonction Control

710006211

$174.99

530

Switch_Ignition | Model-Europe

710007865

$68.99

600

Speedometer

710006216

$339.99

631

Grey, Electronic Key

710002183

$63.49

665

Hex. Screw K40 X 45

250000718

$2.11

675

Flat Washer

517225900

$0.18

685

Spring

517168600

$7.39

700

Low Beam

710003900

$114.99

700a

Bulb, 12V 35/35W

710000871

$34.99

740

Flasher | Europe

710002964

$35.99

742

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

750

Pilot Lamp | Model-Europe

710003909

$21.99

770

Day Light | Europe

710001726

$35.99

770a

Cap Protector | Model-Europe

710003269

$12.11

780

Horn

710004791

$38.99

781

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

782

Hex. Flange Screw M6 X 16

207661644

$0.74

800

Voltage Regulator | Package-DPS, Model-Europe

710005569

$103.99

801

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

900a

Battery Bolt Kit

250000282

$7.29

905

Battery Support

710008370

$50.99

906

Hexagonal Head Screw

210262050

$2.11

907

Rubber Bumper

293830005

$8.09

908

Stainless Steel Flat Washer

234062670

$2.11

920

Retaining Plate

710009129

$8.69

921

Stopper Rubber

705014429

$5.95

922

Hex. Flange Screw M6 X 20

207662054

$1.01

950

DC Outlet

710001248

$37.99

1840a

Plate Support | Europe

708300434

$27.99

1840b

Red Reflector

705011221

$14.49

1840c

License Plate Light | Europe

710005563

$126.99

1840d

License Plate Support

710009520

$12.99

1840e

Hex. Flange Screw M6 X 16

207661644

$0.74

1840f

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

1841

Torx Truss Screw M8 X 50

250000761

$7.51

1842

Hex. Flange Elastic Nut M8

233281414

$1.47

1843

Hex. Flange Elastic Nut M5

233251414

$1.04

1844

Socket Head Screw M5 X 35

205053588

$1.90

1845

Trailer Harness

710005846

$229.99

1846

Hex. Flange Screw M6 X 16

207661644

$0.74

1847

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

1855

Tie-Rap Clip

710002896

$4.39
