- Partiron
- OEM Parts
- Can-Am
- Can-Am ATV
- 2019
- 009 - ATV - T3 Series - Outlander 450-570 Series
- 002 - Outlander 570 EFI - DPS_PRO - T3, 2019
08- Rear Drive T3 - 570 EFI - Except DPS

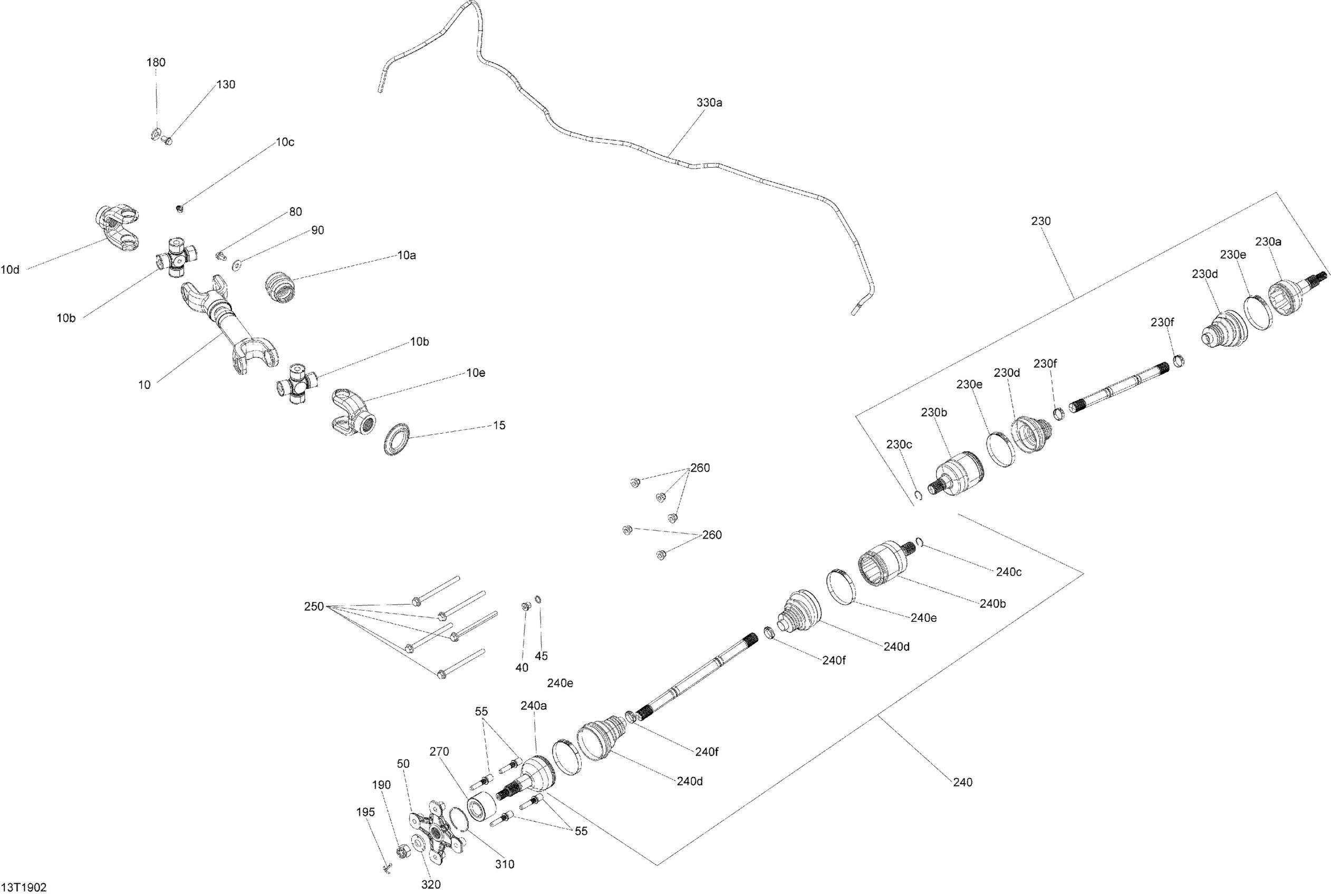

Can-Am 002 - Outlander 570 EFI - DPS_PRO - T3, 2019 08- Rear Drive T3 - 570 EFI - Except DPS Diagram
#
10
Shaft Ass'y Kit
703500988
Unavailable
10a
Rubber Boot
715900118
Unavailable
10b
Universal Joint Ass'y | T3
703500846
Unavailable
10c
Grease Fitting | T3
715900295
Unavailable
10d
Yoke
715900499
Unavailable
10e
Yoke
715900438
Unavailable
15
Protector
705501123
Unavailable
40
Fill Level Plug | 4X4
705500504
Unavailable
45
Copper Washer | 4X4
705500506
Unavailable
50
Wheel Hub Ass'y
705501716
Unavailable
55
Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4
250300643
Unavailable
80
Hex. Flange Screw M10 X 16 S.GRIP
250001044
Unavailable
90
Flat Washer M10 | 4X4
250200014
Unavailable
130
Hex Flange Screw M12 X 16
250001039
Unavailable
180
Conical Spring Washer M12
250200005
Unavailable
190
Hex. Flange Castellated Nut M18
232291413
Unavailable
195
Cotter Pin
250400071
Unavailable
230
RH Rear - Premium CV Axle | Includes 64a to 69a
705501486
Unavailable
230a
CV Joint
705501776
Unavailable
230b
PLUNGING JOINT - Call your local BRP dealership
705501780
Unavailable
230c
Circlip
705501781
Unavailable
230d
Boot Kit
705501864
Unavailable
230e
Oetiker Clamp, 82.1 mm
715900241
Unavailable
230f
Oetiker Clamp, 27.3 mm
715900242
Unavailable
240
LH Rear - Premium CV Axle | Includes 58a to 63a
705501485
Unavailable
240a
CV Joint
705501776
Unavailable
240b
PLUNGING JOINT - Call your local BRP dealership
705501780
Unavailable
240c
Circlip
705501781
Unavailable
240d
Boot Kit
705501864
Unavailable
240e
Oetiker Clamp, 82.1 mm
715900241
Unavailable
240f
Oetiker Clamp, 27.3 mm
715900242
Unavailable
240g
Boot Kit
705501864
Unavailable
240h
Oetiker Clamp, 82.1 mm
715900241
Unavailable
240j
Oetiker Clamp, 27.3 mm
715900242
Unavailable
250
Hex. Flange Screw M10 X 135
250001041
Unavailable
260
Hex. Flange Elastic Nut M10
233201436
Unavailable
270
Ball Bearing
293350150
Unavailable
310
Circlip
293370019
Unavailable
320
Conical Spring Washer M18
250200171
Unavailable
330a
Polyurethane Hose 4000MM Long | Includes 250 to 250a
219704389
Unavailable
