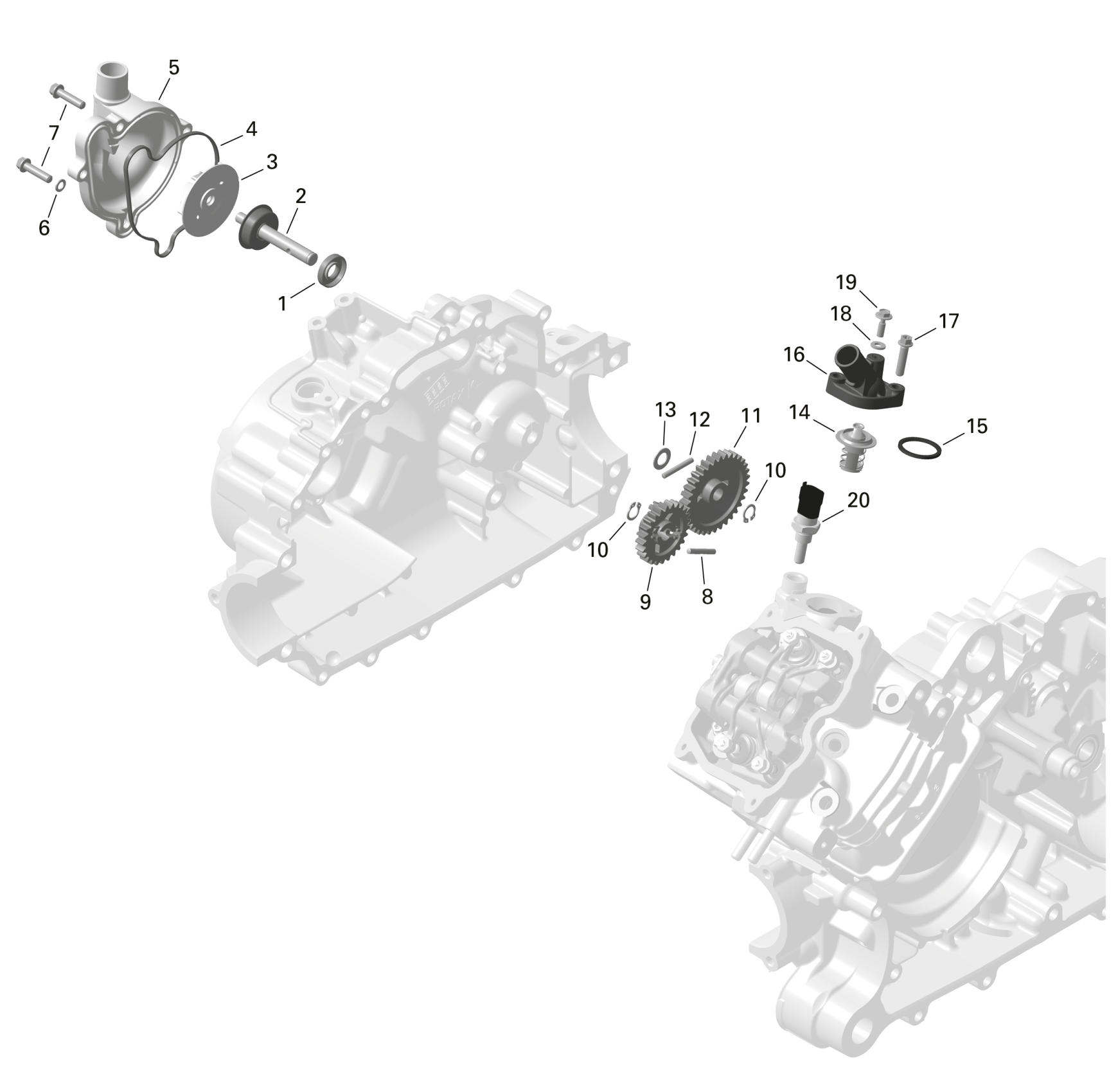

Can-Am Outlander 450 EFI - XU - (3NPB) - CE, 2023 ROTAX - Engine Cooling Diagram

#

Description
Price

1

Oil Seal

420650315

$11.65

2

Waterpump Shaft Ass'y

420620171

$73.99

3

Water Impeller

420222505

$19.99

4

Gasket

420630270

$11.05

5

Water Pump Housing

420222680

$62.49

6

Seal Washer

420230415

$1.79

7

Torx Flange Screw M6 X 25

420440234

$3.06

8

Needle Pin

420232431

$4.39

9

Idle Gear, 25 Teeth

420635191

$17.05

10

Circlip

504152282

$3.17

11

Circlip

504152282

$3.17

12

Idle Gear, 34 Teeth

420635620

$17.05

13

Needle Pin

420232431

$4.39

14

Thrust Washer

420827590

$4.01

15

Thermostat 65° With Gasket Ass'y | Includes 42 to 43

420222494

$53.99

16

Thermostat Gasket

420650300

$8.57

17

Thermostat Cover

420222696

$3.17

18

Torx Flange Screw M6 X 25

420440234

$3.06

19

Gasket Ring

420650255

$4.12

20

Screw M5 X 16

420441621

$3.17

21

Temperature Sensor

278002895

$39.99
