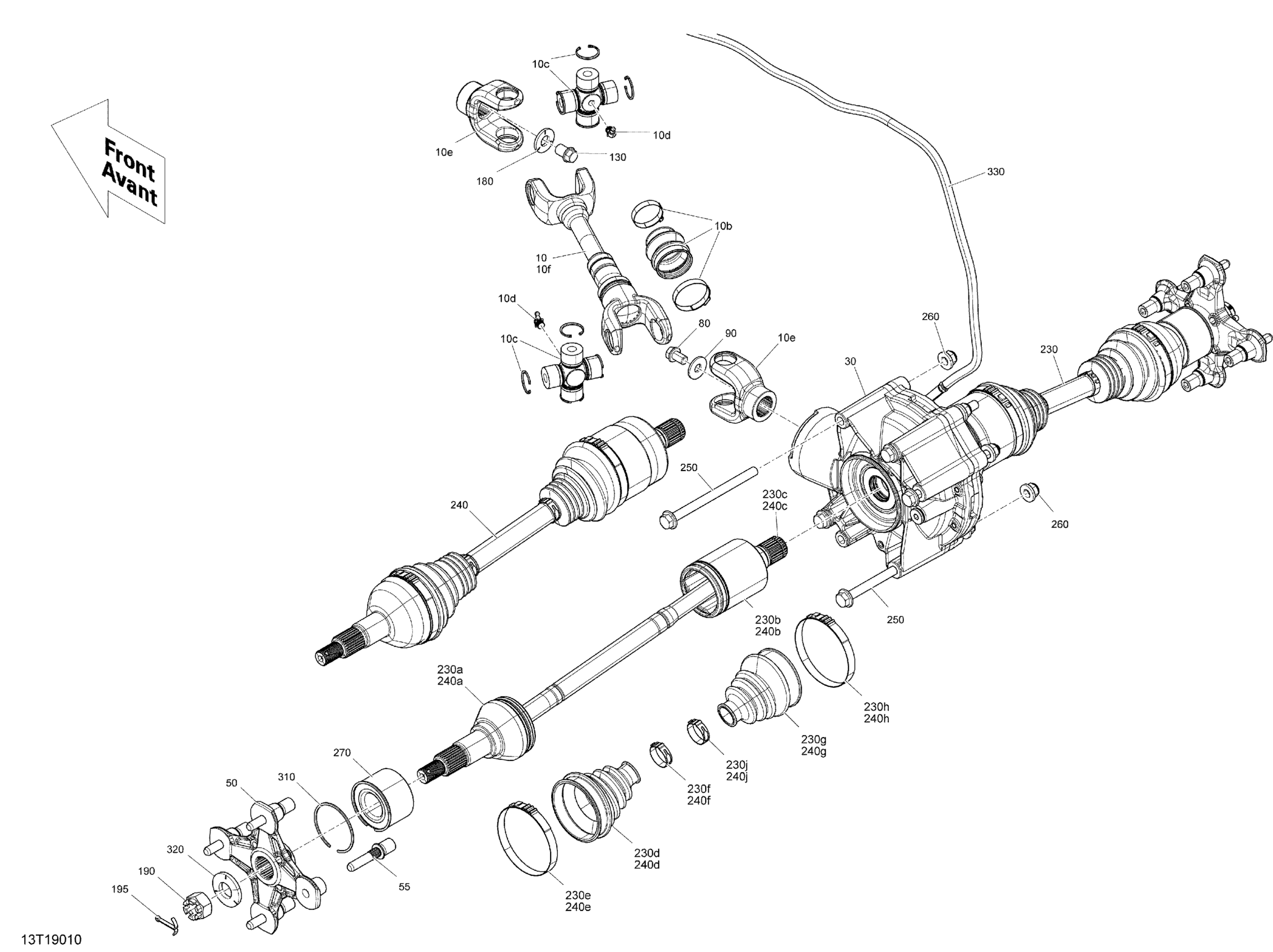

Can-Am Outlander 450 EFI - 2019 Rear Drive - Outlander - 450 Diagram

#

Description
Price

10

Rear Propeller Shaft Ass'y Kit

703500932

$259.49

10b

Rubber Boot

715900118

$14.30

10c

Universal Joint Ass'y | T3

703500846

$59.49

10d

Grease Fitting | T3

715900295

$5.24

10e

Fixe Yoke

715900439

$24.99

10f

Wear Ring | 4X4

705400036

$26.49

30

Final Drive Unit | Includes 30 to 30u

703501019

$932.49

50

Wheel Hub

705501900

$132.49

55

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

80

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

90

Flat Washer M10 | 4X4

250200014

$1.49

130

Hex Flange Screw M12 X 16

250001039

$2.11

180

Conical Spring Washer M12

250200005

$3.27

190

Hex. Flange Castellated Nut M18

232291413

$7.98

195

Cotter Pin

250400071

$2.11

230

RH Half Shaft Ass'y

705501897

$243.99

230a

CV Joint

705401344

$259.49

230b

Plunging Joint

715900304

$121.49

230c

Circlip

705501781

$6.50

230d

Boot Kit, Wheel Side

705401345

$42.49

230e

Oetiker Clamp

715900282

$5.29

230f

Oetiker Clamp, Small

715900283

$5.29

230g

Boot Kit, Differential Side

705401346

$42.49

230h

Oetiker Clamp, Large

715900284

$5.29

230j

Oetiker Clamp, Small

715900261

$5.29

240

LH Half Shaft Ass'y

705501898

$243.99

240a

CV Joint

705401344

$259.49

240b

Plunging Joint

715900304

$121.49

240c

Circlip

705501781

$6.50

240d

Boot Kit, Wheel Side

705401345

$42.49

240e

Oetiker Clamp

715900282

$5.29

240f

Oetiker Clamp, Small

715900283

$5.29

240g

Boot Kit, Differential Side

705401346

$42.49

240h

Oetiker Clamp, Large

715900284

$5.29

240j

Oetiker Clamp, Small

715900261

$5.29

250

Hex. Flange Screw M10 X 135

250001041

$5.59

260

Hex. Flange Elastic Nut M10

233201436

$2.11

270

Ball Bearing

293350150

$52.99

310

Circlip

293370019

$4.68

320

Conical Spring Washer M18

250200171

$7.65

330

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49
