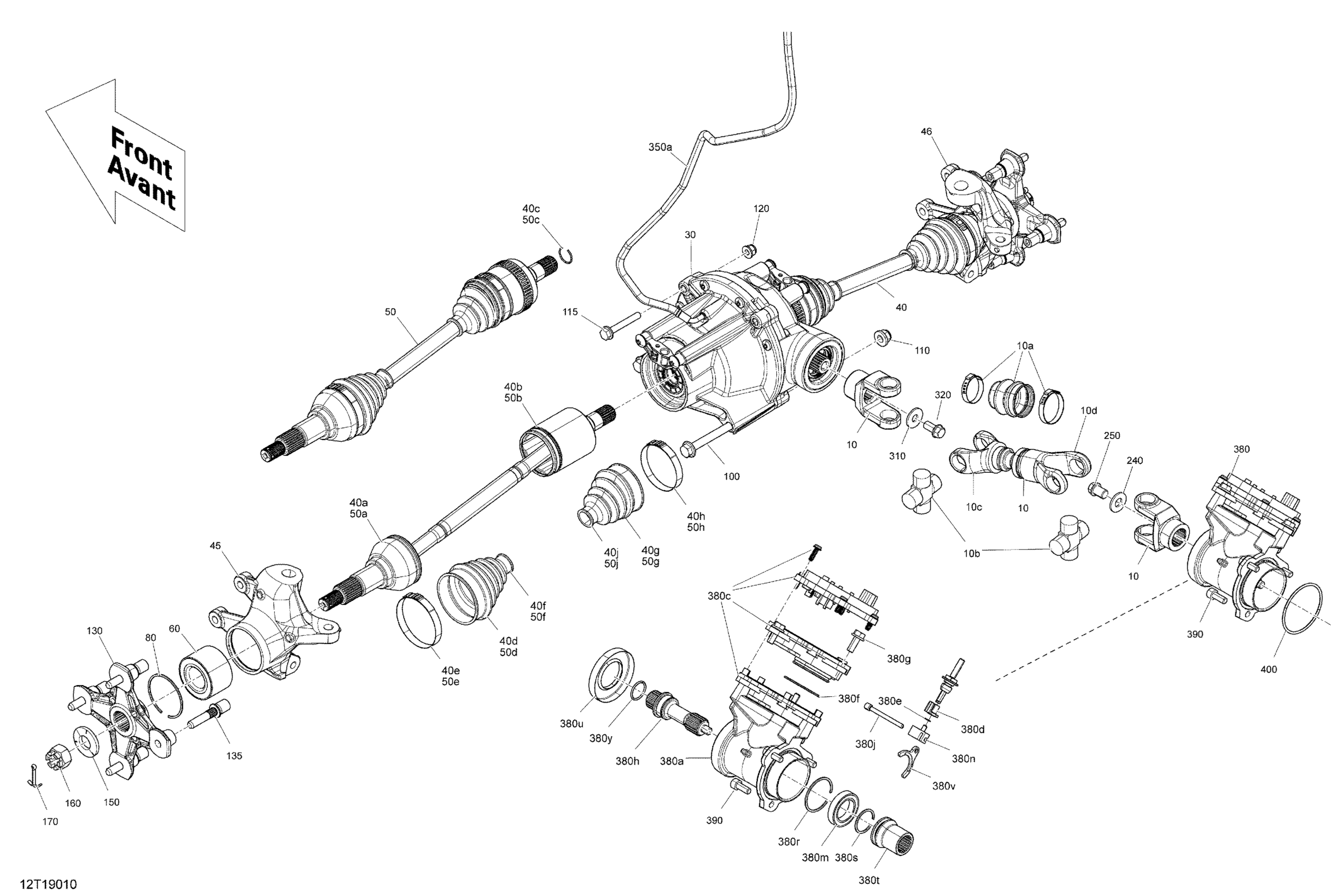

Can-Am Outlander 450 EFI - 2019 Front Drive Diagram

#

Description
Price

10

Front Drive Axle

705403293

$179.99

10a

Rubber Boot

715900118

$14.30

10b

U-Joint Cross Kit | Engine 450

715900435

$78.49

10c

Fixed Yoke Joint

715900497

$59.49

10d

Yoke Joint

715900498

$24.99

30

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,789.99

40

RH Front - Premium CV Axle

705401428

$243.99

40a

CV Joint

715900297

$259.49

40b

RH Plunging CV Joint

715900300

$259.49

40c

Circlip Joint | Not shown

705401349

$6.50

40d

CV Boot Kit, Wheel Side

715900298

$42.49

40e

Oetiker Clamp, Large

715900262

$10.33

40f

Oetiker Clamp, Small

715900317

$11.58

40g

CV Boot Kit, Differential Side

715900299

$42.49

40h

Oetiker Clamp, Large

715900318

$11.58

40j

Oetiker Clamp, Small

715900317

$11.58

45

LH Knuckle

705403307

$179.99

46

RH Knuckle

705403308

$179.99

50

LH Front - Premium CV Axle

705401429

$243.99

50a

CV Joint

715900297

$259.49

50b

LH Plunging CV Joint

715900301

$259.49

50c

Circlip Joint | Not shown

705401349

$6.50

50d

CV Boot Kit, Wheel Side

715900298

$42.49

50e

Oetiker Clamp, Large

715900262

$10.33

50f

Oetiker Clamp, Small

715900317

$11.58

50g

CV Boot Kit, Differential Side

715900299

$42.49

50h

Oetiker Clamp, Large

715900318

$11.58

50j

Oetiker Clamp, Small

715900317

$11.58

60

Ball Bearing

293350150

$52.99

80

Circlip

293370019

$4.68

100

Hex. Flange Screw M10 X 125

230602546

$7.41

110

Hex. Flange Elastic Nut M10

233201436

$2.11

115

Hex. Flange Screw M8 X 55

207685544

$5.39

120

Hex. Flange Elastic Nut M8

233281414

$1.47

130

Wheel Hub

705501900

$132.49

135

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

150

Conical Spring Washer M18

250200171

$7.65

160

Hex. Flange Castellated Nut M18

232291413

$7.98

170

Cotter Pin

250400071

$2.11

240

Flat Washer M12

250200102

$2.11

250

Hex Flange Screw M12 X 16

250001039

$2.11

310

Flat Washer M10 | 4X4

250200014

$1.49

320

Hex Flange Screw M10 X 20 S.Grip

250001046

$4.44

350a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

380

Not Available As Spare Part - Friction Washer

Unavailable

380a

Machined Housing

705402360

$164.99

380c

Actuator Ass'y

705402090

$429.99

380d

Fork | 4X4

705400274

$18.99

380e

Circlip | 4X4

293370042

$3.17

380f

O-Ring

293300117

$4.44

380g

Hex. Flange Screw M8 X 20, Scotch Grip | 4X4

250000137

$3.28

380h

Idler Shaft Gear

705401509

$105.49

380j

Pressure Screw M8 X 8 | 4X4

206580890

$1.69

380k

Dowell Pin | 4X4

250400025

$7.73

380m

Ball Bearing | 4X4

705400249

$25.99

380n

Slider | 4X4

705402139

$46.99

380r

Circlip | 4X4

293370029

$5.19

380s

Circlip | 4X4

293370030

$2.89

380t

Coupling Sleeve | 4X4

705400389

$31.99

380u

Oil Seal

293250348

$20.49

380v

Shifter Lever Plate | 4X4

705401553

$20.99

380y

O-Ring

293300179

$2.51

390

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.70

400

O-Ring

293300091

$7.51
