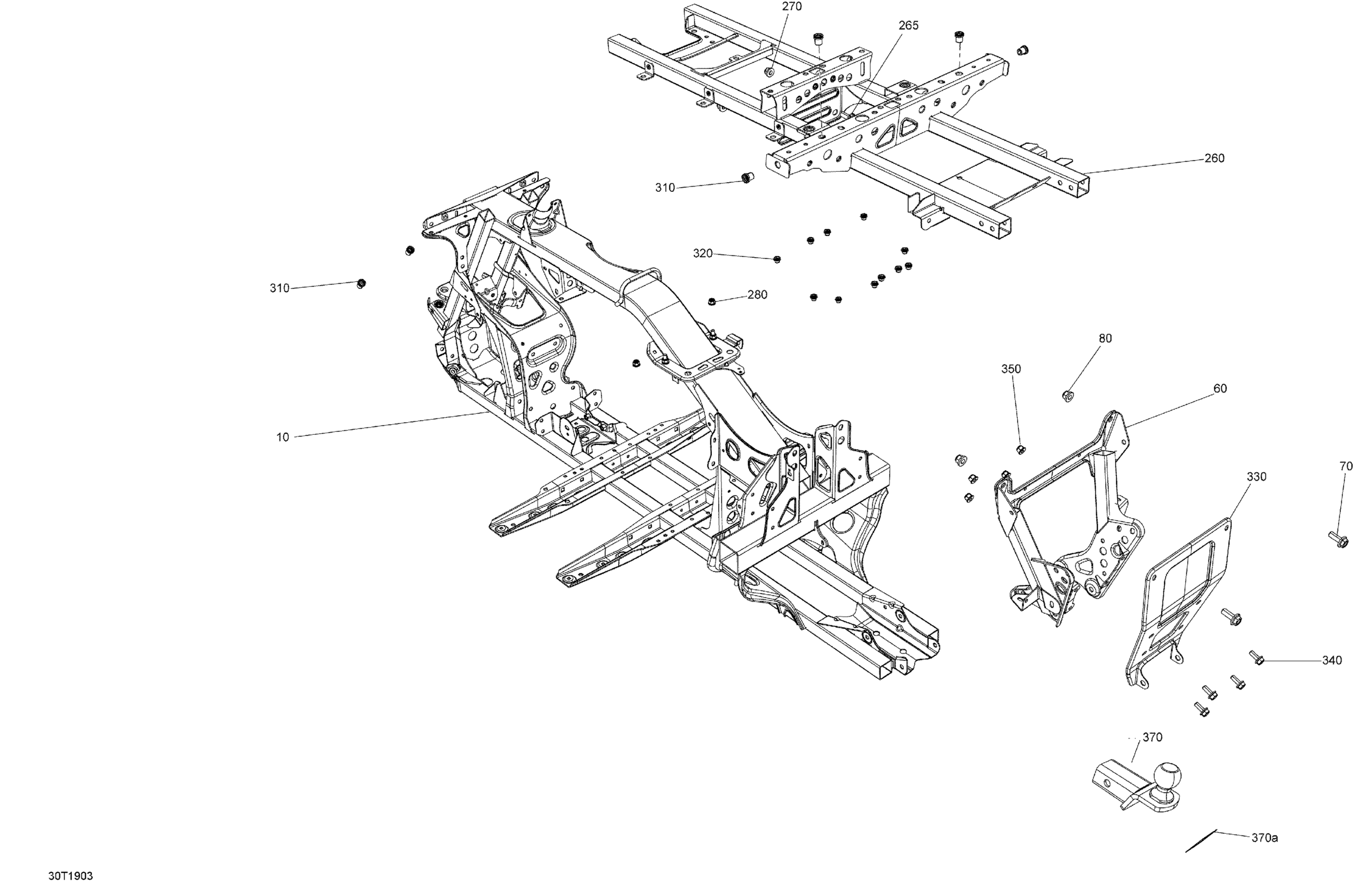

Can-Am Outlander 1000 EFI - T3, 2019 Frame Diagram

#

Description
Price

10

Chassis

705210815

$1,049.99

60

Rear Pillar

705210818

$69.99

70

Hex. Flange Screw M10 X 25

207602546

$2.11

80

Hex. Flange Elastic Nut M10

233201436

$2.11

260

Chassis Extension

705210821

$159.99

265

Hex. Flange Screw M10 X 25

207602546

$2.11

270

Hex. Flange Elastic Nut M10

233201436

$2.11

280

Hex. Flange Elastic Nut M8

233281414

$1.47

310

Insert Half Hex Body M8 x 1.25

293450307

$2.69

320

Insert Half Hex Body M6 x 1.0

250100199

$3.19

330

Rear Support

705203301

$43.99

340

Hex. Flange Screw M8 X 20

207682046

$1.90

350

Hex. Elastic Flange Nut M8

233281416

$1.48

360

Trailer Hitch

715005186

$128.49

370

Trailer Hitch Kit | Includes 7 To 11

705210320

$122.99

370a

Hitch Pin

705204490

$52.99

390

Trailer connector Support

705206416

$6.49
