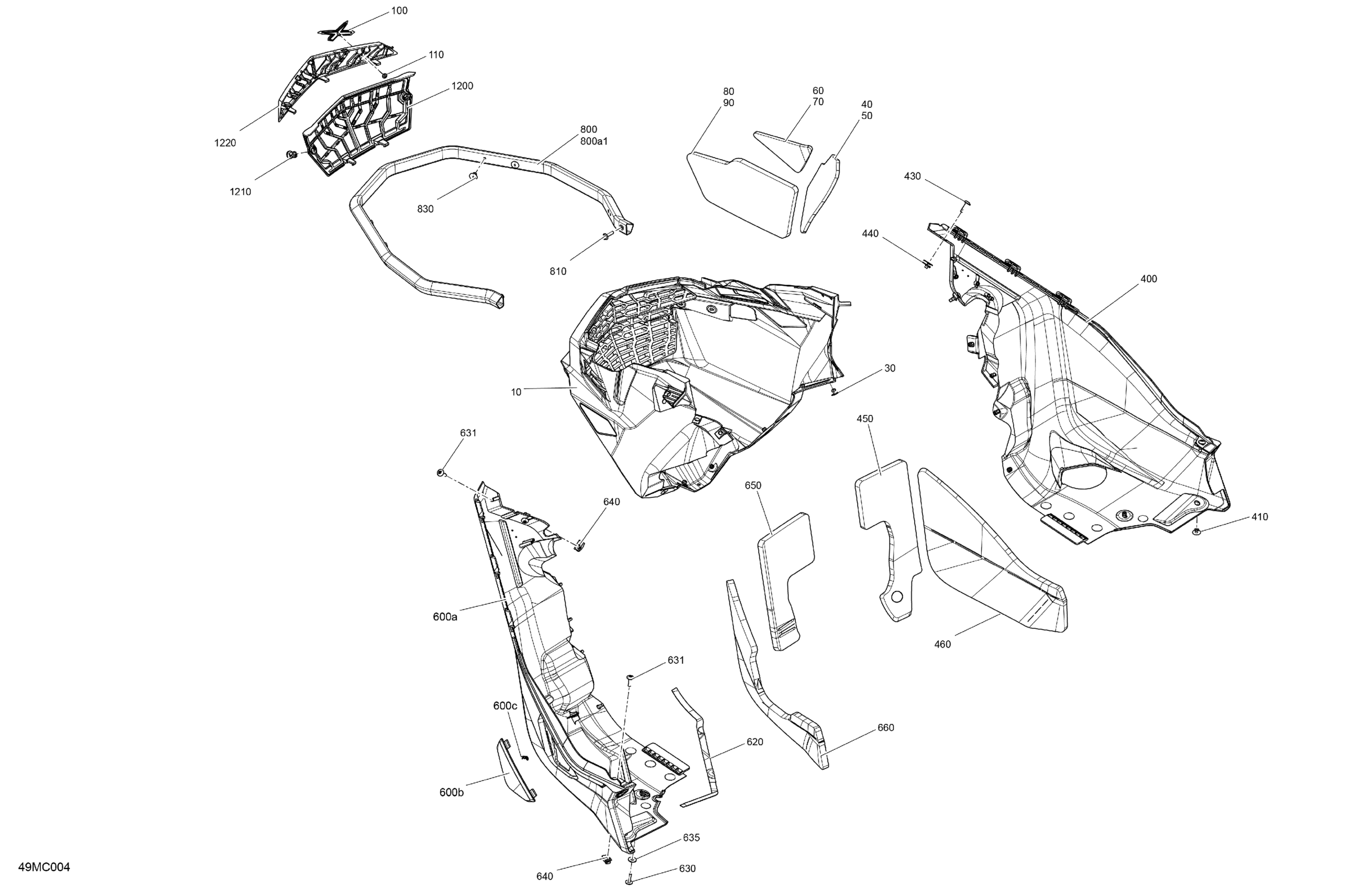

Ski-Doo 002 - MXZ 600R E-TEC - XRS - Europe, 2023 07- Body - Bottom Pan Diagram

#

Description
Price

10

Front Bottom Pan

502007919

$134.99

30

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

40

RH Upper Bottom Pan Foam

502007788

$18.99

50

LH Upper Bottom Pan Foam

502007789

$18.99

60

RH Bottom Pan Central Foam

502007545

$9.59

70

LH Bottom Pan Central Foam

502007546

$13.99

80

RH Lower Bottom Pan Foam

502007800

$20.99

90

LH Lower Bottom Pan Foam

502007799

$7.89

100

Emblem X

502008454

$9.99

110

Push Nut

250100206

$1.01

400

RH Bottom Pan

502007929

$109.99

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

430

Torx Truss M5 X 20

250000586

$4.44

440

Panel Nut M5 X 0.8

250000958

$4.23

450

RH Bottom Pan Upper Foam

502007547

$11.99

460

RH Bottom Pan Lower Foam

502007548

$11.99

600a

LH Bottom Pan

502007675

$129.99

600b

Bottom Pan Door

502007676

$38.99

600c

Hairpin Cotter

269800431

$1.29

620

Neoprene Seal (1PAC=3M)

219704364

$27.49

630

Torx Truss M5 X 20

250000586

$4.44

631

Torx Truss M5 X 20

250000586

$4.44

635

Washer M5

250200025

$0.74

640

Panel Nut M5 X 0.8

250000958

$4.23

650

LH Bottom Pan Upper Foam

502007549

$13.99

660

LH Bottom Pan Lower Foam

502007550

$11.99

800

Spartan Red, Bumper | Includes 800 to 800b

502008359

$116.99

800a1

Front Bumper

502007662

$121.99

806

Horn Bracket

502008380

Unavailable

810

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

830

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1200

Belly Pan Filter

502007978

$33.99

1210

Tuflok Plastic Rivet

293150230

$1.47

1220

Upper Hood Filter

502007977

$19.99
