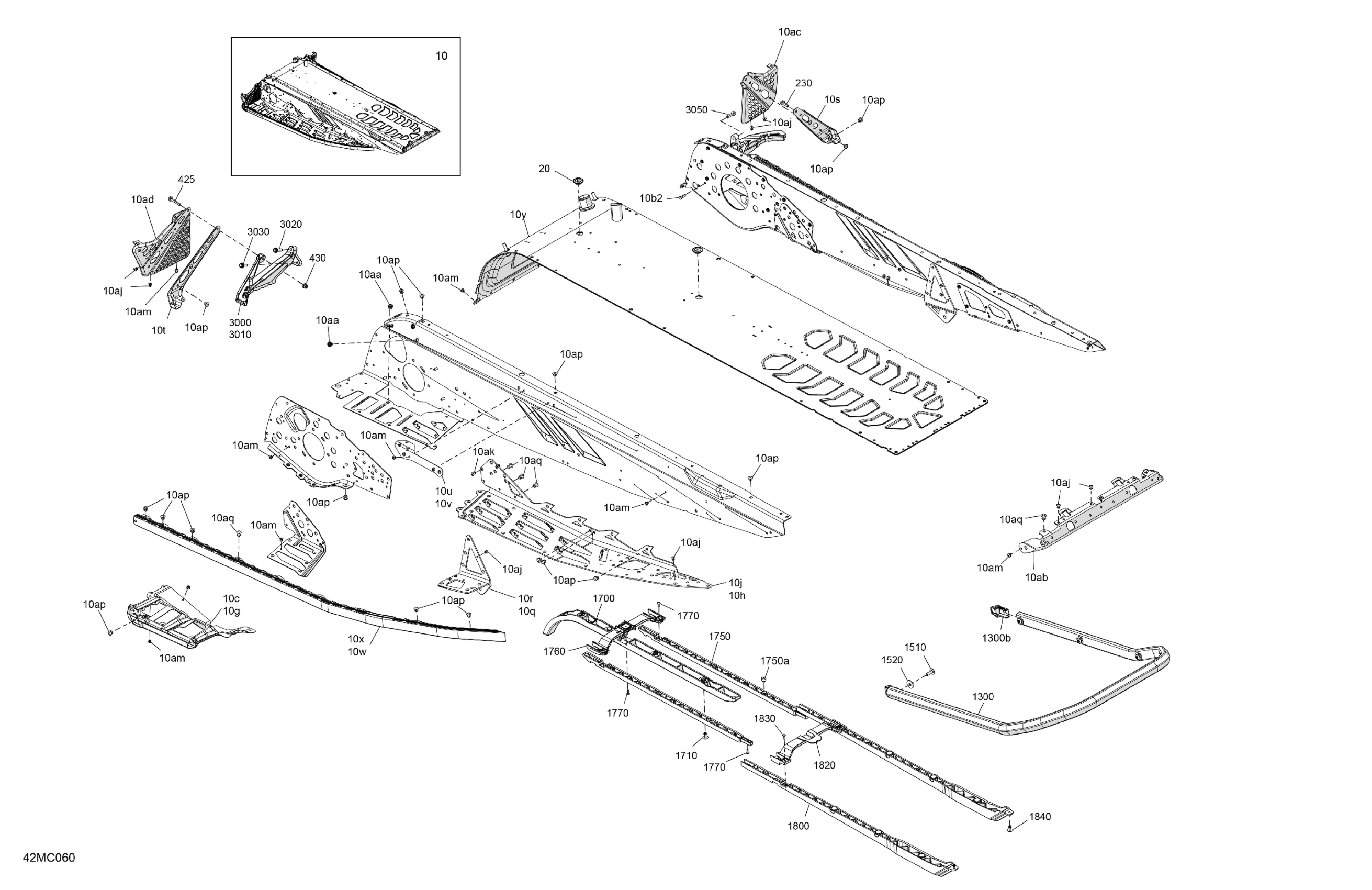

Ski-Doo MXZ 600R E-TEC - XRS - Europe, 2023 Frame - System - Rear Section Diagram

#

Description
Price

10

Platinum Silver, Chassis Tunnel Module 129" | Includes 10 to 10aq

518334194

Unavailable

10b2

Clinch Stud M6 X 20

250300027

$1.92

10c

Deep Black, LH Footrest Reinforcement

518331523

$82.28

10g

Deep Black, RH Footrest Reinforcement

518330738

$82.28

10h

RH Footrest

518332921

$41.51

10j

LH Footrest

518332306

$41.51

10q

LH Suspension Arm Anchorange

518332305

$96.12

10r

LH Suspension Arm Anchorange

518332305

$96.12

10s

Stirrup Reinforcement

518334507

$18.43

10t

Deep Black, LH Chassis Reinforcement

518332924

$18.43

10u

LH Under Chassis Reinforcement

518331744

$16.12

10v

RH Under Chassis Reinforcement

518331745

$16.89

10w

RH Roller

518329023

$180.74

10x

LH Roller

518329024

$180.74

10y

Radiator Tunnel 129 Ass'y

518334487

$692.28

10aa

Clinch Nut M6 Hexsert

605636003

$4.12

10ab

Rear Cap

518328990

$20.74

10ac

RH Footrest

518333006

$38.43

10ad

LH Footrest

518333007

$38.43

10aj

Avex Rivet

390909100

$0.29

10ak

Rivet Hucklok

293150163

$2.82

10am

Avex Rivet

390909200

$0.29

10ap

Rivet Ornit 6,5 X 12.5

293150265

$1.94

10aq

Ornit Rivet 6,5 X 14.5

293150266

$1.94

20

Black, Plug

293730052

$6.37

230

Hex. Flange Screw M6 X 20

207562056

$1.74

425

Hex. Flange Screw M6 x 35

207663546

$0.95

430

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1300

Rear Bumper | Includes 1300 to 1300b

518328745

$114.99

1300b

Cap

520001612

$8.62

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

1520

Flat Washer

224061201

$1.11

1700

Front Protector

518329982

$17.66

1710

Pop Rivet 3/16”

293150108

$1.23

1750

Rear Protector | Model With Track Ice Ripper XT 1.5in

518329989

$7.55

1750a

Rubber Bumper

293830005

$5.33

1760

Front Protective Structure

518334162

$3.40

1770

Torx Truss PT K40 x 12

250001131

$1.74

1800

Rear Protector

518329979

$7.55

1820

Central Protective Structure

518333936

$3.40

1830

Torx Truss PT K40 x 12

250001131

$1.74

1840

Pop Rivet 3/16”

293150108

$1.23

3000

Black Toe-hold

518330358

$23.05

3010

Toe Hold

518329134

$16.12

3020

Hex. Flange Screw M6 X 25

250000793

$1.74

3030

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

3050

Hex Screw Forming M6 x 25

250001124

$1.64
