Description

Price

10a1

Fixed Flange Ass'y

417224333

$209.99

10a2

Sheave Drive Pulley Sliding Ass'y | Includes 10a2 to 10a2h

417224811

$349.99

10a2b

Bushing

293250389

$21.99

10a2c

Circlip

293370137

$3.28

10a2d

Back Torque Roller

417224153

$16.99

10a2f

Torque Roller

417224154

$26.99

10a2g

Pin

417224510

$9.95

10a2h

Spring Pin 2.6MM X 20.5MM

250400101

$1.05

10a3

Spider Drive Pulley | Includes 10a3 to 10a3h

417225067

$209.99

10a3b

Stopper Spring

417224910

$10.16

10a3c

Spring Guide

417224614

$10.49

10a3d

Roller Pulley Ass'y

417224947

$35.99

10a3f

Axle - 10mm

417224204

$10.49

10a3g

Thrust Washer

417224868

$2.32

10a3h

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.21

10b

Clutch Spring

417224013

$28.49

10c

Seat Spring

417224003

$10.38

10d

Circlip

293370116

$3.28

10f1

Ramp Pulley 901

417224626

$31.99

10f2

RH Lever

417224086

$9.10

10f3

LH Lever

417224114

$5.61

10f4

Pivot 33mm

417224221

$5.79

10f5

Molded Cam

417224113

$8.89

10g

Pin Ramp

417224694

$10.49

10h

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.21

10k

VIbration Damper

417224682

$149.99

10m

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

20

Conical Spring Washer M14

250200144

$4.44

30

Pulley Drive Bolt M14 X 144

417300522

$32.99

100a

Fixed Flange Ass'y | Includes 100a to 100a6

417127595

$539.99

100a3

Pulley Roller

417127016

$24.49

100a4

Pivot Stud

417127294

$14.49

100a5

Lock Washer 8 mm

250200009

$2.11

100a6

Spring Pin

250400070

$2.00

100b

Sheave Driven Pulley Sliding Ass'y | Includes 100b to 100b3

417127659

$379.99

100b2

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

100b3

Circlip

293370049

$4.99

100c

Cam Ass'y | Includes 100c to 100c3

417127367

$148.99

100c2

Bushing ID 41mm OD 45mm X 19mm L

417127318

$19.49

100c3

Circlip

293370049

$4.99

100d

Green, Spring

417127137

$41.49

100f

Swivel Abutment

417127116

$9.39

100g

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

100h

Calibration Ass'y

415129604

$21.49

100j

Socket Screw M5 X 25

250000981

$1.68

100k

Flat Washer M5

234051410

$0.53

100m

Elastic Stop Nut M5

232551414

$0.87

100n

Washer

417127155

$8.26

100p

Ball Bearing

504152574

$35.99

200

Drive Belt

417300551

$179.99

300

Belt Guard

417300620

$73.99

330

Front Retaining Hook

417300561

$10.49

340

Avex Rivet

390909200

$0.30

360

CVT Duct Cooling

417300569

$28.99

370

Pop Rivet 3/16"

293150103

$0.55

500

Rear Guard Support

417300594

$14.49

505

Hex. Flange Elastic Nut M6

233261466

$2.00

510

Torx Screw M6 X 16

250000755

$0.87

520

Hair Pin

114045200

$11.11

990

Pivot 26mm

417224220

$5.79

991

Pivot 33mm

417224221

$5.79

992

Pivot 38mm

417224222

$5.79

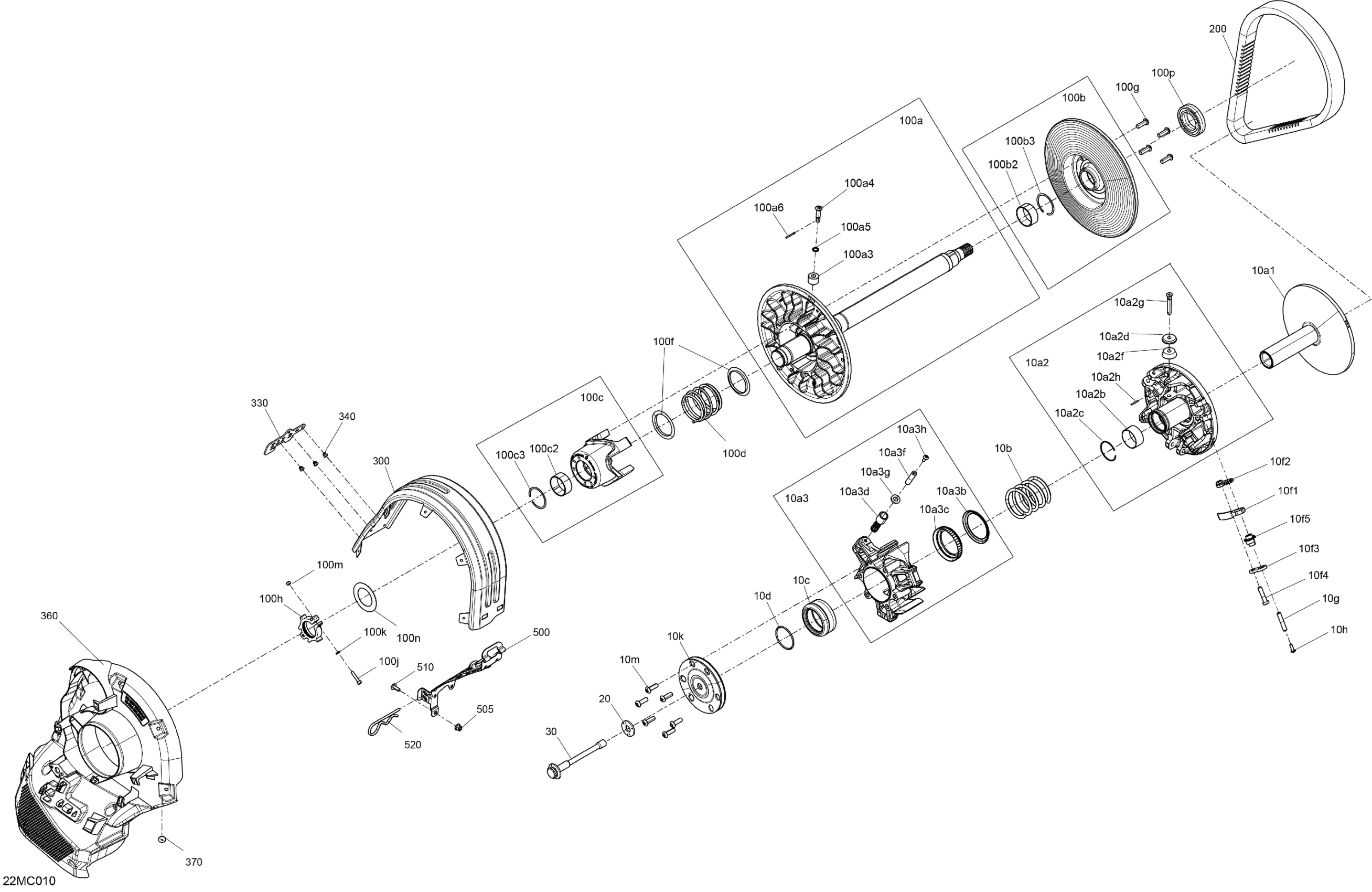

Ski-Doo MXZ 600R E-TEC - XRS - Europe, 2023 Drive - Pulley Diagram

Fixed Flange Ass'y

Sheave Drive Pulley Sliding Ass'y | Includes 10a2 to 10a2h

Bushing

Circlip

Back Torque Roller

Torque Roller

Pin

Spring Pin 2.6MM X 20.5MM

Spider Drive Pulley | Includes 10a3 to 10a3h

Stopper Spring

Spring Guide

Roller Pulley Ass'y

Axle - 10mm

Thrust Washer

Torx-Truss M/S M5 X 14 S.Grip

Clutch Spring

Seat Spring

Circlip

Ramp Pulley 901

RH Lever

LH Lever

Pivot 33mm

Molded Cam

Pin Ramp

Torx-Truss M/S M5 X 14 S.Grip

VIbration Damper

Button Head Torx Screw M8 X 25 S.Gr

Conical Spring Washer M14

Pulley Drive Bolt M14 X 144

Fixed Flange Ass'y | Includes 100a to 100a6

Pulley Roller

Pivot Stud

Lock Washer 8 mm

Spring Pin

Sheave Driven Pulley Sliding Ass'y | Includes 100b to 100b3

Bushing ID 41mm OD 45mm X 19mm L

Circlip

Cam Ass'y | Includes 100c to 100c3

Bushing ID 41mm OD 45mm X 19mm L

Circlip

Green, Spring

Swivel Abutment

Button Head Torx Screw M8 X 25 S.Gr

Calibration Ass'y

Socket Screw M5 X 25

Flat Washer M5

Elastic Stop Nut M5

Washer

Ball Bearing

Drive Belt

Belt Guard

Front Retaining Hook

Avex Rivet

CVT Duct Cooling

Pop Rivet 3/16"

Rear Guard Support

Hex. Flange Elastic Nut M6

Torx Screw M6 X 16

Hair Pin

Pivot 26mm

Pivot 33mm

Pivot 38mm
