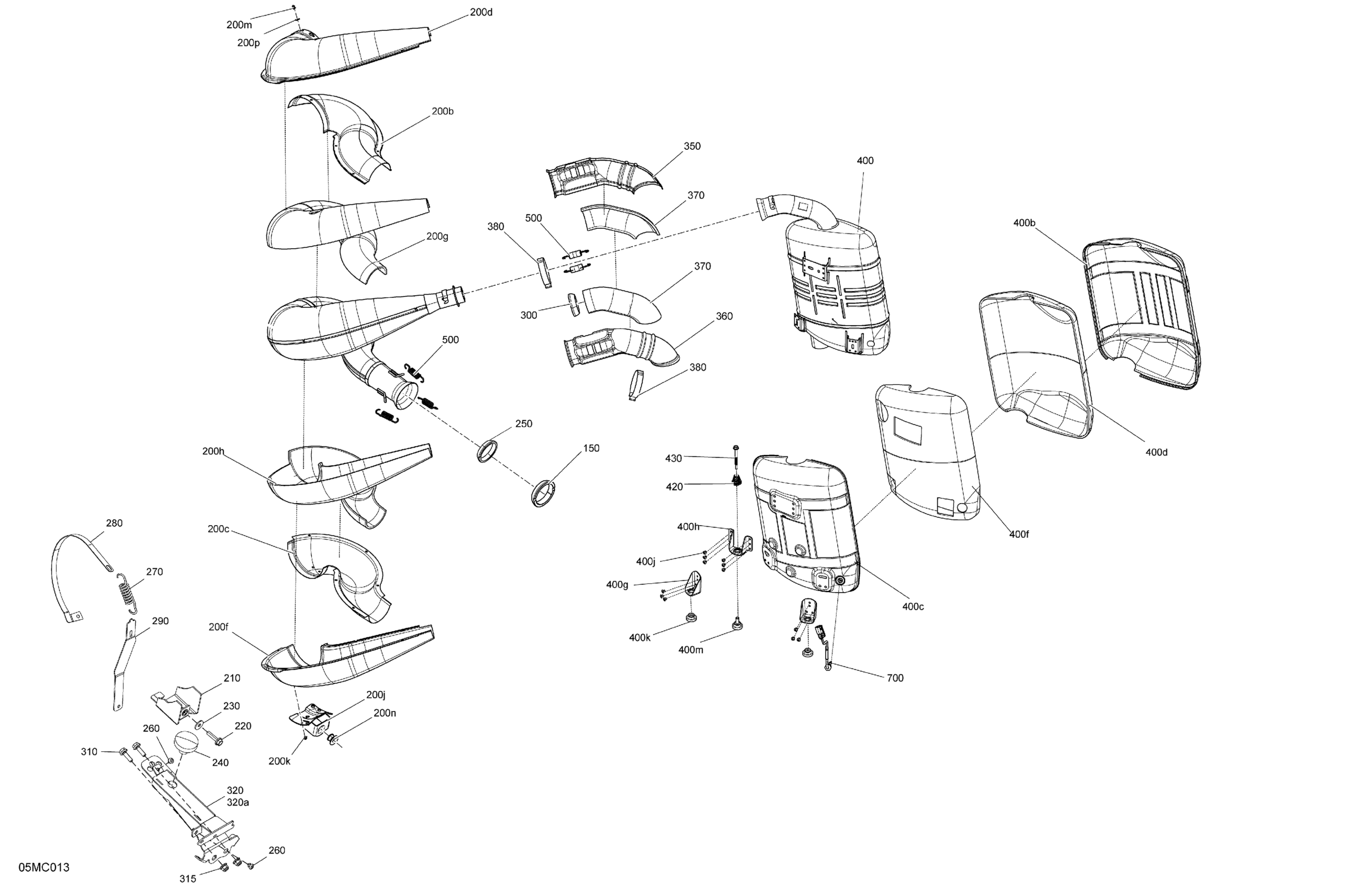

Ski-Doo 002 - MXZ 600R E-TEC - XRS - Europe, 2023 02- Engine - Exhaust Diagram

Description

Price

150

Exhaust Gasket

514053487

$26.49

200b

Shell

514056281

$39.99

200c

Shell

514056282

$36.99

200d

Rear Upper Aluminum Shell

514055859

$82.99

200f

Rear Lower Aluminum Shell

514056141

$82.99

200g

Insulated Wool

514055715

$20.99

200h

Glass Wool

514056352

$7.90

200j

Plate

514055844

$5.90

200k

Avex Rivet

390909200

$0.30

200m

Avex Rivet

390909200

$0.30

200n

Rubber

514055632

$2.21

200p

Washer 3/16

514055537

$1.01

210

Bracket

514056267

Unavailable

220

Hex. Flange Screw M6 X 25

207562544

$1.69

230

Flat Washer 6 mm

234062410

$0.77

240

Rubber Bumper

514053654

$50.99

250

Seal

514055965

$19.49

260

Avex Rivet

390909200

$0.30

270

Spring

514055198

$6.35

280

Bracket

514056295

$3.72

290

Bracket

514056273

Unavailable

300

Exhaust Gasket

514055294

$24.99

310

Hex. Flange Screw M6 X 20

207662044

$2.00

315

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

320

Exhaust Support | Includes 320a to 320a1a

514056255

Unavailable

320a

Exhaust Support

514056256

Unavailable

320a1a

Clinching Nut Hexert M8 | Model-T3

250100065

Unavailable

350

Front Shield

514055283

$40.99

360

Rear Shield

514055284

$40.99

370

Wool

514055285

$4.59

380

Clip

514056035

$16.18

400

Muffler Ass'y | Includes 400 to 400m

514056198

$741.99

400b

RH Deflector

514055980

$58.99

400c

LH Deflector

514056199

$63.99

400d

Wool

514055201

$19.99

400f

LH Wool

514056021

$8.29

400g

Support

514056054

$6.39

400h

Support

514056055

$6.39

400j

Pop Rivet 3/16"

390402200

$0.35

400k

Stopper

514055203

$20.49

400m

Stopper Ass'y

514056138

$13.22

420

Spring

514055282

$6.35

430

Hex. Flange Screw M6

250000926

$1.01

500

Spring

514055198

$6.35

700

Exhaust Temperature Sensor

514055888

$149.99
