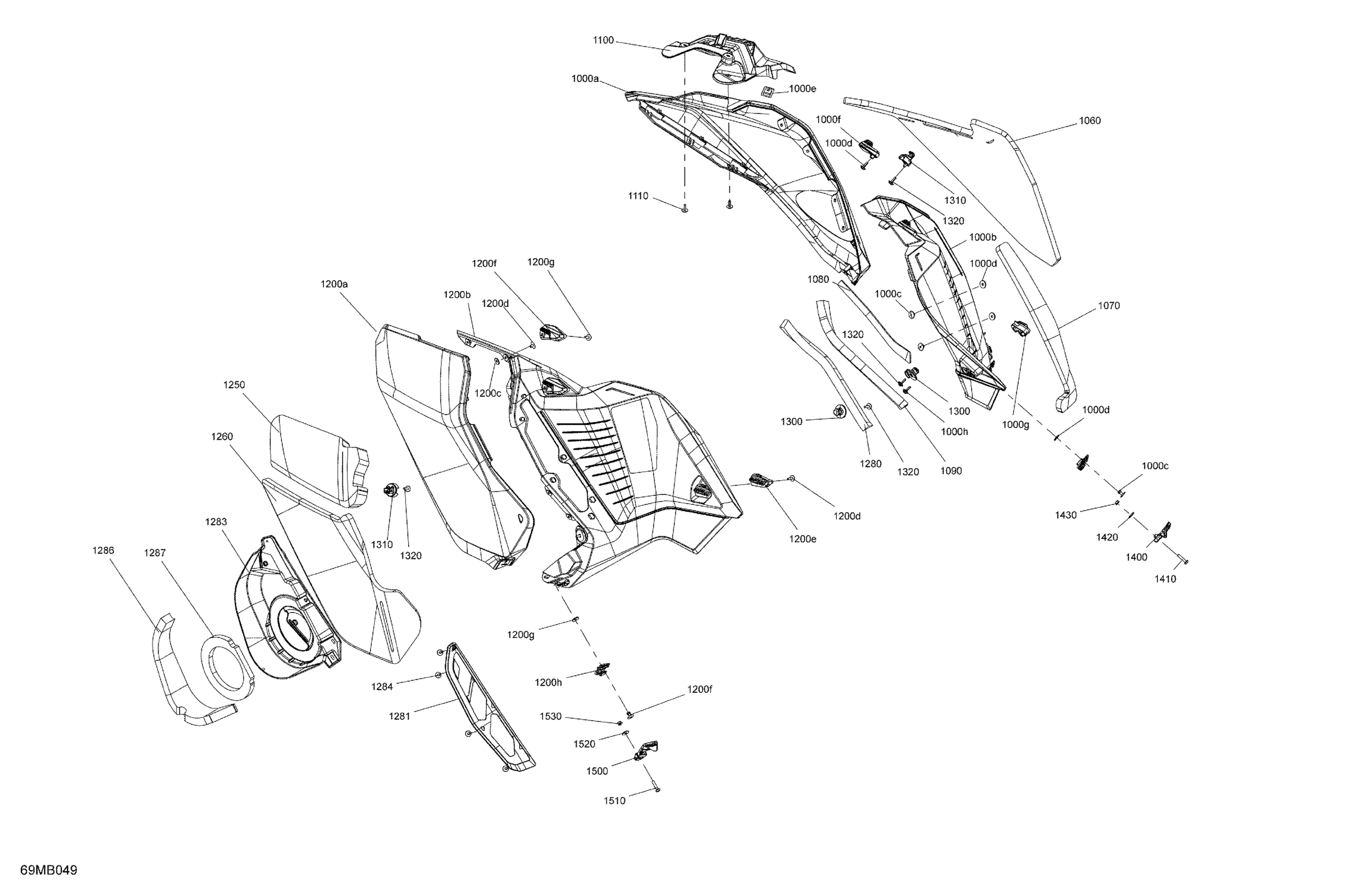

Ski-Doo MXZ 600R E-TEC - XRS - Europe, 2022 Body - Side Panels Diagram

#

Description
Price

1000a

Silver, RH Panel | Includes 1000a to 1000a.a

517306367

$191.76

1000b

Deep Black, RH Panel Trim

517305861

$163.40

1000c

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

1000d

Washer

517124300

$0.18

1000e

Rivet Plate

517305109

$4.52

1000f

RH Rear Latch

517305773

$13.79

1000g

RH Front Latch

517305979

$13.46

1000h

Screw M4 X 16

250000725

$3.30

1060

RH Central Panel Foam

517305767

$41.76

1070

RH Rear Panel Foam

517306116

$10.15

1080

Rubber Sheet

517306262

$26.09

1090

RH Rear Panel Foam

517306480

$9.82

1100

RH Grille

517307546

$28.33

1110

Screw M4 X 16

250000725

$3.30

1200a

Silver, LH Panel | Includes 1200a to 1200a.a

517306369

$191.76

1200b

Deep Black, LH Panel Trim

517306935

$164.90

1200c

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

1200d

Washer

517124300

$0.18

1200e

LH Rear Latch

517305774

$13.79

1200f

LH Front Latch

517305980

$13.79

1200g

Screw M4 X 16

250000725

$3.30

1200h

LH Hook

517306312

$10.49

1250

LH Front Panel Foam

517305769

$16.39

1260

LH Central Panel Foam

517305770

$25.34

1280

LH Rear Panel Foam

517306479

$9.82

1281

LH Grille

517306937

$14.24

1283

Duct

517307283

$14.90

1284

Screw M4 X 16

250000725

$3.30

1286

Duct Foam

517306960

$13.22

1287

Foam

517307639

$5.33

1300

Rear Stud

517305985

$14.55

1310

Front Stud

517305988

$14.90

1320

Screw M4 X 16

250000725

$3.30

1400

RH Lower Latch

517306309

$15.64

1410

Torx Screw M5 X 25

250000762

$2.00

1420

Washer

517124300

$0.18

1430

Hex. Flange Nut M5

233151414

$0.52

1500

LH Lower Latch

517306310

$15.64

1510

Torx Screw M5 X 25

250000762

$2.00

1520

Washer

517124300

$0.18

1530

Hex. Flange Nut M5

233151414

$0.52
