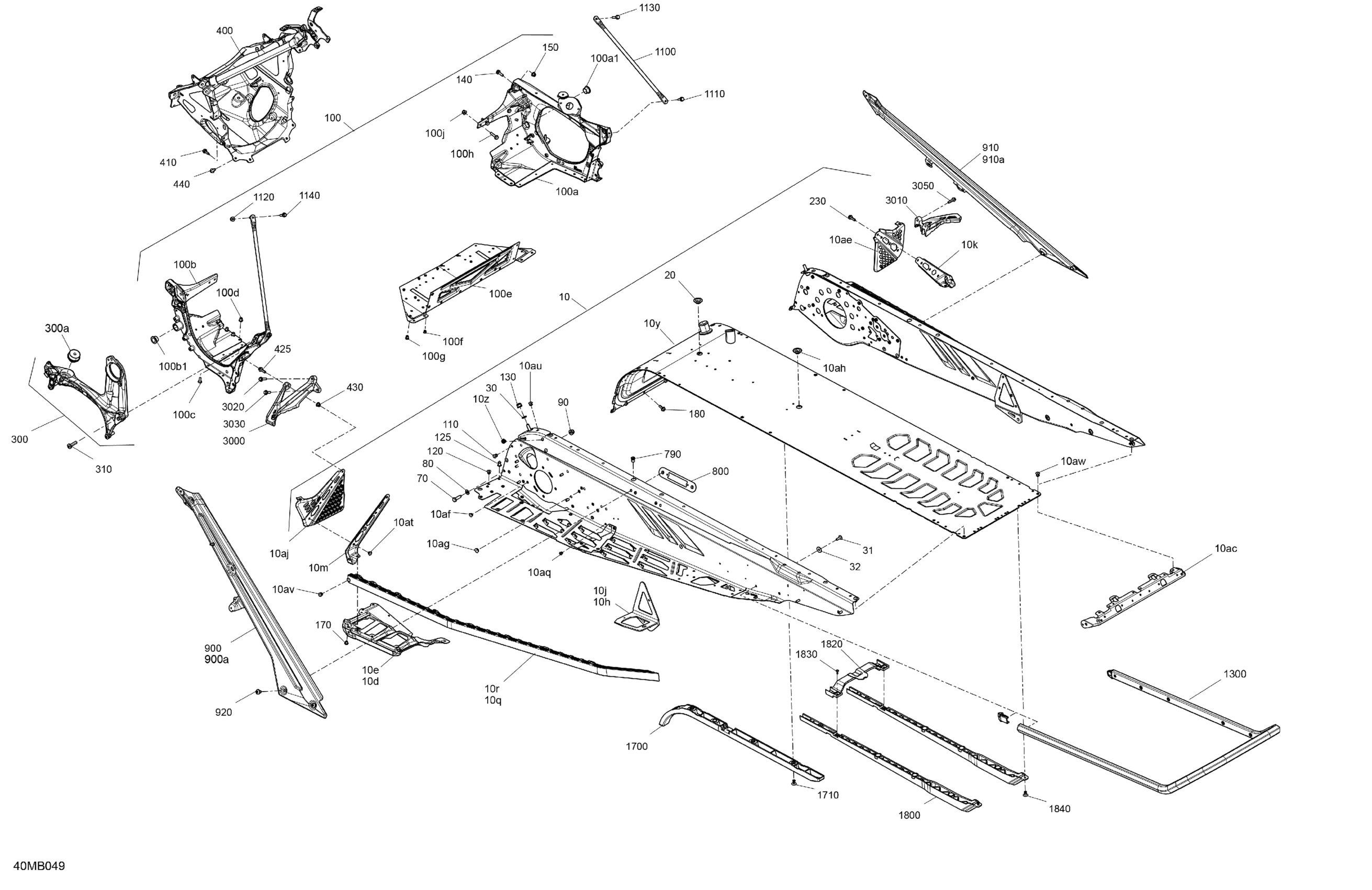

Ski-Doo MXZ 600R E-TEC - TNT - 2022 Frame - System Diagram

Deep Black, Chassis Tunnel Module 129 | Includes 10 to 10b

415130676

$3,069.20

Deep Black, RH Footrest Reinforcement

518330738

$82.28

Deep Black, LH Footrest Reinforcement

518331523

$82.28

RH Rear Suspension Support

518334387

$16.89

LH Suspension Arm Anchorange

518332305

$18.43

Stirrup Reinforcement

518331253

$18.43

Deep Black, LH Chassis Reinforcement

518332924

$18.43

RH Roller

518328451

$180.74

LH Roller

518328452

$180.74

Radiator Tunnel 129 Ass'y

518334487

$692.28

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Rear Cap

518328990

$20.74

RH Footrest

518328460

$38.43

Black, Dart 8 mm

293730047

$2.14

Black, Dart 10 mm

293730060

$4.42

Black, Plug

293730052

$6.37

LH Footrest

518333007

$38.43

Rivet Avibulb 3/16

293150203

$0.29

Hemlock Rivet, 6.5 mm

293150096

$3.17

Hemlock Rivet, 6.5 mm

293150119

$4.00

Hemlock Rivet, 6.4 mm

293150174

$6.43

Ornit Rivet 6,5 X 14.5

293150266

$1.94

Black, Plug

293730052

$6.37

Flat Washer 8 mm

234081410

$0.69

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

Flat Washer

224061201

$1.11

Hex Screw M8 X 30

250000942

$0.92

Flat Washer 8 mm

234081410

$0.69

Hex. Flange Elastic Nut M8

233281414

$1.14

Engine Chassis Module Ass'y | Includes 100 to 100j

518332685

$569.99

RH Member Ass'y | Includes 100a to 100a3

518332687

$208.43

Leg Bushing

505072690

Unavailable

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$186.89

Leg Bushing

505072690

Unavailable

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.66

Collar Huck Magna-Grip 6.4

293150149

$0.37

Bottom Plate

518332716

$34.58

Rivet Avibulb 3/16

293150203

$0.29

Insert M5 X 0.8

293450268

$1.95

Hex. Flange Screw M6 X 25

250000945

$3.61

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Ornit Rivet 6,5 X 14.5

293150266

$1.94

Hemlock Rivet, 6.4 mm

293150174

$6.43

Hemlock Rivet 6.5 mm

293150120

$7.23

Hex. Flange Elastic Nut M8

233281414

$1.14

Hex. Flange Screw M6 X 20

207662046

$1.74

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Insert M5 - 0.8

293450267

$4.22

Hex. Flange Screw M6 X 16

207661646

$1.00

Hex. Flange Screw M6 X 20

207562056

$1.74

LH Side Member Ass'y | Includes 300 to 300a

518333692

$270.74

Vibration Damper

512061516

$57.66

Screw-Pan HD.Torx M8X30

250001060

$0.65

Chassis Suspension Module

518334459

$653.05

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.00

Hex. Flange Screw M6 x 35

207663546

$0.95

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Ornit Rivet 6,5 X 14.5

293150266

$1.94

Insert

293450278

$4.09

Member Fixation Plate

518329480

$10.03

Deep Black, LH Rear Diagonal Cross Member | Includes 900 to 900a

518333358

$108.43

LH Rear Diagonal Cross Member

518333356

$108.43

Deep Black, RH Rear Diagonal Cross Member | Includes 910 to 910a

518330063

$108.43

RH Rear Diagonal Cross Member

518332559

$108.43

Pan Head Torx Screw M8 X 12

250000887

$1.56

Upper Colomn Support

518329974

$20.74

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.56

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Hex. Flange Screw M6 X 25

207662556

$3.61

Hex. Flange Screw M6 X 20

207662046

$1.74

Rear Bumper | Includes 1300 to 1300b

518328745

$114.99

Front Protector

518329982

$17.66

Pop Rivet 3/16”

293150108

$1.23

Rear Protector

518329979

$7.55

Central Protective Structure

518333936

$3.40

Torx Truss PT K40 x 12

250001131

$1.74

Pop Rivet 3/16”

293150108

$1.23

Black Toe-hold

518330358

$23.05

Toe Hold

518329134

$16.12

Hex. Flange Screw M6 X 25

250000793

$1.74

Hex. Flange Screw S.Grip M6 X 20

207562054

$1.74

Hex Screw Forming M6 x 25

250001124

$1.64
