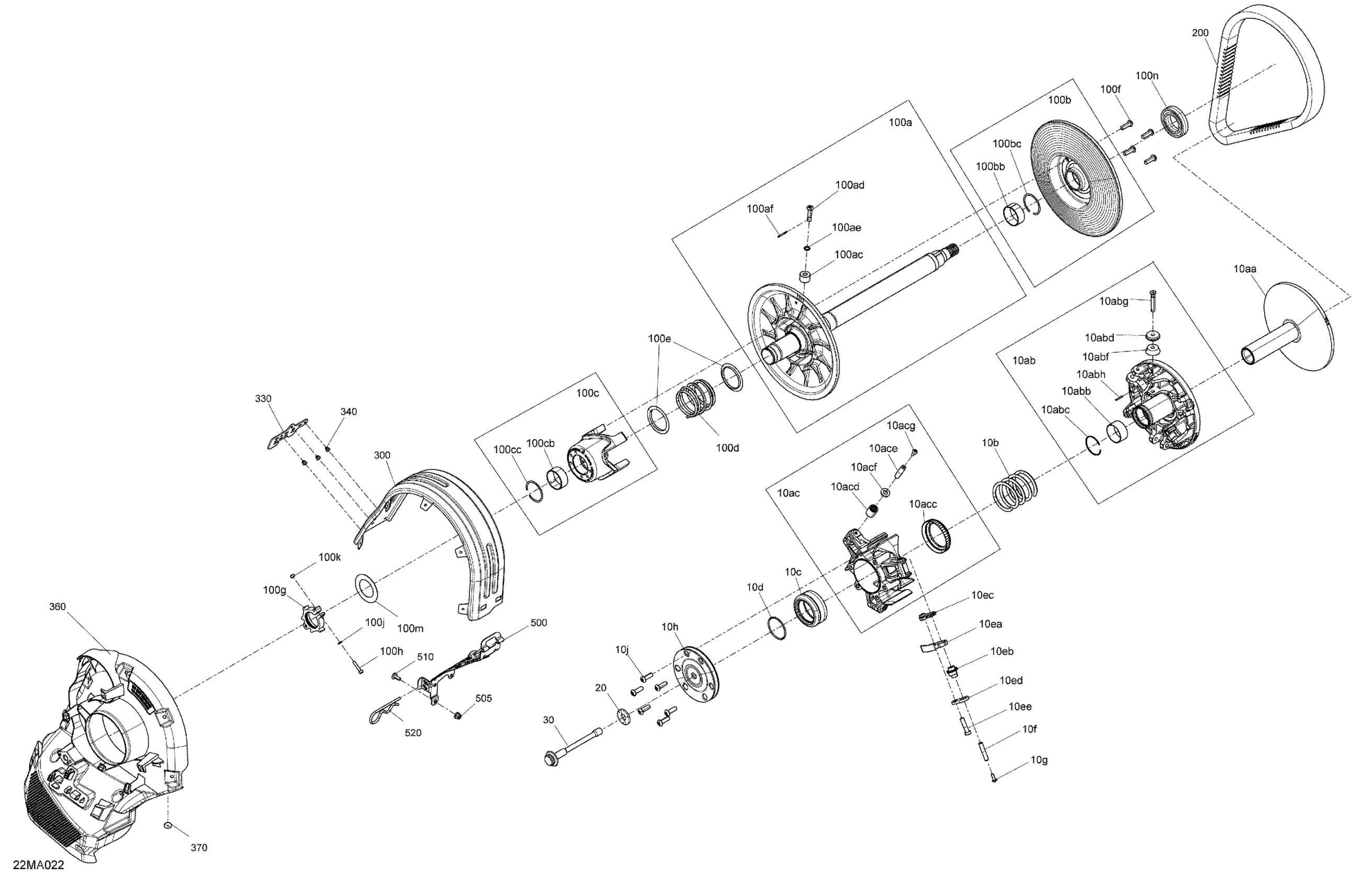

Ski-Doo MXZ 600R E-TEC - TNT - 2021 Drive - Pulley Diagram

#

Description
Price

10aa

Fixed Flange Ass'y

417224333

$170.12

10ab

Sheave Drive Pulley Sliding Ass'y | Includes 10ab to 10abg

417224610

$313.40

10abb

Bushing

293250389

$19.37

10abc

Circlip

293370137

$3.12

10abd

Back Torque Roller

417224153

$15.64

10abf

Torque Roller

417224154

$24.60

10abg

Pin

417224510

$8.94

10abh

Spring Pin 2.6MM X 20.5MM

250400101

$1.01

10ac

Spider Drive Pulley | Includes 10a3 to 10a3h

417225067

$170.12

10acc

Spring Guide

417224614

$9.43

10acd

Roller Pulley Ass'y

417224947

$34.30

10ace

Axle - 10mm

417224204

$9.43

10acf

Thrust Washer

417224868

$2.16

10acg

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.07

10b

Clutch Spring

417224013

$26.84

10c

Seat Spring

417224003

$9.87

10d

Circlip

293370116

$3.12

10ea

Ramp Pulley 901

417224626

$28.33

10eb

Molded Cam

417224113

$8.37

10ec

RH Lever

417224086

$8.42

10ed

LH Lever

417224114

$5.21

10ee

Pivot 33mm

417224221

$5.24

10f

Pin Ramp

417224694

$9.43

10g

Torx-Truss M/S M5 X 14 S.Grip

250000763

$2.07

10h

VIbration Damper

417224682

$116.39

10j

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.85

20

Conical Spring Washer M14

250200144

$4.16

30

Pulley Drive Bolt M14 X 144

417300522

Unavailable

100a

Sheave Driven Pulley Fixed Ass'y | Includes 100a to 100a6

417127632

$484.30

100ac

Pulley Roller

417127016

$22.36

100ad

Pivot Stud

417127294

$13.18

100ae

Lock Washer 8 mm

250200009

$2.00

100af

Spring Pin

250400070

$1.91

100b

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$143.25

100bb

Bushing ID 41mm OD 45mm X 19mm L

417127318

$17.13

100bc

Circlip

293370049

$4.57

100c

Cam Ass'y | Includes 100c to 100c3

417127367

$148.48

100cb

Bushing ID 41mm OD 45mm X 19mm L

417127318

$17.13

100cc

Circlip

293370049

$4.57

100d

Green, Spring

417127137

$39.52

100e

Swivel Abutment

417127116

$7.82

100f

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.85

100g

Calibration Ass'y

415129604

$22.49

100h

Socket Screw M5 X 25

250000981

$1.54

100j

Flat Washer M5

234051410

$0.51

100k

Elastic Stop Nut M5

232551414

$0.82

100m

Washer

417127155

$7.79

100n

Ball Bearing

504152574

$33.55

200

Drive Belt

417300551

$167.13

300

Belt Guard

417300479

$67.88

330

Front Retaining Hook

417300561

$10.99

340

Avex Rivet

390909200

$0.28

360

CVT Duct Cooling

417300569

$26.09

370

Pop Rivet 3/16"

293150103

$0.52

500

Rear Guard Support

417300577

$12.27

505

Hex. Flange Elastic Nut M6

233261466

$1.91

510

Torx Screw M6 X 16

250000755

$0.82

520

Hair Pin

114045200

$10.37

990

Pivot 26mm

417224220

$5.24

991

Pivot 33mm

417224221

$5.24

992

Pivot 38mm

417224222

$5.24
