Description

Price

10

Neo Yellow, Front Molded Hood

517307360

$204.99

20

Torx Screw M5 X 20

250000528

$2.11

30

Panel Nut M5 X 0.8

250000958

$4.23

35

Hex. Flange Nut M5

233151414

$0.55

36

Flat Washer

250200040

$1.90

40

Torx Screw M5 X 26

250000587

$4.44

45

Washer

250200166

$2.11

80

Foam

517308191

$15.49

100

Neo Yellow, RH Hood

517307361

$189.99

110

Screw M4 X 16

250000725

$3.49

150

Neo Yellow, LH Rear Molded Hood

517307362

$194.99

160

Screw M4 X 16

250000725

$3.49

175

Console Pad

517307744

$17.99

196

LH Hood Foam

517306002

$13.49

200

Deep Black, RH Console

517308119

$194.99

210

Flange Elastic Nut M5

233251434

$2.00

220

Torx Screw M5 X 26

250000587

$4.44

230

Panel Nut M5 X 0.8

250000958

$4.23

240

Console Nut

517306602

$13.49

250

O-Ring

706002839

$1.01

300

RH Cap

517306587

$1.39

310

LH Cap

517306588

$1.39

365

Cap

572051500

$5.89

600

Gauge Support

517308510

$37.99

620

Torx Truss M5 X 20

250000586

$4.44

630

Panel Nut M5 X 0.8

250000958

$4.23

800

Black, Low Windshield Kit | Includes 800 to 800f

860201448

$149.99

800a

Windshield 360

517306423

$159.49

800b

Deep Black, Windshield Support

517305749

$33.99

800c

Push Nut

732610072

$2.19

800d

Rubber Washer 5 mm

250200024

$2.19

800f

Gasket, Neoprene 2000Mm Long

219704476

$15.36

810

Grommet

517303756

$4.09

2400

Headlamp | Includes 2400 to 2400a

517305752

$449.99

2400a

Bulb

415130081

$41.49

2800

RH Hood Plate

517306049

$14.99

3000

LH Hood Plate

517306050

$13.49

3200

Cover Ass'y | Includes 3200 to 3200c

517307562

$21.99

3200b

Latch

517305779

$12.99

3200c

Push Nut

732610072

$2.19

3400

Trunk Ass'y | Includes 3400 to 3400b

517306058

$21.99

3400b

Seal Joint

517305157

$2.39

3800

Deep Black, Headlamp Fairing

517305746

$64.99

3810

Torx Screw M5 X 20

250000528

$2.11

3820

Panel Nut M5 X 0.8

250000958

$4.23

3830

Screw M4 X 16

250000725

$3.49

3840

Tuflok Plastic Rivet

293150230

$1.47

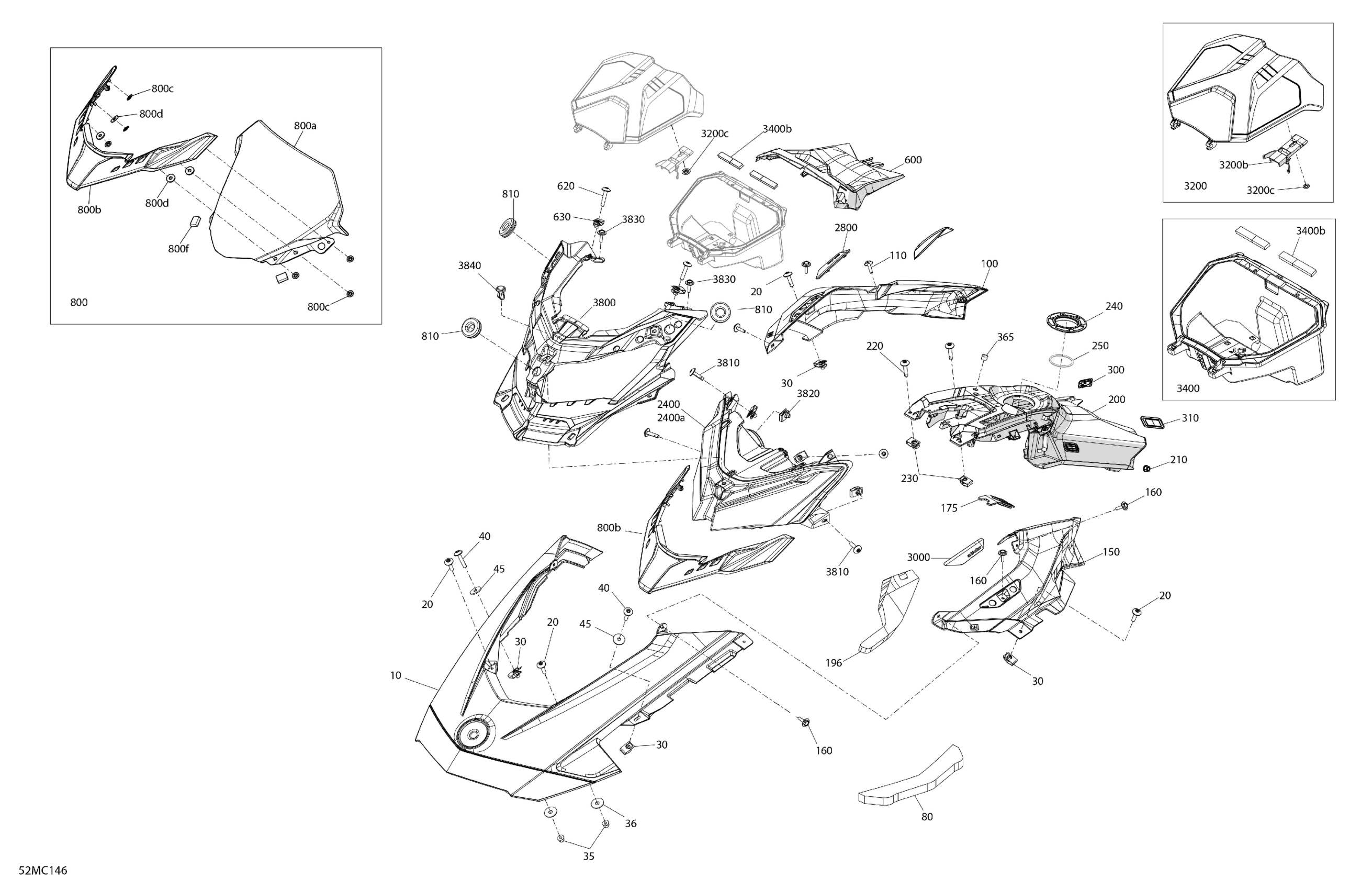

Ski-Doo 002 - MXZ 600 EFI - SPORT - (BHPC) - North America, 2023 07- Body - Hood Diagram

Neo Yellow, Front Molded Hood

Torx Screw M5 X 20

Panel Nut M5 X 0.8

Hex. Flange Nut M5

Flat Washer

Torx Screw M5 X 26

Washer

Foam

Neo Yellow, RH Hood

Screw M4 X 16

Neo Yellow, LH Rear Molded Hood

Screw M4 X 16

Console Pad

LH Hood Foam

Deep Black, RH Console

Flange Elastic Nut M5

Torx Screw M5 X 26

Panel Nut M5 X 0.8

Console Nut

O-Ring

RH Cap

LH Cap

Cap

Gauge Support

Torx Truss M5 X 20

Panel Nut M5 X 0.8

Black, Low Windshield Kit | Includes 800 to 800f

Windshield 360

Deep Black, Windshield Support

Push Nut

Rubber Washer 5 mm

Gasket, Neoprene 2000Mm Long

Grommet

Headlamp | Includes 2400 to 2400a

Bulb

RH Hood Plate

LH Hood Plate

Cover Ass'y | Includes 3200 to 3200c

Latch

Push Nut

Trunk Ass'y | Includes 3400 to 3400b

Seal Joint

Deep Black, Headlamp Fairing

Torx Screw M5 X 20

Panel Nut M5 X 0.8

Screw M4 X 16

Tuflok Plastic Rivet
