Description

Price

2500

Chalk, LH Front Door Panel

705015331

$214.99

2510

Can-Am Red, LH Front Door

705016020

$154.99

2520

Door Support

705011187

$12.99

2520a

Weld Pin 8mm X 40mm

250000913

$2.00

2525

Hex Screw Washer Head M8 X 20

207582054

$3.17

2526

Flat Washer M8

234081430

$2.11

2530

Flat Washer 8 mm, Nylon

234081100

$1.39

2540

LH Latch

705013095

$43.99

2550

Belt

293850135

$14.99

2551

Pop Rivet 3/16"

293150103

$0.55

2552

Bushing | DS 650 X

293900104

$5.50

2570

LH Latch Cover

705013535

$39.99

2580

Panel Nut M6 X 1.0

250100198

$2.11

2585

Torx Truss Screw M6 X 16

250000721

$1.69

2586

Stainless Steel Flat Washer

234062670

$2.11

2590

Pop Rivet 3/16"

293150103

$0.55

2610

Panel Nut M6 X 1.0

250100198

$2.11

2620

Torx Screw M6 X 20

250000722

$1.68

2625

Torx Screw M6 X 20, Scotch Grip

250000786

$3.17

2630

Flat Washer

224061121

$0.53

2640

Door Belt

293850129

$16.49

2650

Pop Rivet 3/16"

293150103

$0.55

2800

Chalk, RH Front Door Panel

705015332

$214.99

2810

Can-Am Red, RH Front Door | Model Gold

705016021

$154.99

2820

Door Support

705011187

$12.99

2820a

Weld Pin 8mm X 40mm

250000913

$2.00

2825

Hex Screw Washer Head M8 X 20

207582054

$3.17

2826

Flat Washer M8

234081430

$2.11

2830

Flat Washer 8 mm, Nylon

234081100

$1.39

2840

RH Latch

705013096

$43.99

2850

Belt

293850135

$14.99

2851

Pop Rivet 3/16"

293150103

$0.55

2852

Bushing | DS 650 X

293900104

$5.50

2870

RH Latch Cover

705013536

$39.99

2880

Panel Nut M6 X 1.0

250100198

$2.11

2885

Torx Truss Screw M6 X 16

250000721

$1.69

2886

Stainless Steel Flat Washer

234062670

$2.11

2890

Pop Rivet 3/16"

293150103

$0.55

2910

Panel Nut M6 X 1.0

250100198

$2.11

2920

Torx Screw M6 X 20

250000722

$1.68

2925

Torx Screw M6 X 20, Scotch Grip

250000786

$3.17

2930

Flat Washer

224061121

$0.53

2940

Door Belt

293850129

$16.49

2950

Pop Rivet 3/16"

293150103

$0.55

4030

Torx Truss Screw M6 X 25

250000807

$2.11

4040

Panel Nut M6 X 1.0

250100198

$2.11

4100

LH Central Lateral Panel

705012768

$73.99

4105

Pop Rivet 3/16"

293150103

$0.55

4200

Deep Black, RH Lower Body Panel

705017549

$73.99

4205

Pop Rivet 3/16"

293150103

$0.55

4210

Torx Screw M6 X 20

250000722

$1.68

4220

Panel Nut M6 X 1.0

250100198

$2.11

4230

Insert

705016606

$2.79

4300

LH Rear Lateral Panel

705010676

$119.99

4305

Pop Rivet 3/16"

293150103

$0.55

4400

Deep Black, RH Rear Lateral Panel

705010677

$119.99

4405

Pop Rivet 3/16"

293150103

$0.55

4410

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

7300a1

LH Door Panels

705010271

$110.99

7300a3

Door Seal

705012018

$19.99

7300b1

RH Door Panels

705010272

$110.99

7300b3

Door Seal

705012018

$19.99

7300c

Black, LH Door Frame

705012750

$129.99

7300d

Black, RH Door Frame | Includes 7300f to 7300p

705012751

$129.99

7300e1

Torx-Truss M/S M6 X 80

250000902

$2.79

7300e2

Hex. Flange Elastic Nut M6

233261494

$1.58

7300e3

Offset Washer

705202223

$4.14

7300e4

Torx Truss Screw M6 X 50

250000749

$3.17

7300e5

Stainless Steel Flat Washer

234062670

$2.11

7300e6

Neoprene Seal (1PAC=3M)

219704364

$27.49

7300e7

Neoprene Seal (1PAC=3M)

219704364

$27.49

8000

Chalk, LH Body Panel Guard

705015325

$119.99

8010

Flat washer M6

250200164

$1.01

8020

Torx Truss Screw M6 X 25

250000807

$2.11

8030

Pop Rivet 3/16”

293150108

$1.19

8100

Chalk, RH Body Panel Guard

705015326

$119.99

8110

Flat washer M6

250200164

$1.01

8120

Torx Truss Screw M6 X 25

250000807

$2.11

8130

Pop Rivet 3/16”

293150108

$1.19

8200

LH Lateral Structure

705012774

$229.99

8210

Panel Nut M6 X 1.0

250100198

$2.11

8220

Hex. Flange Screw M8 X 70

207687044

$7.41

8230

Saddle Washer

705205462

$5.40

8240

Elastic Flange Nut M8

233281464

$1.01

8300

RH Lateral Structure

705012775

$229.99

8310

Panel Nut M6 X 1.0

250100198

$2.11

8320

Hex. Flange Screw M8 X 70

207687044

$7.41

8330

Saddle Washer

705205462

$5.40

8340

Elastic Flange Nut M8

233281464

$1.01

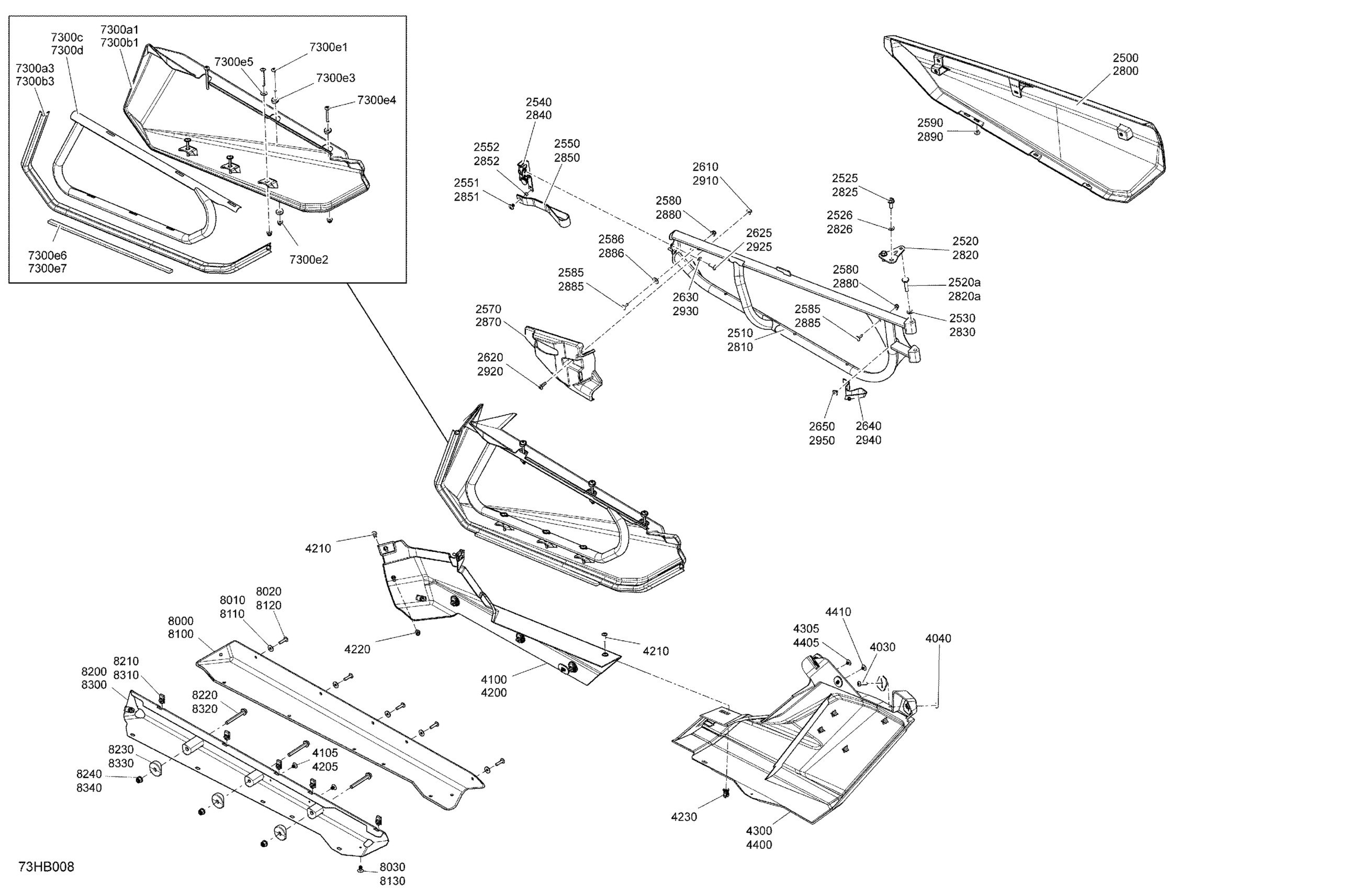

Can-Am 002 - Maverick Turbo RR - XRC - CE, 2022 07- Body - Doors Diagram

Chalk, LH Front Door Panel

Can-Am Red, LH Front Door

Door Support

Weld Pin 8mm X 40mm

Hex Screw Washer Head M8 X 20

Flat Washer M8

Flat Washer 8 mm, Nylon

LH Latch

Belt

Pop Rivet 3/16"

Bushing | DS 650 X

LH Latch Cover

Panel Nut M6 X 1.0

Torx Truss Screw M6 X 16

Stainless Steel Flat Washer

Pop Rivet 3/16"

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Torx Screw M6 X 20, Scotch Grip

Flat Washer

Door Belt

Pop Rivet 3/16"

Chalk, RH Front Door Panel

Can-Am Red, RH Front Door | Model Gold

Door Support

Weld Pin 8mm X 40mm

Hex Screw Washer Head M8 X 20

Flat Washer M8

Flat Washer 8 mm, Nylon

RH Latch

Belt

Pop Rivet 3/16"

Bushing | DS 650 X

RH Latch Cover

Panel Nut M6 X 1.0

Torx Truss Screw M6 X 16

Stainless Steel Flat Washer

Pop Rivet 3/16"

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Torx Screw M6 X 20, Scotch Grip

Flat Washer

Door Belt

Pop Rivet 3/16"

Torx Truss Screw M6 X 25

Panel Nut M6 X 1.0

LH Central Lateral Panel

Pop Rivet 3/16"

Deep Black, RH Lower Body Panel

Pop Rivet 3/16"

Torx Screw M6 X 20

Panel Nut M6 X 1.0

Insert

LH Rear Lateral Panel

Pop Rivet 3/16"

Deep Black, RH Rear Lateral Panel

Pop Rivet 3/16"

Pop Rivet 3/16" | DS 650 X

LH Door Panels

Door Seal

RH Door Panels

Door Seal

Black, LH Door Frame

Black, RH Door Frame | Includes 7300f to 7300p

Torx-Truss M/S M6 X 80

Hex. Flange Elastic Nut M6

Offset Washer

Torx Truss Screw M6 X 50

Stainless Steel Flat Washer

Neoprene Seal (1PAC=3M)

Neoprene Seal (1PAC=3M)

Chalk, LH Body Panel Guard

Flat washer M6

Torx Truss Screw M6 X 25

Pop Rivet 3/16”

Chalk, RH Body Panel Guard

Flat washer M6

Torx Truss Screw M6 X 25

Pop Rivet 3/16”
