Description

Price

10

Chalk, Frame Ass'y | Includes 10 to 10a1fw

715008512

$3,199.99

10a

Weld Pin 8mm X 40mm

250000913

$2.00

10b

Nut M6

250100059

$1.68

20

Front Plate

705207424

$22.99

25

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

30

Insert Half Hex Body M6 x 1.0

250100199

$3.19

35

Bumper Link

705206992

$18.49

36

Flange Screw M12 X 60

250000857

$7.41

37

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.70

40

Front Bumper Ass'y | Includes 40 to 40a1r

715007617

$542.49

41

Front Master Plate

715006996

$206.49

42

Panel Nut M6 X 1.0

250100198

$2.11

43

Torx Screw M6 X 20

250000722

$1.68

44

Cap

705202455

$5.69

48

U-Clamp

705206983

$37.99

49

Hex. Flange Elastic Nut M10

233201436

$2.11

50

Magma Red, Reinforcement Cage

705210065

$91.99

70

DPS Support

705206924

$71.99

71

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

72

Hex. Elastic Flange Nut M8

233281416

$1.48

80

Rear Upper Plate

705211557

$20.99

100

Rear Central Plate

705211558

$20.99

110

Rear Lower Plate

705211556

$18.49

200

Magma Red, Connecting Plate

705209144

$13.49

310

Junction Plate Ass'y

715008517

$77.99

320

Elastic Flange Nut M12

250001195

$2.64

330

Magma Red, Rear Pillar

705210067

$24.99

333

Sleeve

705210648

$9.90

340

Safety Belt Anchorage

705210001

$129.99

341

Elastic Stop Nut M12

232521416

$1.69

350

Connecting Plate

705211552

$5.39

360

Retaining Plate

705210249

$5.29

370

Support

706203122

$14.49

371

Pop Rivet 3/16"

390402200

$0.35

410

Black, Front Intrusion Bar | Includes 410 to 410f

715002889

$436.49

410a

Common Parts Kit | Includes 410a to 410a6

715003531

$163.99

410a1

Decal "Can-Am" | Not Shown

704904566

$10.99

410b

Black, Clamp

705205709

$79.49

420

Magma Red, Front Cross Member

705210069

$204.99

430

Magma Red, Rear Cross Member

705210071

$204.99

440

Magma Red, LH Cage Ass'y

715008495

$399.99

450

Magma Red, RH Cage Ass'y

715008501

$399.99

1510

Elastic Flange Nut M12

250001195

$2.64

1520

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$6.14

1530

Elastic Flange Nut M12

250001195

$2.64

1540

Flange Screw M12 X 60

250000857

$7.41

1550

Rivet 3/16"

293150102

$0.70

1560

Torx Truss M8 X 65

250000901

$1.90

1570

Elastic Flange Nut M8

250100025

$1.48

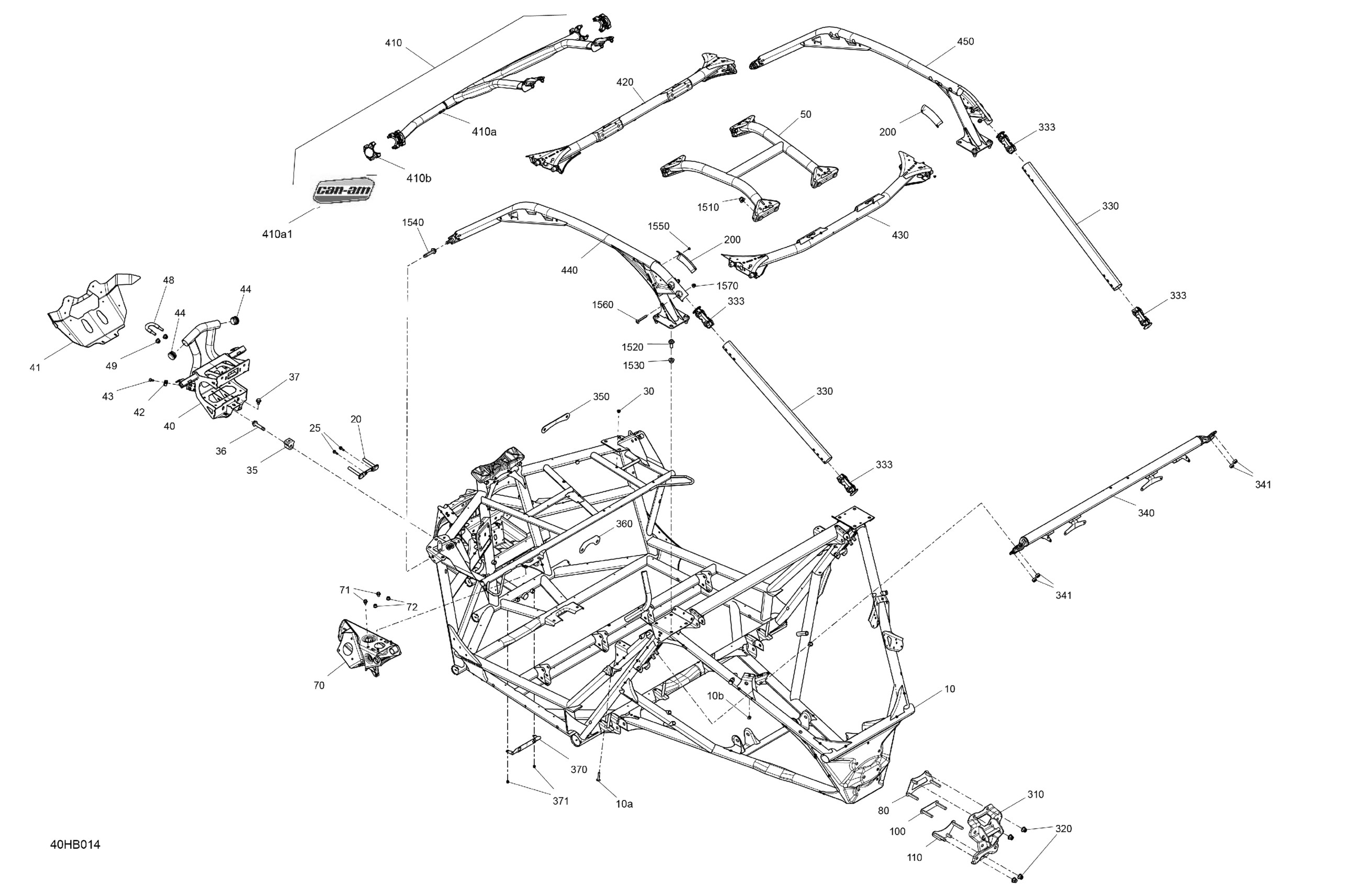

Can-Am 002 - Maverick Turbo RR - XRC - CE, 2022 06- Frame - System Diagram

Chalk, Frame Ass'y | Includes 10 to 10a1fw

Weld Pin 8mm X 40mm

Nut M6

Front Plate

Hex. Flange Screw M6 X 20, Scotch Grip

Insert Half Hex Body M6 x 1.0

Bumper Link

Flange Screw M12 X 60

Flange Screw M10 X 16, Scotch Grip | 4X4

Front Bumper Ass'y | Includes 40 to 40a1r

Front Master Plate

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Cap

U-Clamp

Hex. Flange Elastic Nut M10

Magma Red, Reinforcement Cage

DPS Support

Hex. Flange Screw M8 X 12, Scotch Grip

Hex. Elastic Flange Nut M8

Rear Upper Plate

Rear Central Plate

Rear Lower Plate

Magma Red, Connecting Plate

Junction Plate Ass'y

Elastic Flange Nut M12

Magma Red, Rear Pillar

Sleeve

Safety Belt Anchorage

Elastic Stop Nut M12

Connecting Plate

Retaining Plate

Support

Pop Rivet 3/16"

Black, Front Intrusion Bar | Includes 410 to 410f

Common Parts Kit | Includes 410a to 410a6

Decal "Can-Am" | Not Shown

Black, Clamp

Magma Red, Front Cross Member

Magma Red, Rear Cross Member

Magma Red, LH Cage Ass'y

Magma Red, RH Cage Ass'y

Elastic Flange Nut M12

Hex. Flange Screw M12 X 30, Scotch Grip

Elastic Flange Nut M12

Flange Screw M12 X 60

Rivet 3/16"

Torx Truss M8 X 65

Elastic Flange Nut M8
