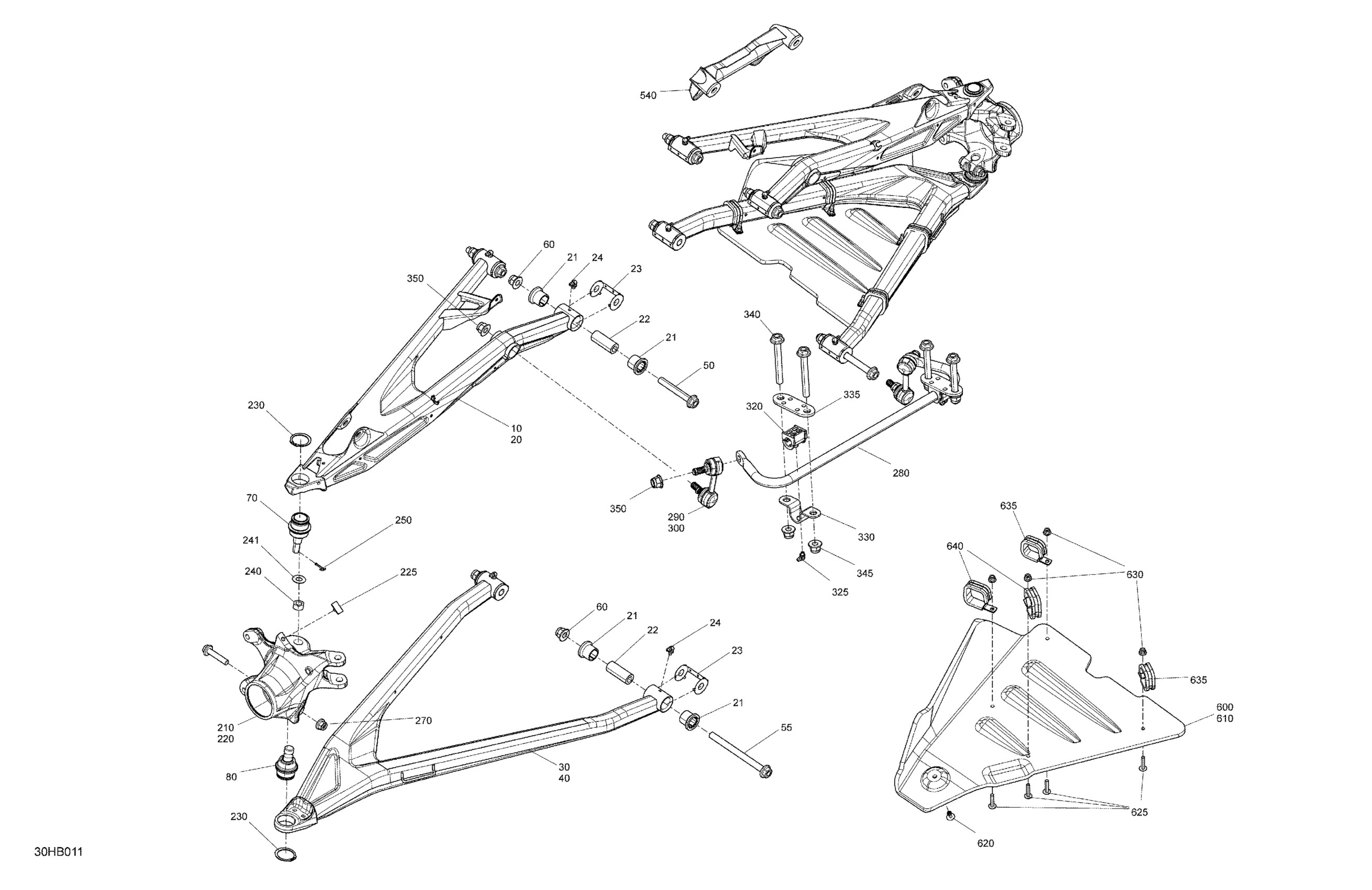

Can-Am Maverick Turbo RR - XRC - CE, 2022 Suspension - Front Components Diagram

Magma Red, LH Upper Suspension Arm Ass'y With Balljoint | Macchiato
Satin Model This part replaces 706204276.

715011477

$276.89

Magma Red, RH Upper Suspension Arm Ass'y With Balljoint | Macchiato
Satin Model This part replaces 706204278.

715011475

$276.89

Suspension Arm Bushing

706204409

$8.29

Interior Bushing

706202257

$9.22

Wear Plate

706202300

$2.31

Grease Fitting 90°

293550056

$1.37

Deep Black, LH Lower Suspension Arm Ass'y With Balljoint This part replaces 706204733.

715010614

$272.28

Deep Black, RH Lower Suspension Arm Ass'y With Balljoint This part replaces 706204734.

715010613

$272.28

Flange Screw M12 X 85

250000859

$3.95

Flange Screw M12 X 145

250000861

$5.47

Elastic Flange Nut M12

233221466

$2.15

Ball Joint

706203084

$35.35

Ball Joint

706202045

$35.35

LH Front Knuckle

706204785

$198.43

RH Front Knuckle

706204786

$147.66

Wear Plate

706202502

$2.75

Circlip

293370035

$2.55

Nut M12

250100099

$1.64

Hardened Washer

706200281

$2.34

Cotter Pin

211400017

$0.25

Hex. Flange Elastic Nut M10

233201436

$1.74

Stabilizer Bar Ass'y

706203953

$96.89

LH Stabilizer Bar Link

706203611

$67.66

RH Stabilizer Bar Link

706203612

$67.66

Stabilizer Bar Bushing

706204564

$3.61

Grease Fitting 90°

293550056

$1.37

Clamp

706202460

$6.45

Support Plate

706202551

$4.60

Hex. Flange Screw M12 X 95

250000876

$5.54

Elastic Flange Nut M12

233221466

$2.15

Elastic Flange Nut M12

233221466

$2.15

Macchiato, Front Shock Reinforcement

706204350

$50.74

LH A-Arm Protector

703501027

$170.74

RH A-Arm Protector

703501028

$156.89

Pop Rivet 3/16”

293150108

$1.23

Stainless, Torx Screw M6 X 30

250000842

$1.74

Hex. Flange Elastic Nut M6

233261494

$1.26

Holding Clamp

293750085

$7.37

Holding Clamp

293750086

$7.37
