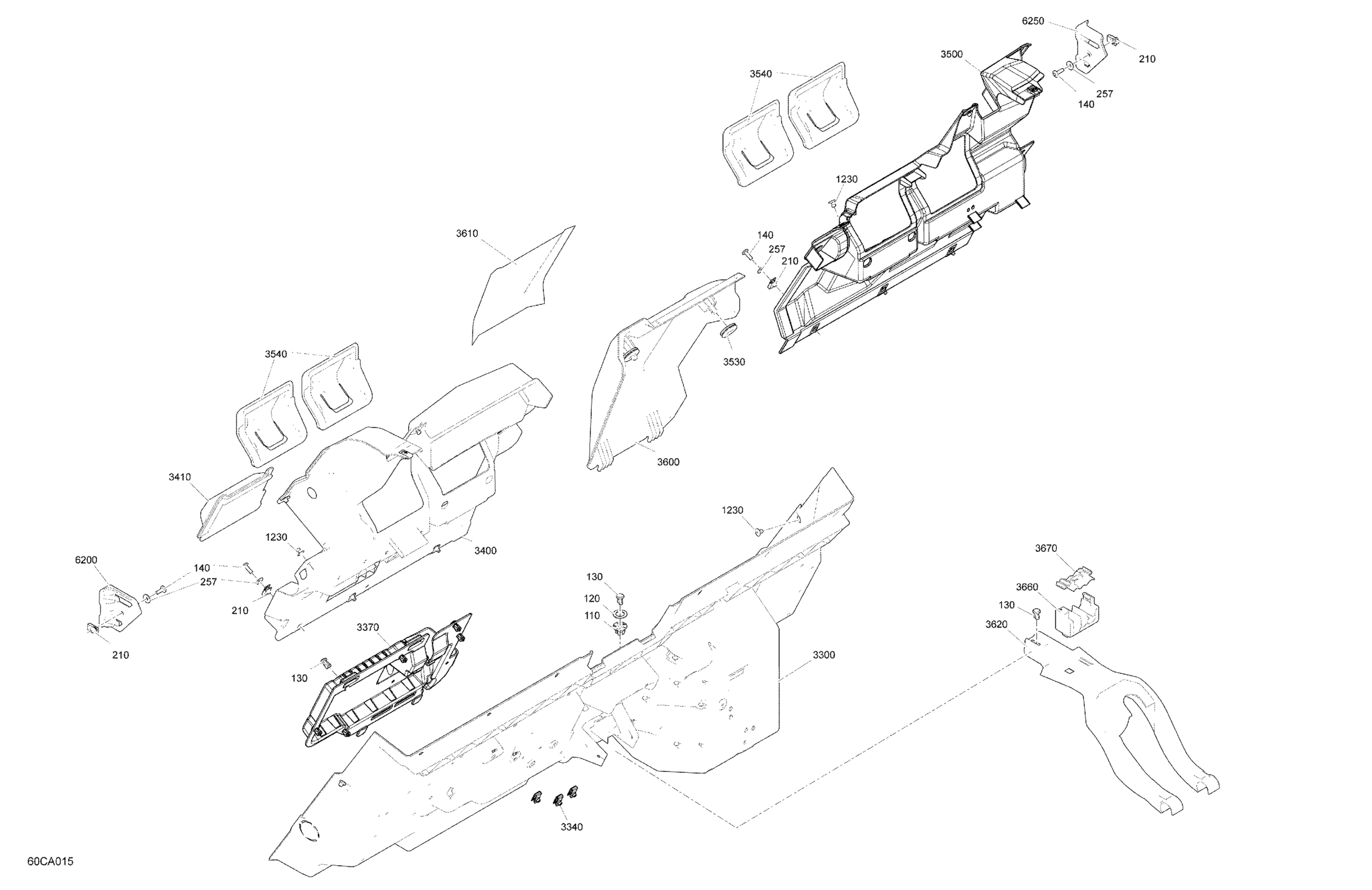

Can-Am Maverick Turbo RR - XRC - CE, 2021 Body - Cab Interior - Back Wall Diagram

Description

Price

110

Insert

707900133

$2.75

120

Washer

503189273

$3.20

130

Tuflok Plastic Rivet

293150230

$1.21

140

Torx Screw M6 X 20

250000722

$1.34

210

Panel Nut M6 X 1.0

250100198

$1.73

257

Stainless Steel Flat Washer

234062670

$1.74

1230

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

3300

Rear Lower Seperation Panel

707900929

$87.66

3340

Panel Nut M6 X 1.0

250100198

$1.73

3370

Fuse Box Cover

707900880

$36.89

3400

LH Upper Bulkhead Kit

703501073

$87.66

3410

Bulkhead Cover

707900652

$13.85

3500

RH Upper Bulkhead Kit

707900935

$83.05

3530

Grommet

705010718

$2.69

3540

Bulkhead Cover

707900486

$13.83

3600

Central Upper Rear Bulkhead

707900442

$36.89

3610

Aluminum Foil

707900773

$16.89

3620

Hose Support | Not Shown

707900651

$36.89

3660

Support Hose Rear

707900699

$5.52

3670

Support Hose Rear

707900729

$5.52

6200

LH Shoulder Pad

707900615

$12.68

6250

RH Shoulder Pad

707900616

$12.68
