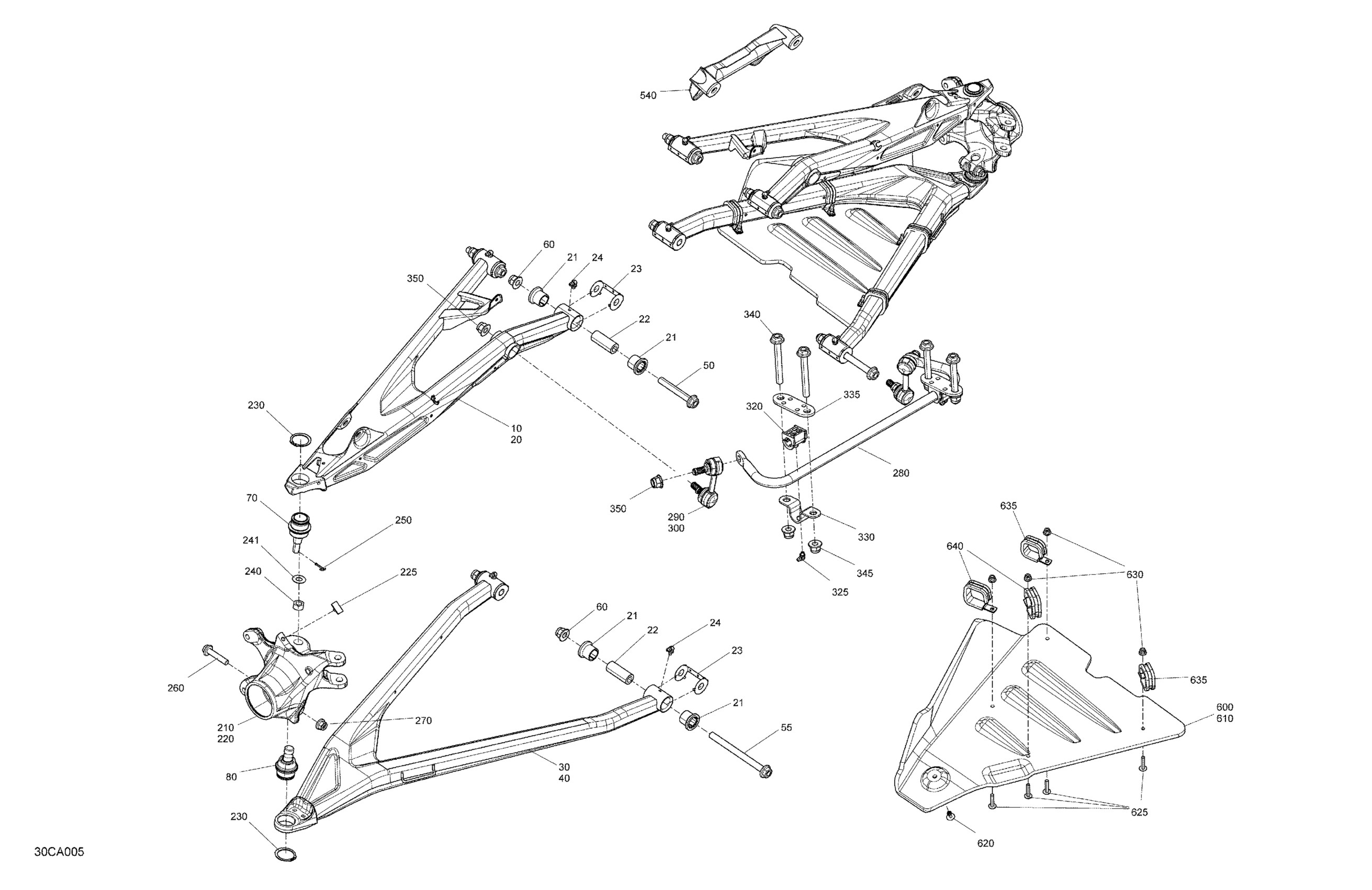

Can-Am Maverick Turbo RR - XRC - CE, 2021 Suspension - Front Diagram

Magma Red, LH Upper Suspension Arm Ass'y With Balljoint | Macchiato
Satin Model This part replaces 706204276.

715011477

$294.99

Magma Red, RH Upper Suspension Arm Ass'y With Balljoint | Macchiato
Satin Model This part replaces 706204278.

715011475

$294.99

Suspension Arm Bushing

706204409

$9.10

Interior Bushing

706202257

$9.79

Wear Plate

706202300

$2.29

Grease Fitting 90°

293550056

$1.15

Black, LH Lower Arm | Model X3 Xrs

706202706

$201.49

Deep Black, RH Lower Suspension Arm Ass'y With Balljoint This part replaces 706204734.

715010613

$289.99

Flange Screw M12 X 85

250000859

$4.76

Flange Screw M12 X 145

250000861

$6.67

Elastic Flange Nut M12

233221466

$2.89

Ball Joint

706203084

$35.99

Ball Joint

706202045

$35.99

LH Front Knuckle

706204785

$201.49

RH Front Knuckle

706204786

$148.49

Wear Plate

706202502

$2.29

Circlip

293370035

$2.64

Nut M12

250100099

$2.09

Hardened Washer

706200281

$2.85

Cotter Pin

211400017

$0.33

Hex. Flange Screw M10 X 50

207605044

$5.29

Hex. Flange Elastic Nut M10

233201436

$2.11

Stabilizer Bar Ass'y

706203953

$98.49

LH Stabilizer Bar Link

706203611

$72.99

RH Stabilizer Bar Link

706203612

$72.99

Stabilizer Bar Bushing

706204564

$3.61

Grease Fitting 90°

293550056

$1.15

Clamp

706202460

$6.89

Support Plate

706202551

$5.09

Hex. Flange Screw M12 X 95

250000876

$6.77

Elastic Flange Nut M12

233221466

$2.89

Elastic Flange Nut M12

233221466

$2.89

Macchiato, Front Shock Reinforcement

706204350

$58.99

LH A-Arm Protector

703501027

$179.99

RH A-Arm Protector

703501028

$158.99

Pop Rivet 3/16”

293150108

$1.19

Stainless, Torx Screw M6 X 30

250000842

$2.11

Hex. Flange Elastic Nut M6

233261494

$1.58

Holding Clamp

293750085

$7.59

Holding Clamp

293750086

$7.59
