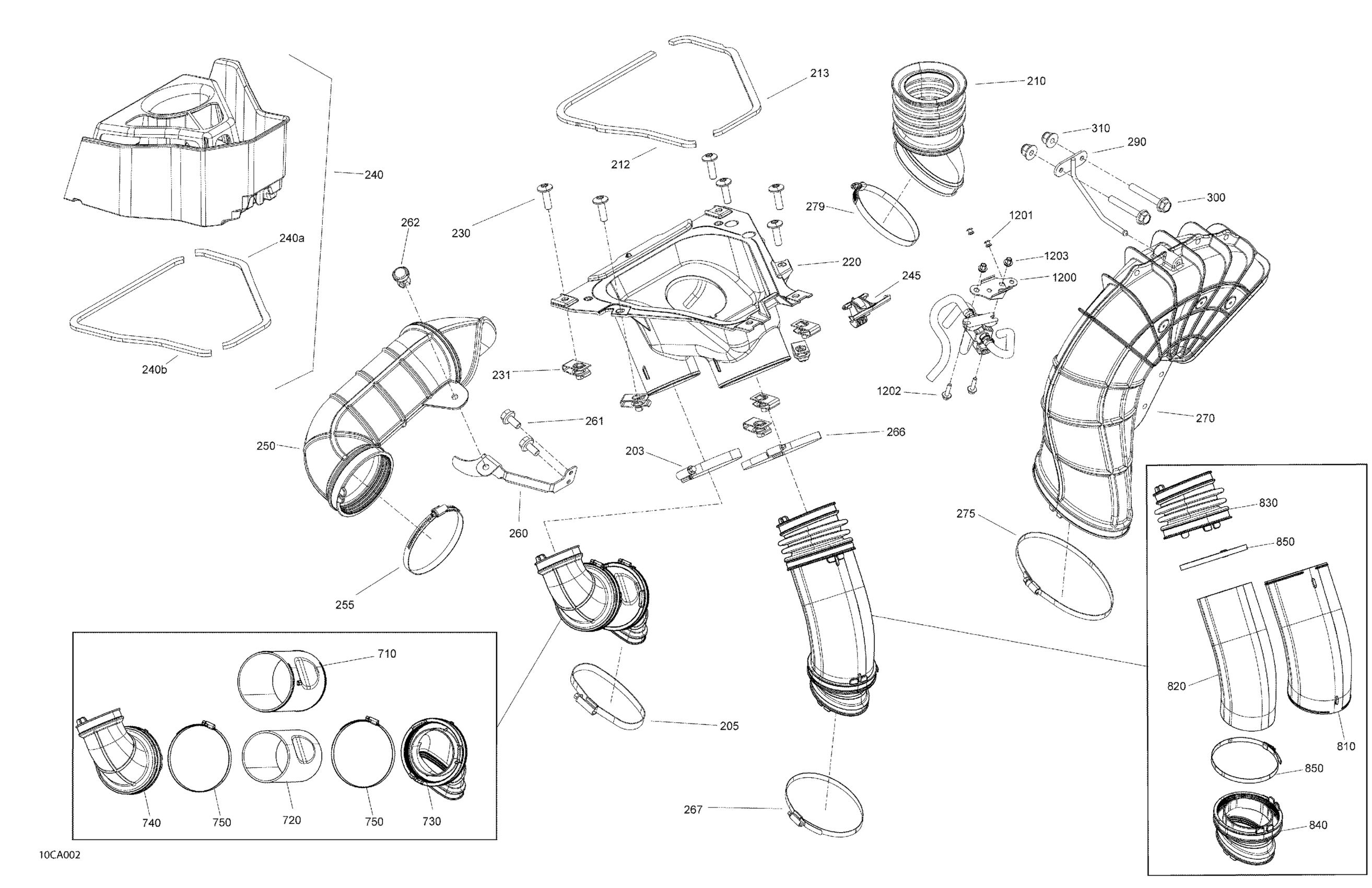

Can-Am Maverick Turbo RR - XRC - CE, 2021 Engine - System - Air Duct Diagram

Description

Price

203

Norma Clamp

514052924

$12.15

205

Norma Clamp

514052924

$12.15

210

Hose

707800861

$15.64

212

Seal

706600137

$35.79

213

Seal

706600138

$34.30

220

Adaptor

706600129

$41.76

230

Torx Screw M6 X 20

250000722

$1.54

231

Panel Nut M6 X 1.0

250100198

$1.99

240

CVT Filter | Includes 240 to 240b

706600148

$57.43

240a

Seal

706600136

$35.79

240b

Seal

706600139

$34.30

245

Latch

708000909

$6.39

250

Front Outlet Duct

706600078

$24.60

255

Norma Gear Clamp

514052983

$14.90

260

Hose Support

706600147

$14.76

261

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

262

Tuflok Plastic Rivet

293150230

$1.39

266

Norma Gear Clamp

514052983

$14.90

267

Norma Gear Clamp

514052983

$14.90

270

Rear Outlet Duct

706600081

$89.52

275

Gear Clamp (Norma)

514052861

$7.57

279

Norma Clamp

514052924

$12.15

290

Outlet Support

707002056

$10.82

300

Hex. Flange Screw M6 X 40

207664044

$2.12

310

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

710

CVT Cooling Duct

706600337

$49.97

720

Acoustic Insulation

706600343

$40.27

730

Hose

706600389

$18.63

740

Hose

706600390

$12.01

750

Gear Clamp (Norma)

514052861

$7.57

810

CVT Cooling Duct

706600338

$49.97

820

Insulating Acoustic

706600344

$40.27

830

Hose

706600391

$12.01

840

Hose

706600392

$12.01

850

Gear Clamp (Norma)

514052861

$7.57

1200

Boost Valve Support

707002496

$2.68

1201

Pop Rivet 3/16" | DS 650 X

390402000

$0.27

1202

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.73

1203

Insert

250100219

$2.19
