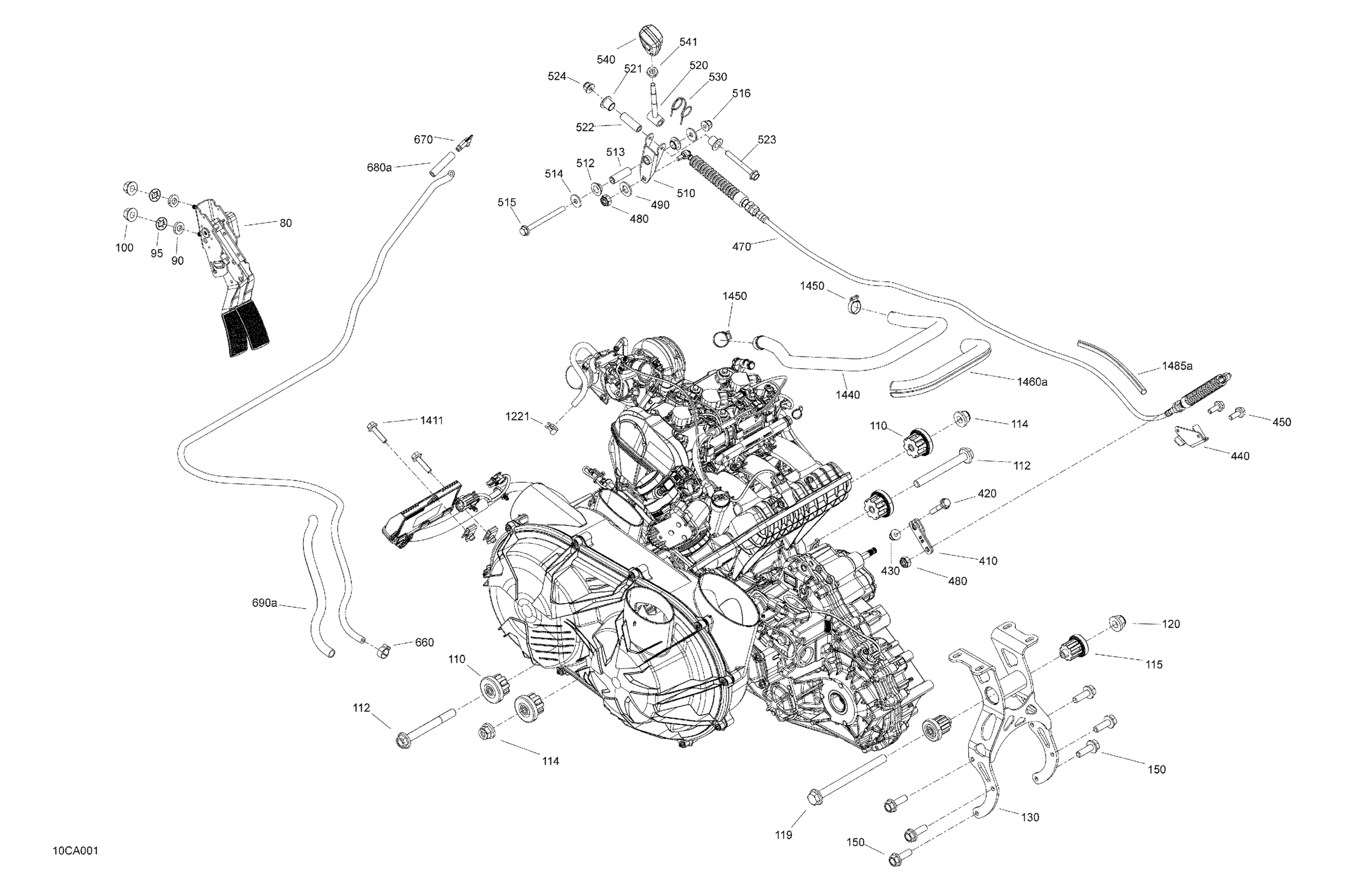

Can-Am Maverick Turbo RR - XRC - CE, 2021 Engine - System Diagram

#

Description
Price

80

Throttle Pedal

707001803

$284.99

90

Bushing

707001990

$2.79

95

Push Nut

250100031

$7.29

100

Hex. Flange Nut

233081436

$2.00

110

Vibration Damper

707002952

$15.81

112

Hex. Flange Screw M10 X 90

207609046

$6.77

114

Hex. Flange Elastic Nut M10

233201436

$2.11

115

Vibration Damper

707002953

$15.81

119

Hex. Flange Screw M10 X 125

230602546

$7.41

120

Hex. Flange Elastic Nut M10

233201436

$2.11

130

Rear Engine Support

707001881

$104.99

150

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

410

Lever

707000911

$20.49

420

Hex. Flange Screw M6 X 35

207663544

$0.90

430

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

440

Cable Support

707001614

$16.87

450

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

470

Shifting Cable

707001809

$67.99

480

Hex. Elastic Stop Nut M8

232581414

$0.56

490

Flat Washer 10 mm

234001410

$1.26

510

Lower Lever Arm

707000828

$19.99

512

Flanged Bushing

707000847

$1.25

513

Bushing

707001376

$5.24

514

Flat Washer 6 mm

234062410

$0.77

515

Hex. Flange Screw M6 X 70

207667056

$4.44

516

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

520

Upper Lever Arm

707000711

$39.99

521

Flanged Bushing

707000869

$2.89

522

Bushing

707001376

$5.24

523

Hex. Flange Screw M6 X 50

207665044

$4.12

524

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

530

Lever Arm Spring

707000750

$2.68

540

Lever Trim

707003211

$8.49

541

Hex. Jam Nut M8

232180491

$7.51

650a

Hose

219704549

$50.99

660

Oetiker Clamp

293650042

$3.09

670

Elbow Fitting

293710171

$9.09

680a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

690a

TUBING 13MM I.D. 300MM LONG - Call your local BRP dealership

219704449

Unavailable

1221

Spring Clamp

414420700

$0.72

1411

Hex. Flange Screw M6 X 25

207662554

$1.48

1440

Crankcase Hose

707002452

$50.99

1450

Tridon Gear Clamp

293650051

$4.19

1460a

Corrugated Sheath 23 MM ID 1000MM Long

219704450

$13.76

1485a

Tubing 10 MM 1000MM Long

219704407

$2.79
