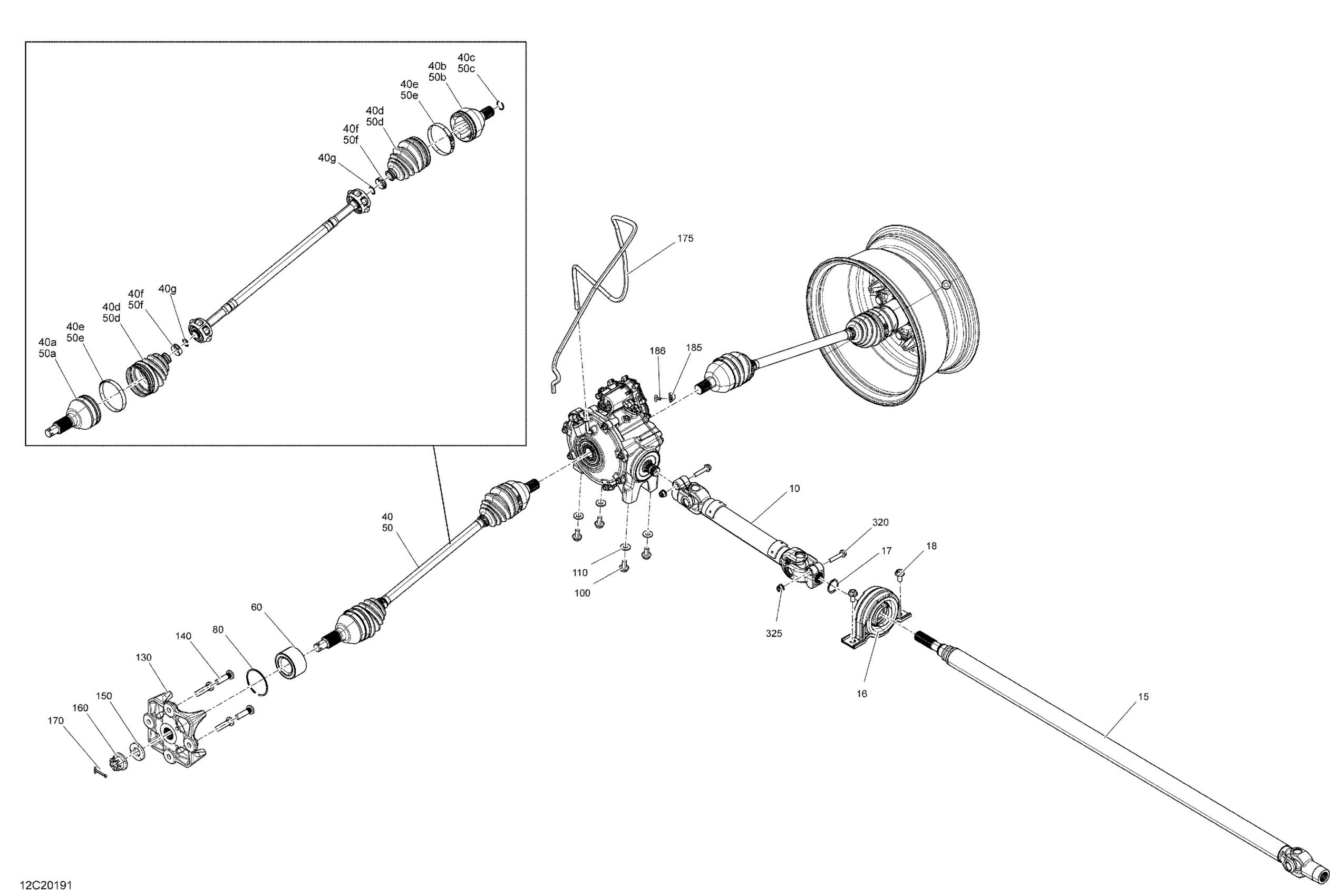

Can-Am 002 - Maverick Turbo R, Turbo RR - STD_XDS_XRS - International, 2020 07- Front Drive - Common Parts Diagram

Drive Axle Ass'y

705402948

$206.49

Drive Axle Ass'y

705403004

$248.99

Ball Bearing Ass'y

705403522

$47.49

Snap Ring

293370098

$3.17

Hex. Flange Screw M10 X 20

207502046

$2.11

Performance CV Axle | Includes 40 to 40f

705401634

$275.49

Performance CV Axle | Includes 40 to 40f

705402048

$275.49

CV Joint

715900574

$259.49

Plunging Joint

715900575

$259.49

Circlip

715900569

$5.50

Boot Kit, Wheel Side

705401354

$42.49

Oetiker Clamp, Large

715900260

$10.33

Oetiker Clamp, Small

715900261

$5.29

O-ring

715900580

$2.51

Performance CV Axle - Front Right | Except Model X3 Xrs

705402098

$275.49

CV Joint

715900452

$259.49

RH Plunging Joint

715900454

$259.49

Circlip Joint | Not shown

705401349

$6.50

Performance CV Axle - Front Left | Except Model X3 Xrs

705402097

$275.49

CV Joint

715900452

$259.49

LH Plunging Joint

715900453

$259.49

Circlip Joint | Not shown

705401349

$6.50

Boot Kit, Wheel Side

705401354

$42.49

Oetiker Clamp, Large

715900260

$10.33

Oetiker Clamp, Small

715900261

$5.29

Bearing_Ball

293350141

$70.99

Circlip

293370102

$3.99

Hex. Flange Screw M10 X 20

207502046

$2.11

Conical Spring Washer 10 mm

234201474

$1.69

Wheel Hub

705502122

$116.49

Wheel Stud M12X1.5

250300625

$3.91

Conical Spring Washer M20

250200170

$14.74

Castle Nut M20

250100193

$8.05

Cotter Pin

250400084

$2.29

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

Open Clamp

518321570

$7.69

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Hex. Flange Screw M8 X 42

250001050

$1.16

Hex. Elastic Flange Nut M8

233281416

$1.48
