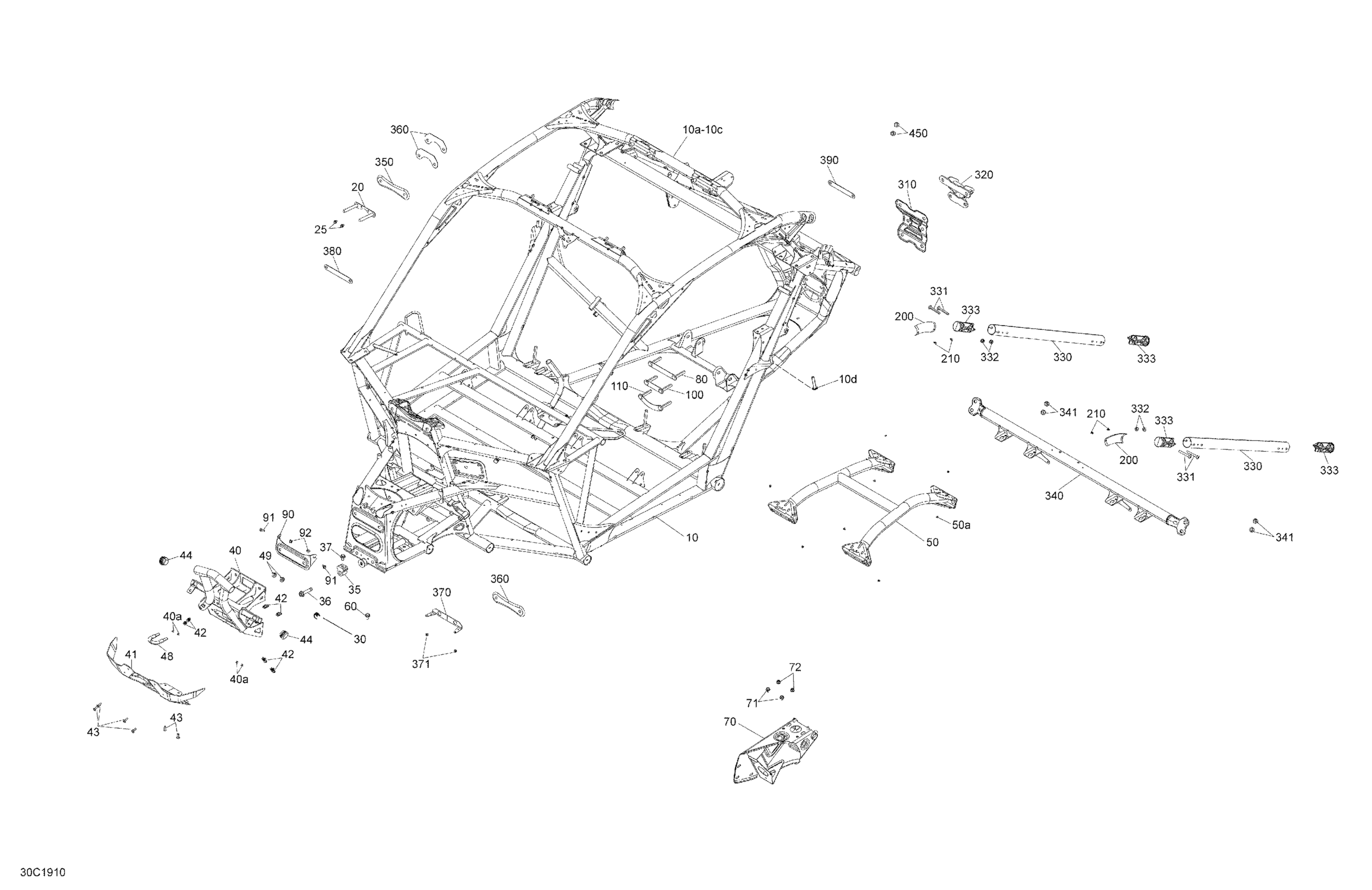

Can-Am Maverick Turbo - 2019 Frame - Turbo Diagram

#

Description
Price

10>10c

Black Frame Kit | Includes 10 to 10c

715005695

Unavailable

10a>10a3

Front Black Cage Kit | Includes 10a to 10a3

715005713

Unavailable

10a1

Torx Screw K50 X 16

250000720

$1.39

10a2

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$5.07

10a3

Hex. Flange Elastic Nut M12

233221414

$5.10

10b

Hexagonal Nut

233701400

$0.57

10c

Pop Rivet 3/16"

390402200

$0.26

10d

Weld Pin 8mm X 40mm

250000913

$1.61

20

Front Plate

705207424

$18.43

25

Flange Screw M6 X 10, Scotch Grip

207561044

$5.89

30

Insert Half Hex Body M6 x 1.0

250100199

$2.54

35

Bumper Link

705206992

$15.22

36

Flange Screw M12 X 60

250000857

$6.08

37

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.60

40

Deep Black, Front Bumper | Except Model Gold

705210400

$101.51

40

YELLOW FRONT XRC BUMPER KIT - Call your local BRP dealership | Includes 40 to 40a

715004741

Unavailable

40

BLUE FRONT XRC BUMPER KIT - Call your local BRP dealership

715004742

Unavailable

40a

Pop Rivet 3/16"

390402200

$0.26

41

Front Master Plate

705206871

$198.43

42

Panel Nut M6 X 1.0

250100198

$1.73

43

Torx Screw M6 X 20

250000722

$1.34

44

Cap

705202455

$4.62

48

U-Clamp

705206983

$36.89

49

Hex. Flange Elastic Nut M10

233201436

$1.74

50

Added Cage | Except Model Gold Built in 2017

705206774

$91.99

50a

Pop Rivet 3/16"

390402200

$0.26

60

Elastic Flange Nut M12

233221466

$2.15

70

DPS Support

705206924

$66.12

71

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$0.92

72

Hex. Flange Elastic Nut M8

233281414

$1.14

80

Rear Upper Plate

705206852

$19.20

90

Stifner Plate

705206877

$28.43

91

Hex. Flange Screw M6 X 16

207661654

$1.74

92

Hex. Flange Elastic Nut M6

233261494

$1.26

100

Rear Central Plate

705211558

$17.66

110

Rear Plate

705206854

$19.20

200

Black, LH Link Plate | Except Model Gold

705205926

$23.82

210

Rivet 3/16"

293150102

$0.71

310

Rear Plate

705205750

$23.82

320

Black, Rear Attachement Hook

715004450

$89.97

330

Deep Black, Rear Pillar

705210066

$24.99

331

Torx Truss M8 X 65

250000901

$1.56

332

Elastic Flange Nut M8

250100025

$1.25

333

Sleeve

705210648

$9.29

340

Belt Bar

705205268

$119.97

341

Elastic Stop Nut M12

232521416

$1.40

350

Connecting Plate

705211552

$4.95

360

Retaining Plate

705210249

$4.86

365

Front Plate | Package STD

705207438

$2.69

370

Support

706203122

$11.00

371

Pop Rivet 3/16"

390402200

$0.26

380

Front Upper Plate

705206069

$13.49

390

Rear Upper Plate | Model XRSDPS

705206511

$13.49

450

Elastic Flange Nut M12

233221466

$2.15
