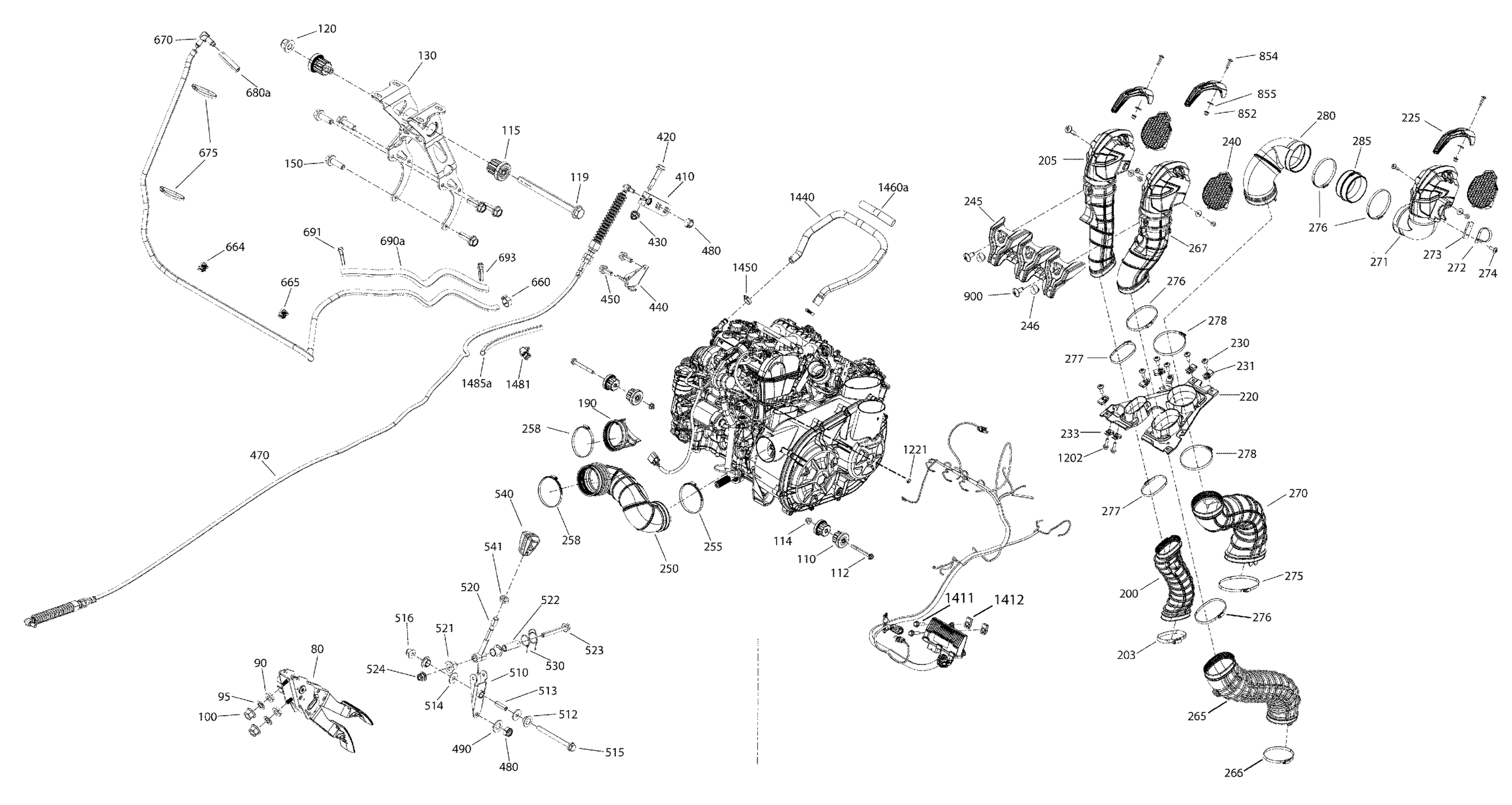

Can-Am Maverick Turbo - 2019 Engine - Turbo - Package XMR Diagram

#

Description
Price

80

Throttle Pedal

707001803

$281.51

90

Bushing

707001990

$2.31

95

Push Nut

250100031

$6.86

100

Hex. Flange Nut M8

233081416

$1.63

110

Vibration Damper

707002952

$13.82

112

Hex. Flange Screw M10 X 90

207609046

$5.54

114

Hex. Flange Elastic Nut M10

233201436

$1.74

115

Anti-Vibration Mount

707001808

$13.82

119

Hex. Flange Screw M10 X 125

230602546

$6.08

120

Hex. Flange Elastic Nut M10

233201436

$1.74

130

Rear Engine Support

707001881

$101.51

150

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.68

190

Front CVT Duct

706600248

$27.66

200

Front CVT Duct

706600225

$27.66

203

Norma Clamp

514052924

$10.58

205

Top Front CVT Duct

706600250

$156.89

220

Hose Support

706600253

$16.89

225

Cap

707002086

$19.97

230

Torx Screw M6 X 20

250000722

$1.34

231

Panel Nut M6 X 1.0

250100198

$1.73

233

Panel Nut M5 X 0.8

250000958

$3.48

240

Air Inlet Grille

706600296

$19.20

245

Hose Holder

706600276

$20.74

246

Pop Rivet 3/16"

293150103

$0.54

250

Front CVT Duct

706600224

$27.66

255

Norma Gear Clamp

514052983

$11.39

258

Norma Gear Clamp

514052983

$11.39

265

Rear Duct

706600222

$83.05

266

Norma Gear Clamp

514052983

$11.39

267

Top Rear Intake Duct

706600251

$156.89

270

Rear CVT Duct

706600223

$124.58

271

Top Rear CVT Exhaust Duct

706600252

$147.66

272

Open Clamp

293850133

$2.31

273

Plate

705013076

$30.74

274

Torx Truss M8 X 16

250000881

$1.74

275

Gear Clamp (Norma)

514052861

$7.80

276

Norma Gear Clamp

514052983

$11.39

277

Norma Clamp

293650096

$3.09

278

Tridon Clamp

293650054

$7.51

280

Mid Rear CVT Exhaust Duct

706600270

$46.12

285

Adaptor

707002266

$11.83

410

Lever

707000911

$18.43

420

Hex. Flange Screw M6 X 35

207663544

$0.74

430

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

440

Cable Support

707001614

$15.22

450

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

470

Shifting Cable

707001809

$69.20

480

Hex. Elastic Stop Nut M8

232581414

$0.47

490

Flat Washer 10 mm

234001410

$0.98

510

Lower Lever Arm

707000828

$16.89

512

Flanged Bushing

707000847

$1.00

513

Bushing

707001376

$4.22

514

Flat Washer 6 mm

234062410

$0.64

515

Hex. Flange Screw M6 X 70

207667056

$3.61

516

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

520

Upper Lever Arm

707000711

$36.89

521

Flanged Bushing

707000869

$2.20

522

Bushing

707001376

$4.22

523

Hex. Flange Screw M6 X 50

207665044

$3.38

524

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

530

Lever Arm Spring

707000750

$2.75

540

Lever Trim

707003211

$7.95

541

Hex. Jam Nut M8

232180491

$6.18

660

Oetiker Clamp

293650042

$1.40

664

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

665

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

670

Elbow Fitting

293710171

$6.92

675

Tie Wrap 368 mm

293750008

$0.85

680a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

690a

TUBING 13MM I.D. 300MM LONG - Call your local BRP dealership

219704449

Unavailable

691

Tie-Rap 180 mm

414115200

$0.09

693

Tie-Rap 180 mm

414115200

$0.09

852

Elastic Flange Nut M5

233251494

$1.74

854

Torx Screw M5 X 20

250000792

$1.74

855

Flat Washer 5 mm, Stainless

234052600

$0.64

900

Torx Screw M6 X 14

250000851

$1.74

1202

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.12

1221

Oeticker Clamp

293650262

$1.00

1411

Hex. Flange Screw M6 X 25

207662554

$1.48

1412

Panel Nut M6 X 1.0

250100198

$1.73

1440

Hose Vent

707001931

$50.74

1450

Tridon Gear Clamp

293650051

$3.61

1460a

Corrugated Sheath 23 MM ID 1000MM Long

219704450

$13.83

1481

Clip Tie-Rap | Package North Edition

710005037

$8.45

1485a

Tubing 10 MM 1000MM Long

219704407

$2.20
