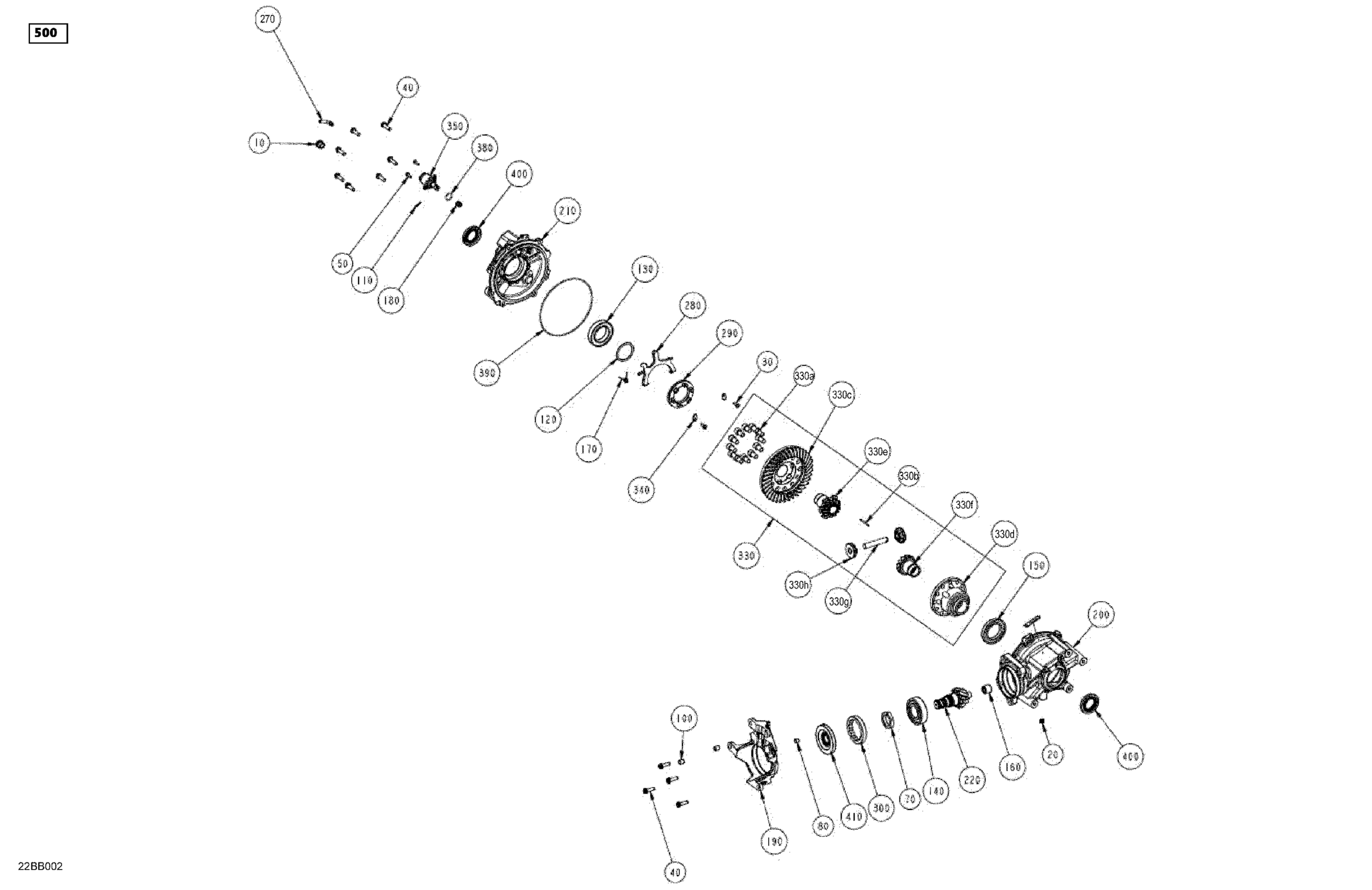

Can-Am Commander 700 EFI - DPS - 2022 Drive - Final Drive Unit Diagram

#

Description
Price

10

Fill Level Plug

705501889

$18.43

20

Fill Level Plug M10

715900563

$27.66

30

Torx Screw M6 X 16

705402845

$10.14

40

Bolt

705501886

$6.75

50

Screw

715900736

$18.43

70

Nut

715900737

$32.28

80

Dowel Pin

715900738

$29.97

100

Dowel Pin

715900739

$29.97

110

Spring Pin

715900754

$11.06

120

Shim

715900740

$36.89

130

Ball Bearing

715900741

$40.49

140

Ball Bearing

715900782

$65.35

150

Ball Bearing

715900742

$26.89

160

Needle Bearing

705501874

$68.43

170

Torsion Spring

715900755

$10.14

180

Compression Spring

715900756

$12.68

190

Differential Support

705503213

$179.97

200

Case

715900744

$286.12

210

Cover

715900745

$304.58

220

Pinion, 10T Spiral

715900746

$129.20

270

Vent Valve

705401935

$14.37

280

Pivot Fork

715900761

$46.12

290

Engagement

715900821

$69.20

300

Nut

705501882

$36.89

330

Differential Sub-Assembly | Includes 30an to 30an8

715900765

$1,024.99

330a

Screw

715900752

$13.83

330b

Dowel Pin

715900753

$11.98

330c

Ring Gear, 36T Spiral

715900757

$281.51

330d

Carrier

715900758

$170.74

330e

Output Gear

715900759

$143.05

330f

Output Gear

715900760

$143.05

330g

Differential Pin

715900763

$36.89

330h

Pinion, Differential

715900764

$203.05

340

Retainer Fork | Not Shown

715900766

$11.54

350

Servomotor

420265845

$216.89

380

O-Ring | Included in gasket set gearbox

420450450

$1.46

390

O-Ring

715900749

$10.98

400

Oil Seal

715900531

$27.66

410

Seal

715900751

$41.51

500

Rear Differential Ass'y | Includes 30 to 30av

705503735

$1,523.05
