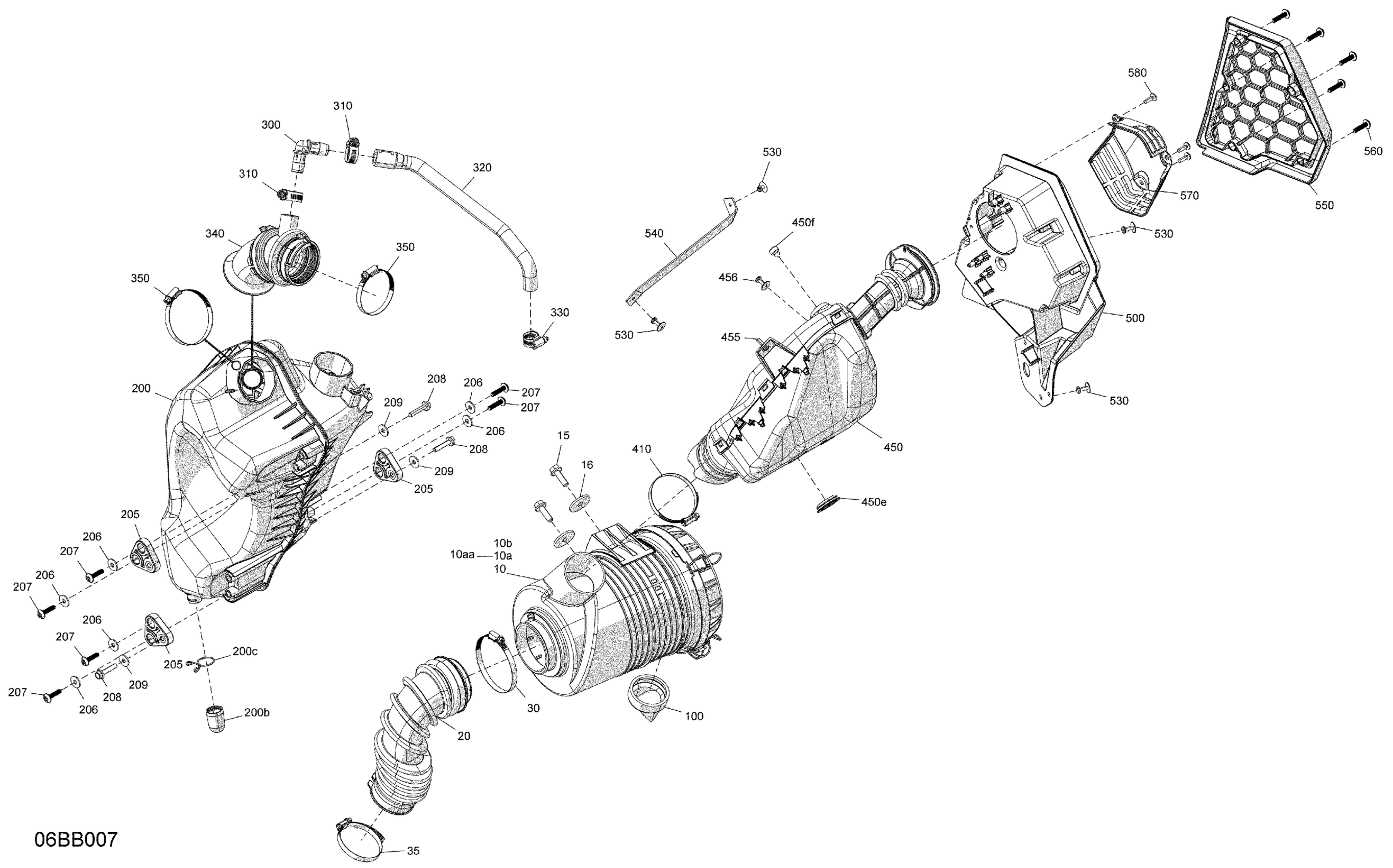

Can-Am Maverick Trail 700 - BASE - 2022 Engine - Air Intake Diagram

#

Description
Price

10

Intake Silencer Ass'y | Includes 10 to 10b

707801033

$184.99

10a

Silencer Air Cover Ass'y | Includes 10a to 10a1

715900515

$93.99

10a.a

O-Ring

715900514

$19.49

10b

Air Filter

715900394

$52.99

15

Hex. Flange Screw M8 X 25

207682544

$1.35

16

Flat Washer M8

250200158

$2.11

20

Intake Adapter

707800923

$27.99

30

Norma Clamp

293650096

$3.17

35

Norma Clamp

293650091

$11.12

100

Duct Bill Valve

715003114

$13.49

200

Primary Chamber Ass'y | Includes 200 to 200c

707801013

$84.99

200b

Cap

293000135

$7.79

200c

Retainer Clip

707800278

$13.99

205

Support

707801000

$13.99

206

Flat Washer 6 mm

234062410

$0.77

207

Hex. Screw Pt K60 X 25

250000980

$2.11

208

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

209

Flat Washer 6 mm

234062410

$0.77

300

Elbow Fitting 90

293710155

$9.39

310

Tridon Gear Clamp

293650173

$3.09

320

Crankcase Hose

707800924

$11.99

330

Tridon Gear Clamp

293650173

$3.09

340

Intake Adapter

707800930

$27.99

350

Norma Clamp

293650091

$11.12

410

Norma Clamp

293650091

$11.12

450

Resonator Ass'y | Includes 450 to 450g

707800926

$86.99

450e

Plug

293000125

$1.15

450f

Rubber Bumper

293830005

$8.09

455

Screw PT Type K-50 X 16

250000959

$2.11

456

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

500

Air Intake Box

707800865

$37.99

530

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

540

Support

707800784

$5.79

550

Air Intake Grid

707800751

$48.99

560

Hex. Screw Pt K60 X 25

250000980

$2.11

570

Baffle

707800762

$19.99

580

Torx Screw K50 X 16

250000720

$1.69
