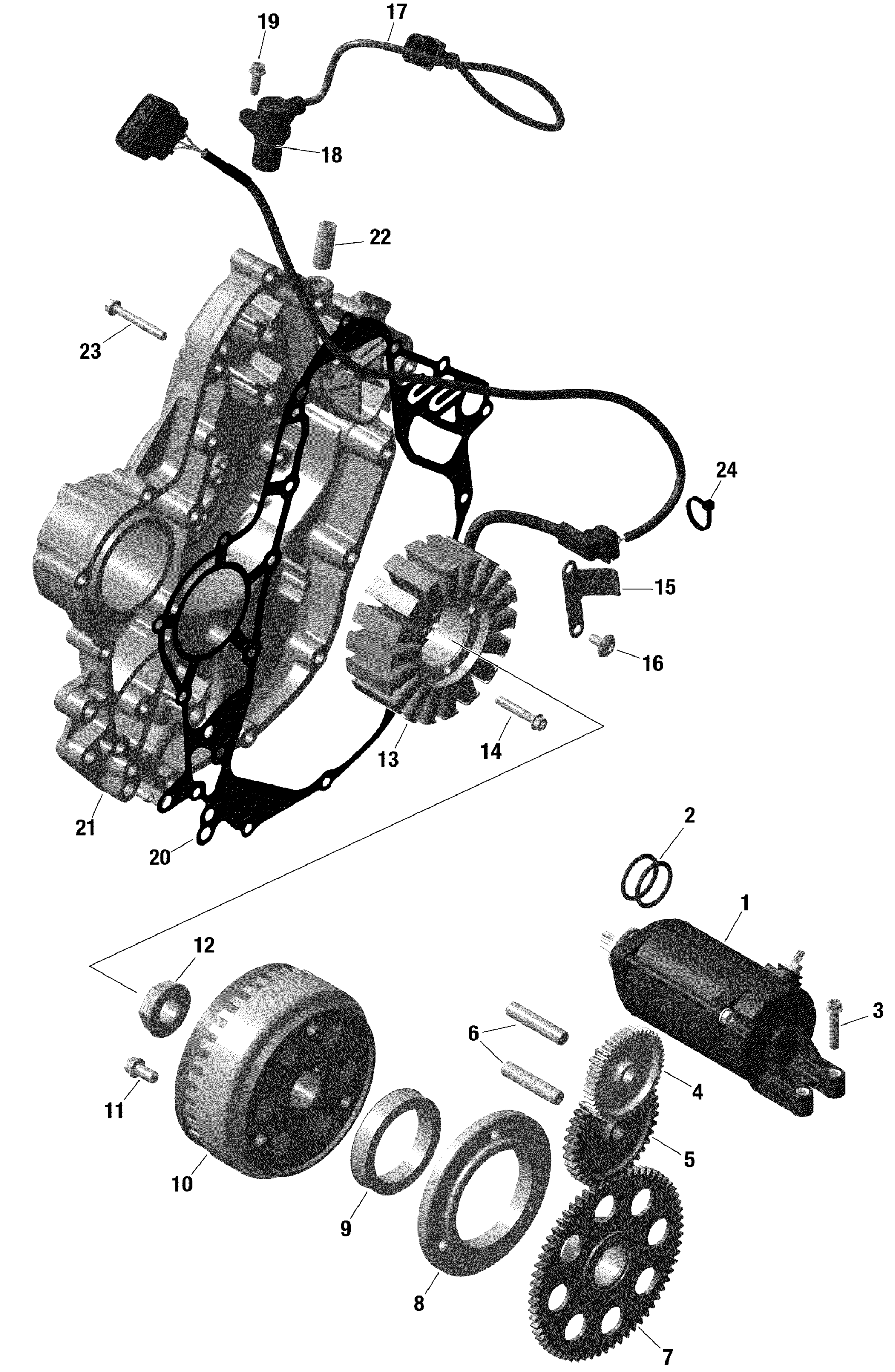

Can-Am Commander 700 EFI - DPS - 2022 ROTAX - Magneto and Electric Starter Diagram

#

Description
Price

1

Starter Ass'y

420893838

$265.99

2

O-Ring

420250140

$8.57

3

Torx Flange Screw M6 X 30

420840888

$1.69

4

Starter Double Gear 11/49 T

420634741

$199.99

5

Intermediate Gear 37 Teeth

420634630

$88.99

6

Location Pin 10 M6x50

420229302

$3.17

7

Free Wheel Gear 64 Teeth

420434236

$104.99

8

Sparg Clutch Housing

420659263

$154.99

9

Sprag Clutch

420659113

$259.99

10

Flywheel Ass'y

420686897

$601.99

11

Torx Flange Screw M8 X 16

420440854

$4.44

12

Hex. Flange Nut M20 X 1.5

420842340

$17.05

13

Stator 14V 650W

420685924

$319.49

14

Torx Flange Screw M6 X 35

420440274

$1.01

15

Cable Cover

420251281

$8.49

16

Torx Screw M6X13

420240051

$0.90

17

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

18

O-Ring

420431580

$14.83

19

Torx Flange Screw M6 X 16

420440164

$2.19

20

Gasket | Included in gasket kit

420651262

$35.99

21

Ignition Cover Ass'y | Includes no. 21-22

420686851

$253.99

22

Hose Nipple

420256332

$17.53

23

Torx Flange Screw M6 X 45

420440324

$0.98

24

Tie Wrap 142X 3.2mm

420866722

$0.18
