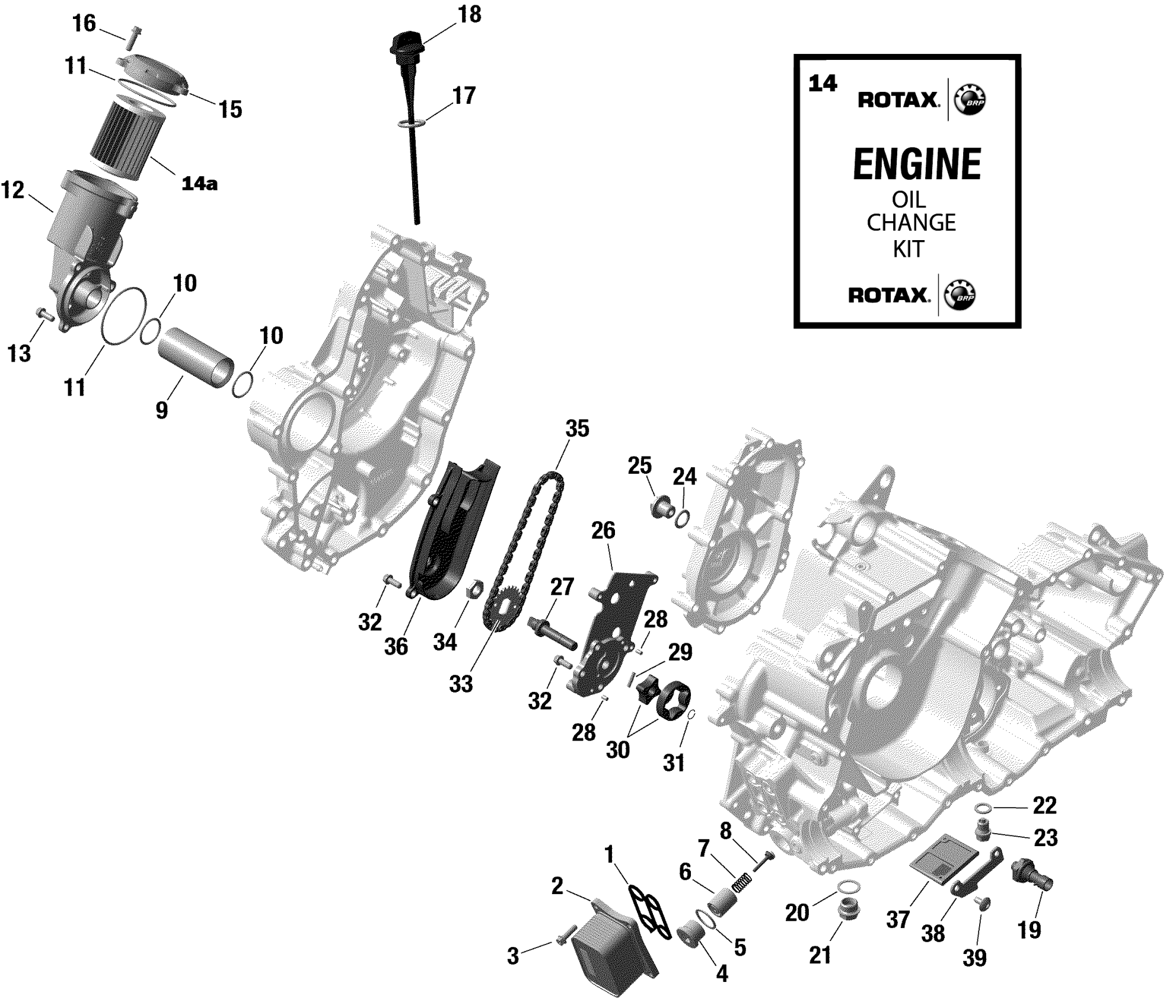

Can-Am Commander 700 EFI - DPS - 2022 ROTAX - Engine Lubrication Diagram

#

Description
Price

1

Gasket | Included in gasket kit

420431876

$27.66

2

Radiator

420890181

$92.28

3

Torx Flange Screw M6 X 16

420440164

$2.31

4

Plug Screw

420640271

$13.29

5

Gasket Ring

420650465

$11.52

6

Housing

420256487

$7.23

7

Compression Spring

420939485

$11.98

8

Pressure Relief Valve

420656370

$16.89

9

Oil Pipe

420856880

$23.05

10

O-Ring | Included in gasket kit

420631618

$0.89

11

O-Ring | Included in gasket kit

420230922

$0.74

12

Oil Filter Housing

420611210

$23.05

13

Torx Flange Screw M6 X 16

420440164

$2.31

14

CAN-AM Oil CHange Kit 0W40 ACE 650CC Single Cylinder

9779481

$57.82

14

CAN-AM Oil Change Kit 5W40 ACE 650C

9779480

$55.87

14a

Oil Filter

420256188

$11.14

15

Oil Filter cover

420612135

$11.11

16

Torx Flange Screw M6 X 20

420440207

$2.54

17

O-Ring

420631641

$0.98

18

Oil Lever Tube

420256821

$17.66

19

Oil Pressure Switch

420256915

$38.43

20

Crush Washer

420552280

$2.99

21

Drain Plug M18 X 1.5

420840278

$23.05

22

Copper Washer

420250640

$0.81

23

Magnetic Drain Plug M12

420241787

$16.89

24

O-Ring

420650352

$0.88

25

Plug Screw M14 X 1.5

420241662

$14.37

26

Oil Pump Cover

420210655

$46.12

27

Oil Pump Shaft

420220862

$46.12

28

Needle Pin

420929075

$1.74

29

Needle Pin

420232731

$1.56

30

Oil Pump Rotor Set

420256355

$36.89

31

Retaining Ring | Included in gasket kit

420245100

$1.37

32

Torx Flange Screw M6 X 16

420440164

$2.31

33

Drive Gear 25 Teeth

420254441

$7.37

34

Hexagonal Nut M12 X 1

420642059

$8.45

35

Silent Chain

420297055

$50.74

36

Chain Guide

420251341

$14.37

37

Oil Sieve

420256585

$32.28

38

Cover Sieve

420612072

$4.98

39

Torx Screw M6X13

420240051

$0.85
