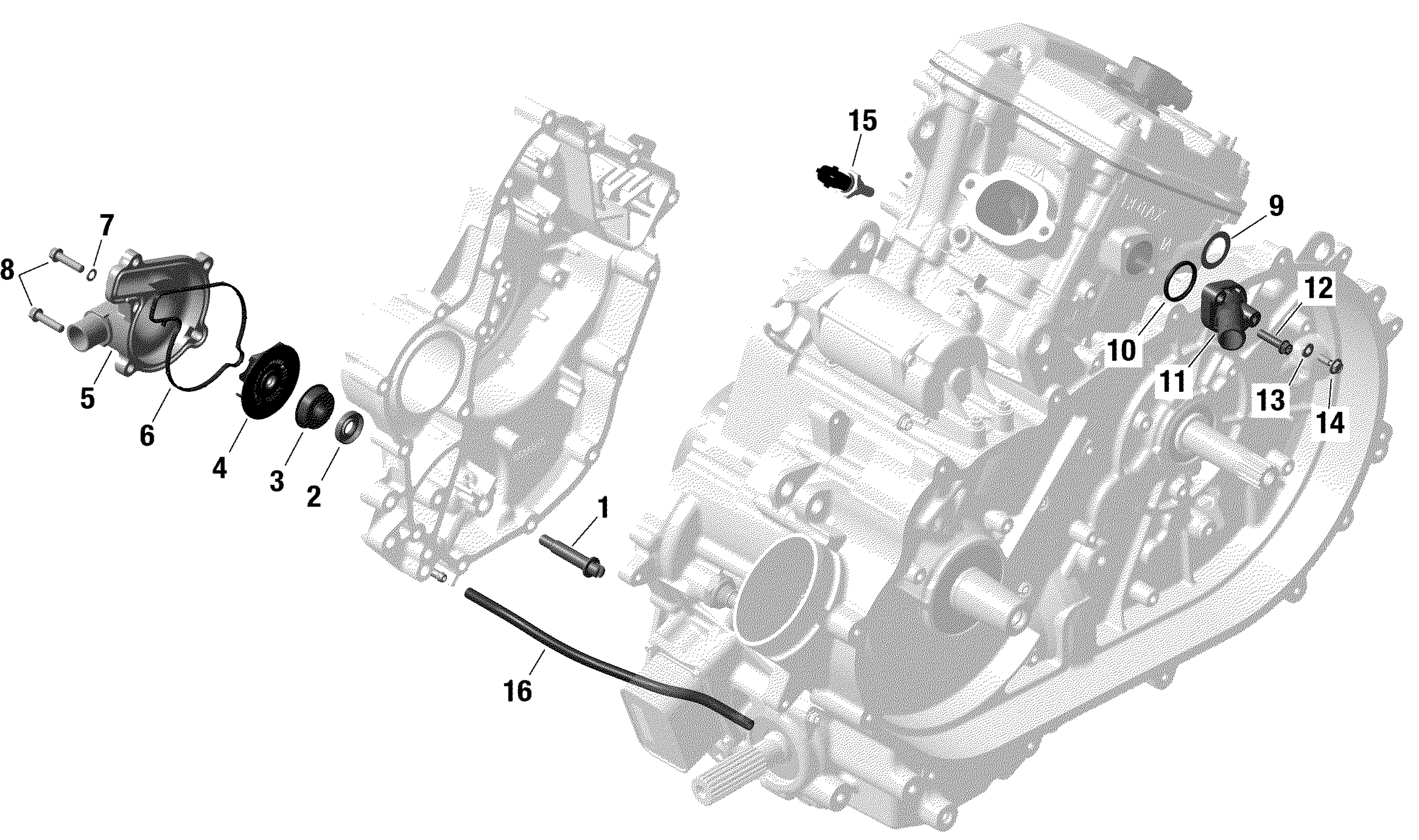

Can-Am Commander 700 EFI - DPS - 2022 ROTAX - Engine Cooling Diagram

#

Description
Price

1

Water Pump Shaft

420620261

$17.05

2

Oil Seal

420650315

$11.65

3

Rotary Seal

420650371

$43.49

4

Water Impeller

420922895

$20.99

5

Water Pump Housing

420622070

$62.99

6

Gasket | Included in gasket kit

420651245

$14.30

7

Seal Washer

420230416

$1.01

8

Torx Flange Screw M6 X 25

420440234

$3.06

9

Spacer Ass'y | Includes 40 to 41

420927837

$7.41

10

Thermostat Gasket

420650300

$8.57

11

Thermostat Cover

420222696

$3.17

12

Torx Flange Screw M6 X 25

420440234

$3.06

13

Gasket Ring

420650255

$4.12

14

Screw M5 X 16

420441621

$3.17

15

Temperature Sensor

278002895

$39.99

16

Fuel Tube

420974529

$34.99
