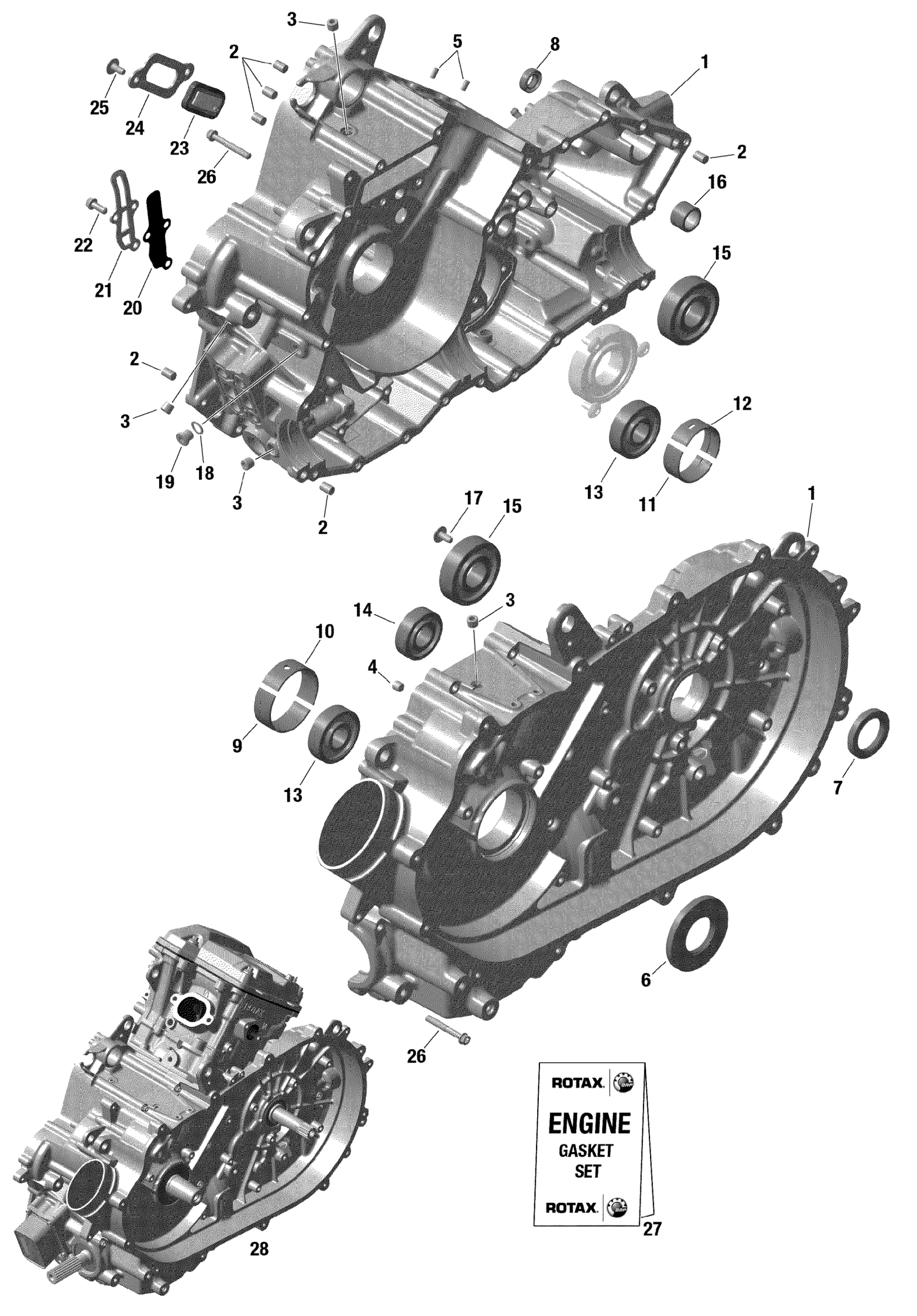

Can-Am Commander 700 EFI - DPS - 2022 ROTAX - Crankcase Diagram

#

Description
Price

1

Not Available As Spare Parts

XXX

Unavailable

2

Center Pin 8 X 12

420632010

$4.01

3

Plug Screw M10 X 1

420641323

$14.28

4

Plug Screw

420941611

$12.18

5

Drive Pin 5 X 10

420929650

$1.68

6

Oil Seal

420431402

$19.49

7

Oil Seal

420950089

$19.49

8

Oil Seal

420250455

$17.38

9

Half Bushing

420933498

$15.87

10

Bearing Sleeve

420933493

$26.49

11

Bearing Sleeve

420233376

$23.99

12

Bearing Sleeve

420233371

$23.99

13

Ball Bearing

420932093

$35.99

14

Ball Bearing 6204

420932433

$23.49

15

Ball Bearing

420932822

$30.49

16

Needle Bushing

420832240

$20.99

17

Torx Screw M6X13

420240051

$0.90

18

Oil Seal

420230154

$3.06

19

Plug Screw M10 X 1.5

420641326

$14.22

20

Reed Valve

420224721

$19.19

21

Reed Valve Stop

420224725

$11.63

22

Torx Flange Screw M6 X 16

420440164

$2.19

23

Reed Valve Ass'y | Included in gasket kit

420224771

$46.49

24

Reed Valve Membrane

420612085

$11.65

25

Torx Screw M6X13

420240051

$0.90

26

Torx Flange Screw M6 X 45

420440324

$0.98

27

Engine Gasket Set

420684158

$487.49

28

Long-Block SSV 650

420065001

$3,887.99
