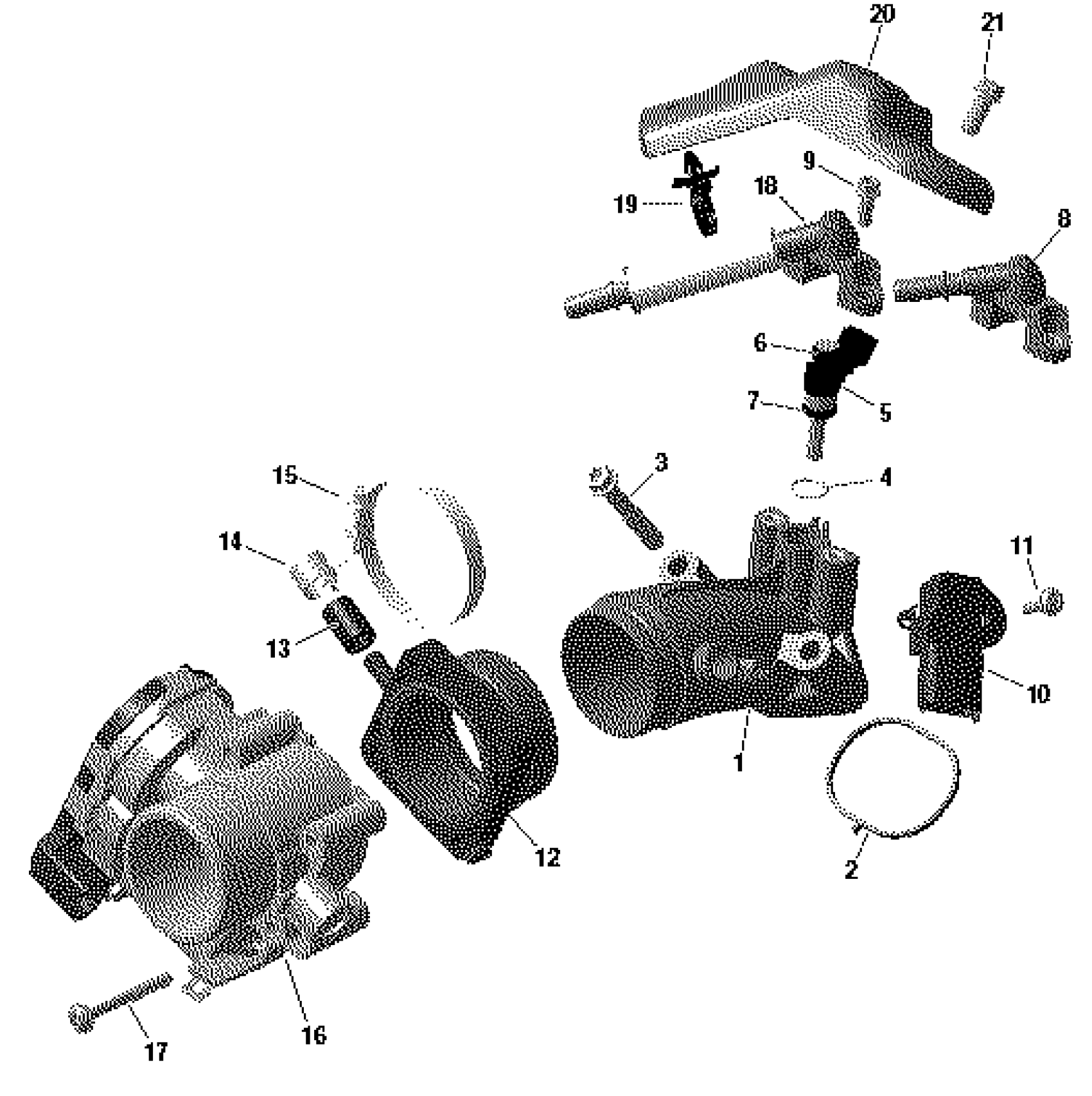

Can-Am Commander 700 EFI - DPS - 2022 ROTAX - Air Intake Manifold And Throttle Body - 700 EFI Diagram

#

Description

Price

1

Intake Adaptor

420267555

$48.99

2

Gasket | Included in gasket kit

420630655

$4.86

3

Torx Flange Screw M8 X 55

420641213

$7.41

4

O-Ring

420230451

$12.11

5

Fuel Injector EV-SE

420874859

$116.49

8

Fuel Rail

420874935

$17.73

9

Torx Flange Screw M6 X 16

420440164

$2.19

10

Pressure And Temperature Sensor

420874658

$119.99

11

Torx Flange Screw M6 X 16

420641588

$2.11

12

Intake Socket

420267212

$43.99

13

Cap

420201910

$6.82

14

Spring Type Clamp 14

420853512

$4.55

15

Clamp 63

420851086

$12.17

16

Throttle Body

420893149

$646.49

17

Torx Flange Screw M6 X 50

420441588

$4.44

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable
