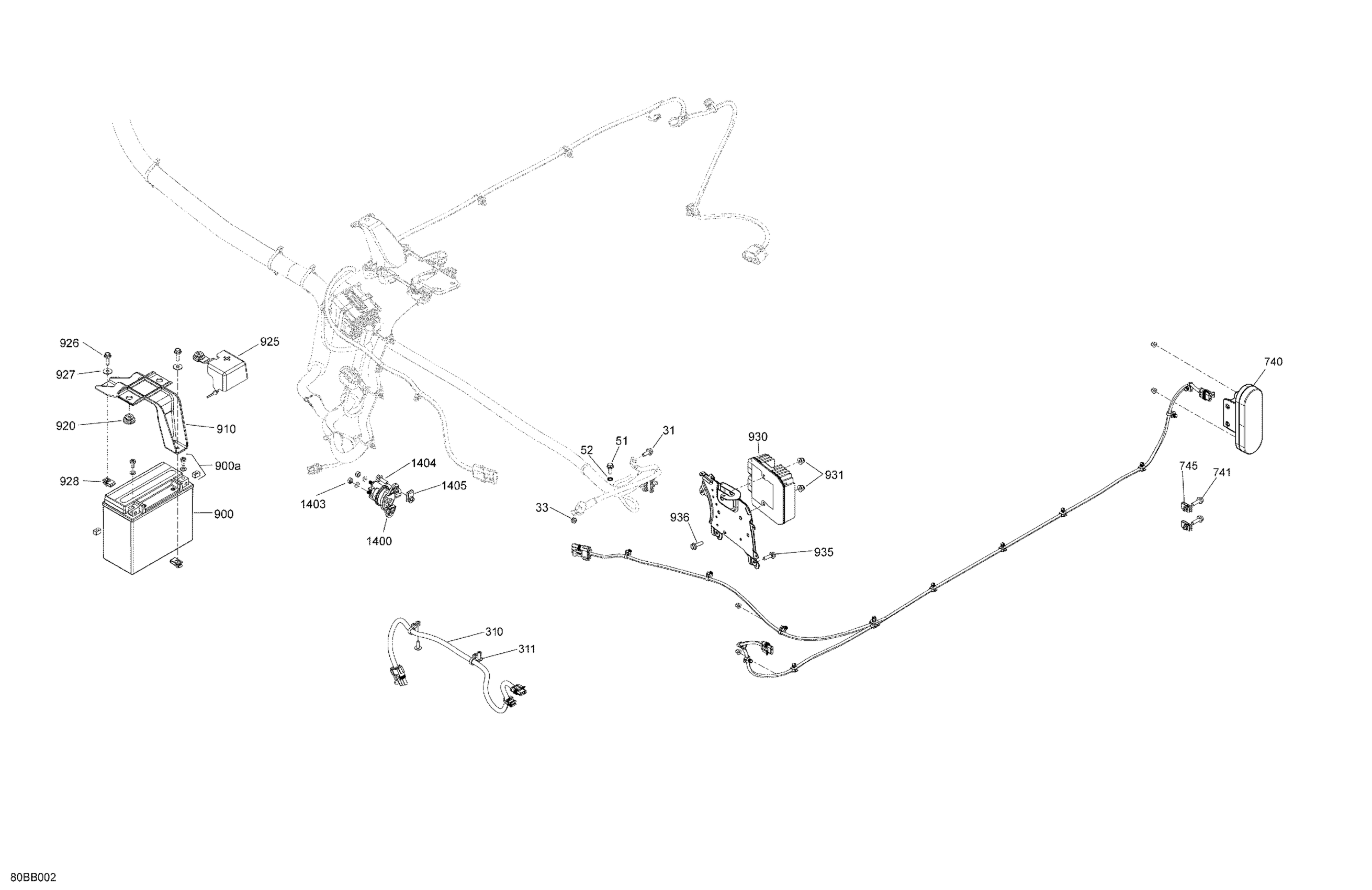

Can-Am 002 - Maverick Trail 700 - DPS - International, 2022 08- Electric - Rear Section Diagram

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Elastic Stop Nut M6, Brass

232561200

$4.23

Elastic Stop Nut M6, Brass

232561200

$4.23

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

External Serrated Lock Washer 6 mm

234461608

$1.15

Rear Harness

710006551

$43.99

Screw PT Type K-50 X 16

250000959

$2.11

Tail Light

710004497

$111.49

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

Battery Bolt Kit

250000282

$7.29

Fixation Plate

710005673

$13.49

Stopper Rubber

705014429

$5.95

Battery Cable Cap

710005930

$10.49

Hex. Flange Screw M6 X 20

207662054

$1.01

Stainless Steel Flat Washer

234062670

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

Voltage Regulator

710005842

$189.99

Hex. Flange Elastic Nut M6

233261494

$1.58

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Hex Screw Washer Head M8 X 20

207582054

$3.17

Starter Relay

278003012

$42.49

Elastic Stop Nut M6, Brass

232561200

$4.23

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

Panel Nut M6 X 1.0

250100198

$2.11
