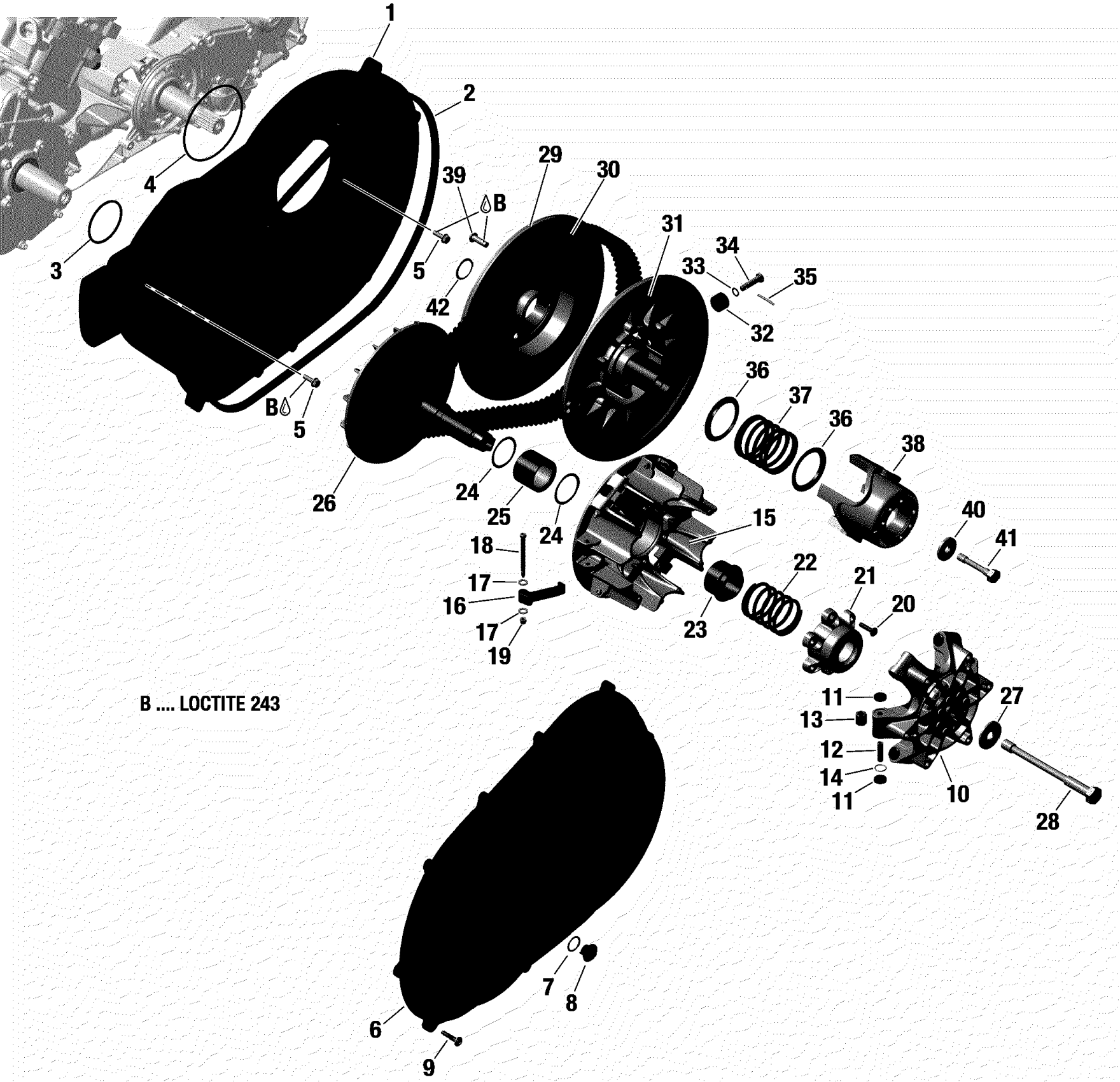

Can-Am Maverick Sport 1000 - BASE - 2020 Transmission Diagram

#

Description
Price

1

CVT Air Guide

420212604

$202.21

2

Gasket

420450400

$29.82

3

O-Ring

420430408

$4.87

4

O-Ring

420450431

$4.87

5

Hex.Screw M6 X 20

420441311

$4.87

6

Variator Cover

420212500

$184.30

7

O-Ring

420250050

$8.93

8

Cap

420441820

$10.55

9

Torx Screw 6X30

420441575

$2.91

10

Governor Cup Ass'y

420280727

$170.12

11

Slider Shoe Set

420281296

$41.01

12

Roller Axle

417223257

$6.37

13

Roller Thrust

420229991

$17.88

14

O-Ring

420230456

$1.61

15

Outer Half Ass'y

420280608

$276.84

16>19

Centrifugal Lever Kit | Includes no. 16-19

420248684

$219.37

16>19

Centrifugal Lever Kit | Includes no. 18-21

420248661

$344.75

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Torx Flange Screw M6 X 25

420841549

$1.91

21

Bearing Cover

420280616

$64.90

22

Compression Spring

420638119

$32.81

22

Compression Spring

420638115

$21.61

23

Spring Retainer

420427211

$43.25

24

Washer

420427220

$4.49

25

Needle Roller Bearing With Sleeves

420832351

$44.75

26

Inner Half Ass'y

420280597

$303.70

27

Washer

420245690

$4.49

28

Hexagonal Screw M14X 165

420841161

$26.84

29

Inner Half Ass'y

420280635

$159.67

30

Drive Belt

417300551

$167.13

31

Outer Half Ass'y

420280627

$330.57

32

Pulley Roller

417127016

$22.36

33

Lock Washer 8 mm

250200009

$2.00

34

Pivot Stud

417127294

$13.18

35

Dowel Pin

420629200

$1.97

36

Swivel Abutment

417127116

$7.82

37

Spring

417127061

$44.00

38

Cam

420280647

$172.36

39

Binding Head Screw M8X25

420441981

$15.64

40

Collar Washer

420427243

$14.91

41

Hexagonal Screw M10X 61

420441990

$17.88

42

Distance Ring

420647263

$24.60
