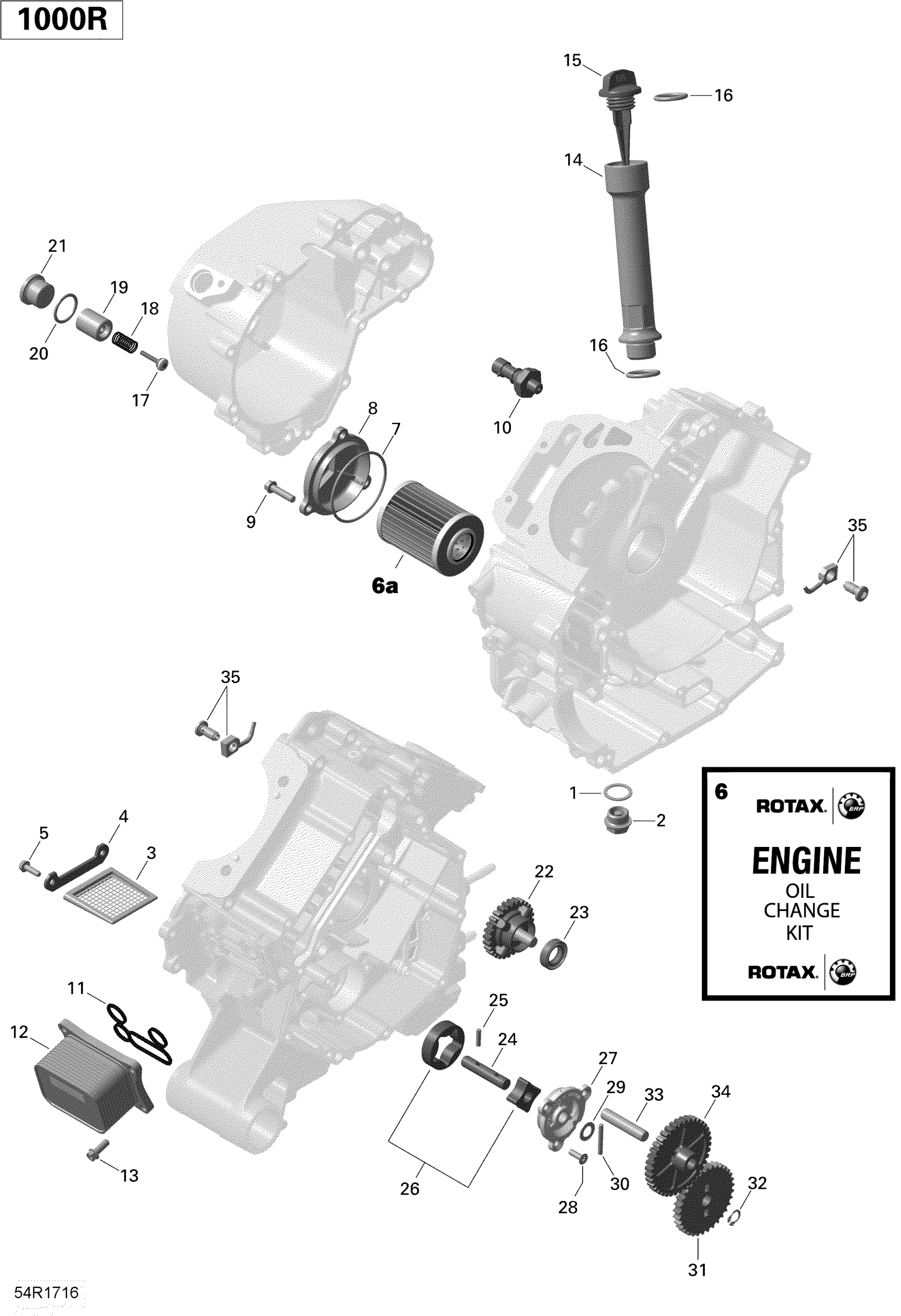

Can-Am Maverick Sport 1000 - BASE - 2020 Engine Lubrication Diagram

#

Description
Price

1

Crush Washer

420552280

$3.43

2

Drain Plug M18 X 1.5

420840278

$22.36

3

Oil Sieve

420256322

$26.09

4

Cover Sieve

420612070

$4.09

5

Taptite Screw M5 X 16

420941928

Unavailable

6

CAN-AM Oil Change Kit 5W40 500 CC +

9779488

$67.13

6

Can-Am Oil Change Kit 0W40 500 Cc +

9779259

$69.37

6a

Oil Filter

420256188

$12.79

7

O-Ring

420230923

$2.97

8

Oil Filter cover

420612135

$10.78

9

Torx Flange Screw M6 X 25

420641238

$3.07

10

Oil Pressure Switch

420256915

$37.28

11

Oil Seal

420430325

$7.60

12

Radiator

420890181

$95.49

13

Torx Flange Screw M6 X 16

420440164

$1.67

14

Oil Lever Tube

420856925

$10.30

15

Oil Dipstick

420856810

$4.09

16

O-Ring

420631640

$2.00

17

Pressure Relief Valve

420656370

$16.39

18

Compression Spring

420939485

$11.37

19

Housing

420256487

$7.01

20

Gasket Ring

420650465

$11.18

21

Plug Screw

420640271

$13.09

22

Idle Gear Ass'y, 28 Teeth | Includes 13 to 16

420434307

$84.30

23

Oil Seal

420430555

$17.13

24

Oil Pump Shaft

420237059

$27.58

25

Needle Pin

420232731

$1.79

26

Oil Pump Rotor

420256348

$70.87

27

Oil Pump Cover

420210646

$45.49

28

Torx Head Screw M5 X 16

420640823

$1.79

29

Thrust Washer

420827590

$3.75

30

Needle Pin

420232431

$4.21

31

Oil Pump Gear, 33 Teeth

420434320

$13.09

32

Circlip

504152282

$3.01

33

Location Pin 10 M6x50

420229302

$3.01

34

Idle Gear, 38 Teeth

420434300

$13.09

35

Not Available As Spare Parts

XXX

Unavailable
