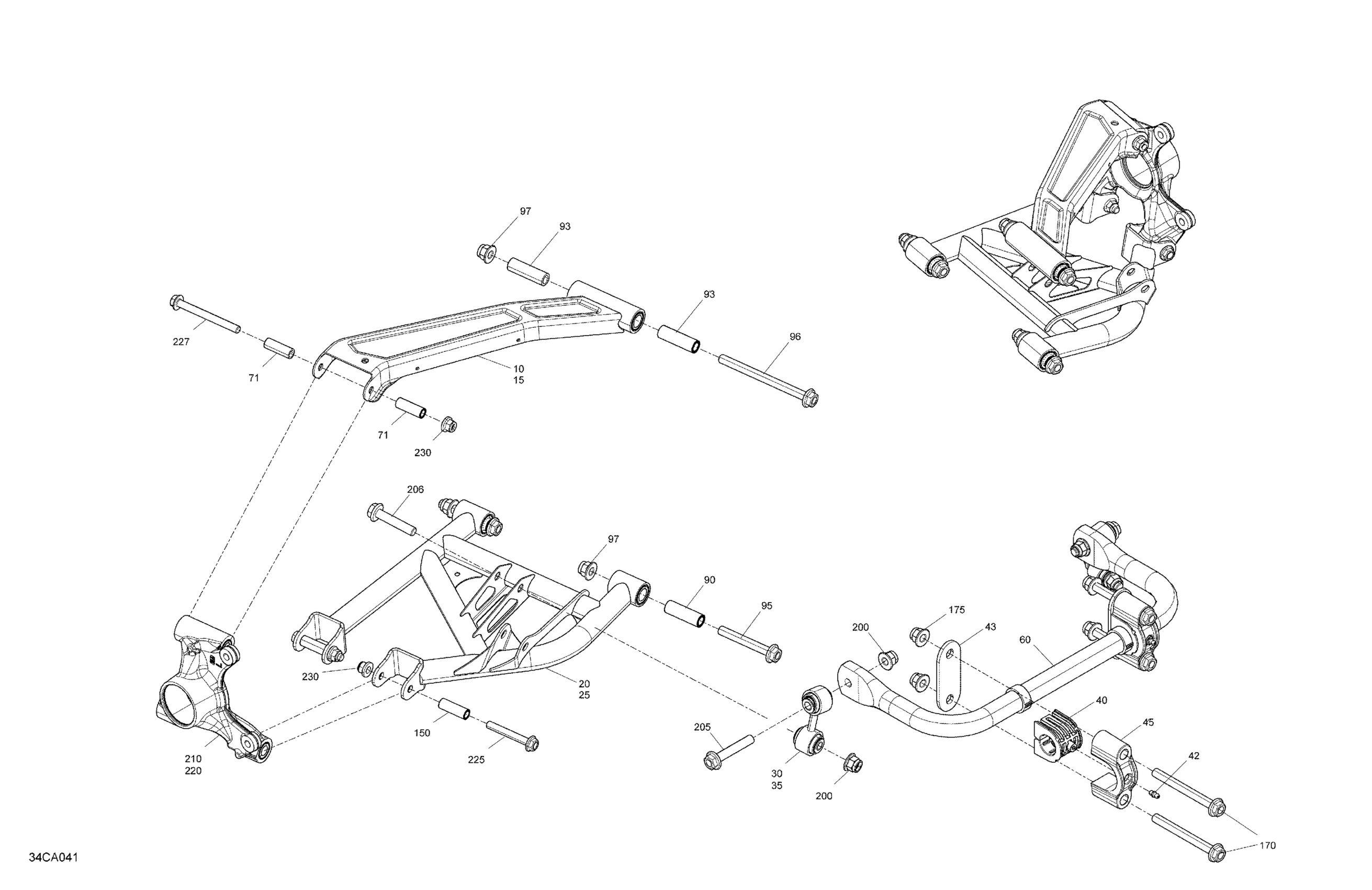

Can-Am Maverick Trail 800 - BASE_DPS - 2021 Suspension - Rear - Built After January 18th 2021 Diagram

#

Description
Price

10

LH Upper Suspension Arm Ass'y With Bushing This part replaces 706003711.

715010682

$229.99

15

RH Upper Suspension Arm Ass'y With Bushing This part replaces 706003712.

715010693

$229.99

20

LH Lower Suspension Arm Ass'y With Bushing This part replaces 706003723.

715010702

$229.99

25

RH Lower Suspension Arm Ass'y With Bushing This part replaces 706003724.

715010709

$229.99

30

Sway Bar Double Link

706003004

$111.49

35

Sway Bar Double Link

706003003

$111.49

40

Stabilizer Bar Bushing

706004266

$8.43

42

Grease Fitting

408200700

$3.49

43

Plate Support

706002977

$5.09

45

Clamp

706002970

$16.49

60

Sway Bar Ass'y

706002716

$126.99

71

Not Available As Spare Part - Friction Washer

Unavailable

90

Suspension Arm Bushing

706003528

$3.91

93

Suspension Arm Bushing

706004829

$3.91

95

Flange Screw M12 X 85

250000859

$4.76

96

Flange Screw M12 X 145

250000861

$6.67

97

Elastic Flange Nut M12

233221466

$2.89

150

Not Available As Spare Part - Friction Washer

Unavailable

170

Screw Flange M12 X 115

250000860

$6.67

175

Elastic Flange Nut M12

233221466

$2.89

200

Elastic Flange Nut M12

233221466

$2.89

205

Hex. Flange Screw M12 X 70

250000858

$3.80

206

Flange Screw M12 X 60

250000857

$7.41

210

LH Rear Knuckle Anchorage Ass'y | Includes 210 to 210c

715010560

$126.99

220

RH Rear Knuckle Anchorage Ass'y | Includes 220 to 220c

715010561

$126.99

225

Hex. Flange Screw M10 X 70

207607046

$2.96

227

Hex Flange Screw DIN.6921 - Call your local BRP dealership

230600046

$3.17

230

Hex. Flange Elastic Nut M10

233201436

$2.11
