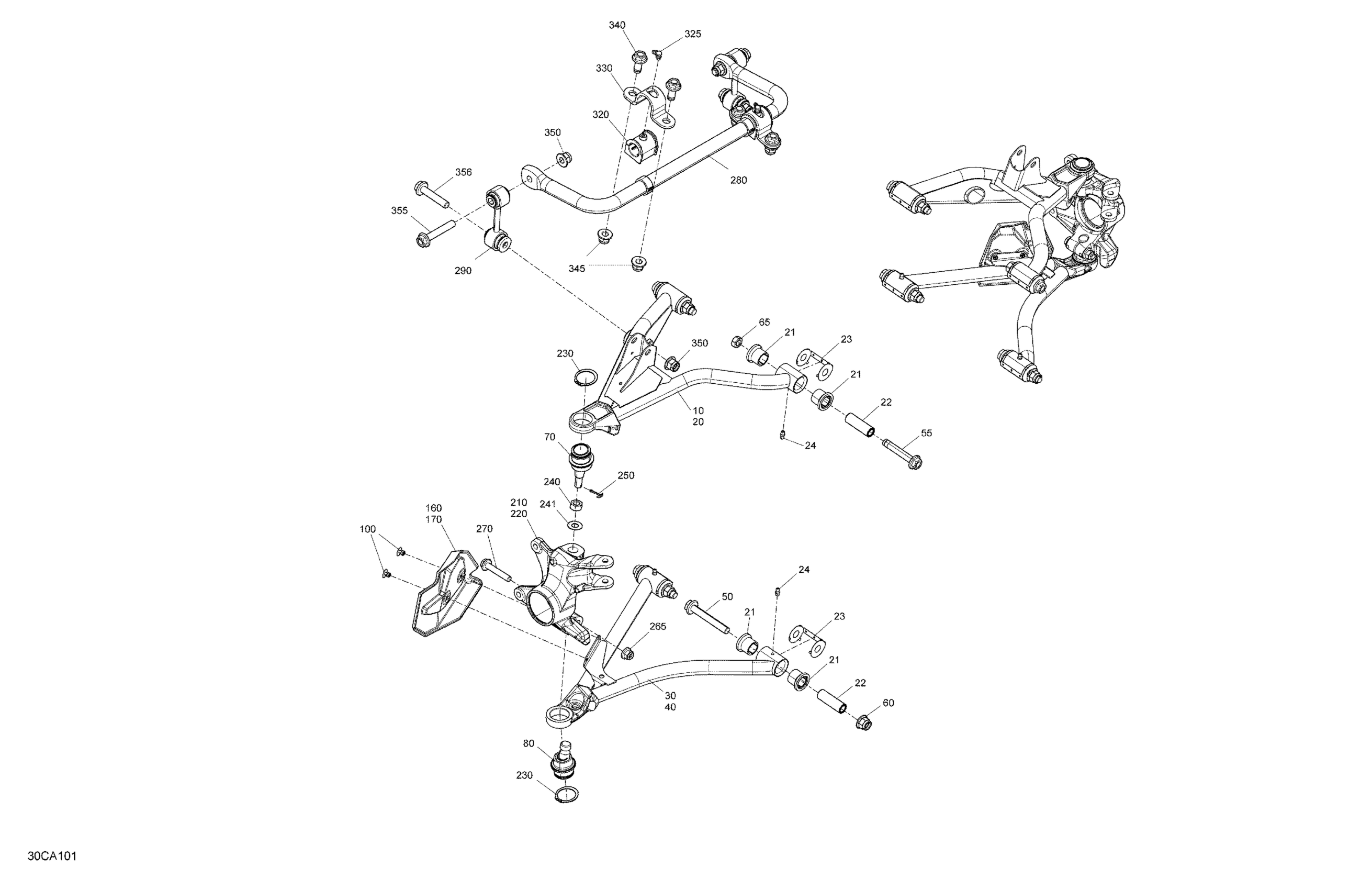

Can-Am Maverick Trail 800 - BASE_DPS - 2021 Suspension - Front - Built Before January 17th 2021 Diagram

#

Description
Price

10

Black, LH Upper Front Suspension Arm

706202810

$205.94

20

Black, RH Upper Front Suspension Arm

706202811

$205.94

21

Suspension Arm Bushing

706204409

$8.40

22

Interior Bushing

706202257

$7.27

23

Wear Plate

706202300

$1.69

24

Grease Fitting

408200700

$3.21

30

Black, LH Lower Front Suspension Arm

706202824

$205.94

40

Black, RH Lower Front Suspension Arm

706202825

$205.94

50

Flange Screw M12 X 85

250000859

$4.54

55

Flange Screw M12 X 85

250000859

$4.54

60

Elastic Flange Nut M12

250001195

$2.46

65

Elastic Flange Nut M12

250001195

$2.46

70

Ball Joint

706203084

$34.30

80

Ball Joint

706202045

$34.30

100

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

160

RH CV joint Guard

706202135

$8.48

170

LH CV joint Guard

706202134

$8.48

210

LH Front Knuckle

706202842

$196.99

220

RH Front Knuckle

706202844

$196.99

230

Circlip

293370035

$2.48

240

Nut M12

250100099

$1.88

241

Hardened Washer

706200281

$2.69

250

Cotter Pin

211400017

$0.28

265

Hex. Flange Elastic Nut M10

233201436

$2.00

270

Hex. Flange Screw M10 X 55

207605546

$2.00

280

Sway Bar Ass'y

706202846

$91.01

290

Sway Bar Double Link

706202937

$104.45

320

Stabilizer Bar Bushing

706204414

$7.24

325

Grease Fitting 90°

293550056

$1.04

330

Clamp

706203437

$13.40

340

Hex. Flange Screw DIN.6921

250000951

$6.28

345

Elastic Flange Nut M12

250001195

$2.46

350

Elastic Flange Nut M12

250001195

$2.46

355

Hex. Flange Screw M12 X 70

250000858

$3.57

356

Flange Screw M12 X 60

250000857

$6.99
