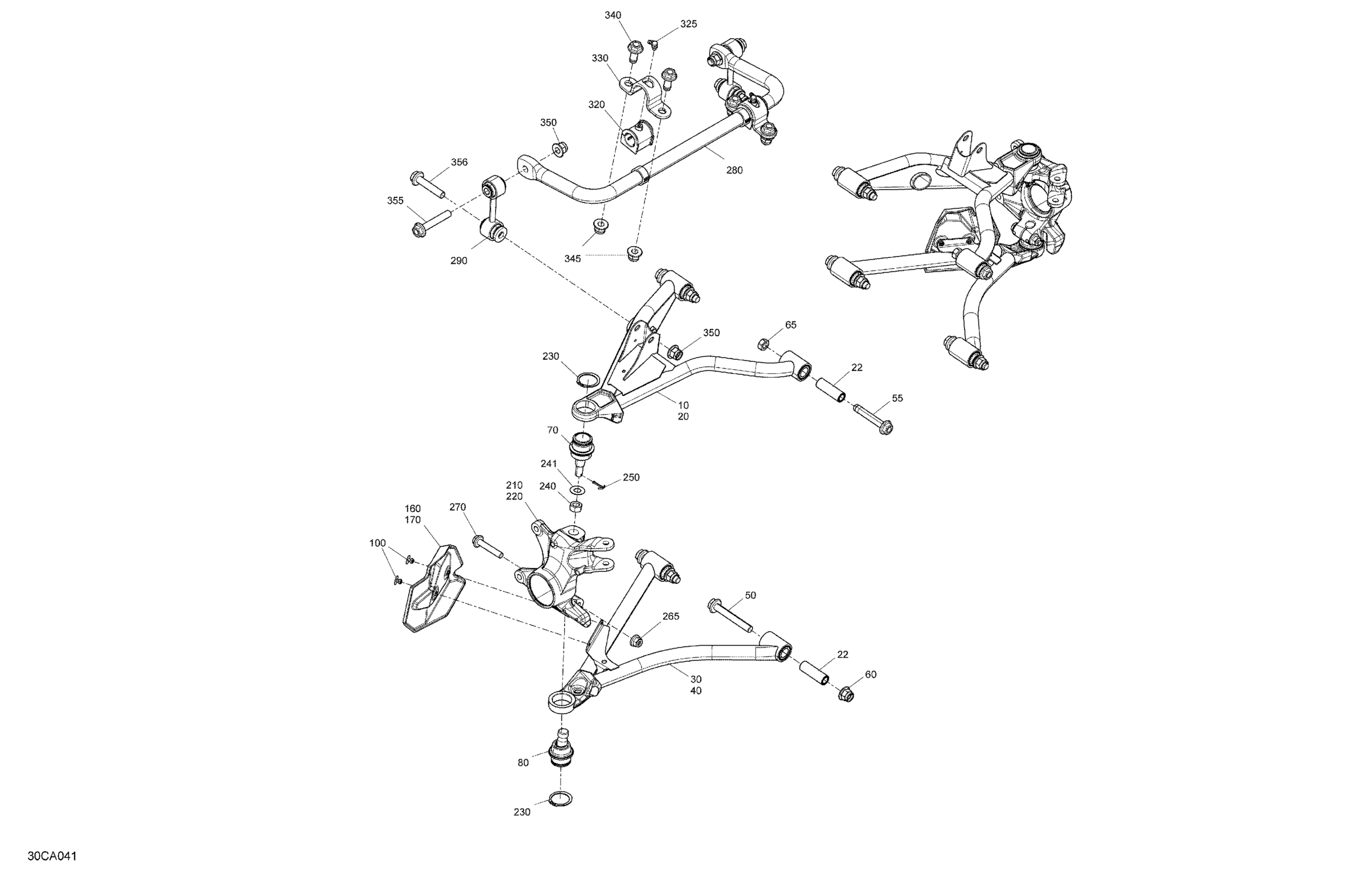

Can-Am Maverick Trail 800 - BASE_DPS - 2021 Suspension - Front - Built After January 18th 2021 Diagram

LH Upper Suspension Arm Balljoint Bushing Ass'y This part replaces 706203892.

715010747

$232.81

RH Upper Suspension Arm Balljoint Bushing Ass'y This part replaces 706203893.

715010756

$232.81

Suspension Arm Bushing

706003528

$3.36

LH Lower Suspension Arm Balljoint Bushing Ass'y This part replaces 706203904.

715010765

$232.81

RH Lower Suspension Arm Balljoint Bushing Ass'y This part replaces 706203905.

715010772

$232.81

Flange Screw M12 X 85

250000859

$4.54

Flange Screw M12 X 85

250000859

$4.54

Elastic Flange Nut M12

233221466

$2.46

Elastic Flange Nut M12

233221466

$2.46

Ball Joint

706203084

$34.30

Ball Joint

706202045

$34.30

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

RH CV joint Guard

706202135

$8.48

LH CV joint Guard

706202134

$8.48

LH Front Knuckle

706202842

$196.99

RH Front Knuckle

706202844

$196.99

Circlip

293370035

$2.48

Nut M12

250100099

$1.88

Hardened Washer

706200281

$2.69

Cotter Pin

211400017

$0.28

Hex. Flange Elastic Nut M10

233201436

$2.00

Hex. Flange Screw M10 X 55

207605546

$2.00

Sway Bar Ass'y

706202846

$91.01

Sway Bar Double Link

706202937

$104.45

Stabilizer Bar Bushing

706204414

$7.24

Grease Fitting 90°

293550056

$1.04

Clamp

706203437

$13.40

Hex. Flange Screw DIN.6921

250000951

$6.28

Elastic Flange Nut M12

233221466

$2.46

Elastic Flange Nut M12

233221466

$2.46

Hex. Flange Screw M12 X 70

250000858

$3.57

Flange Screw M12 X 60

250000857

$6.99
