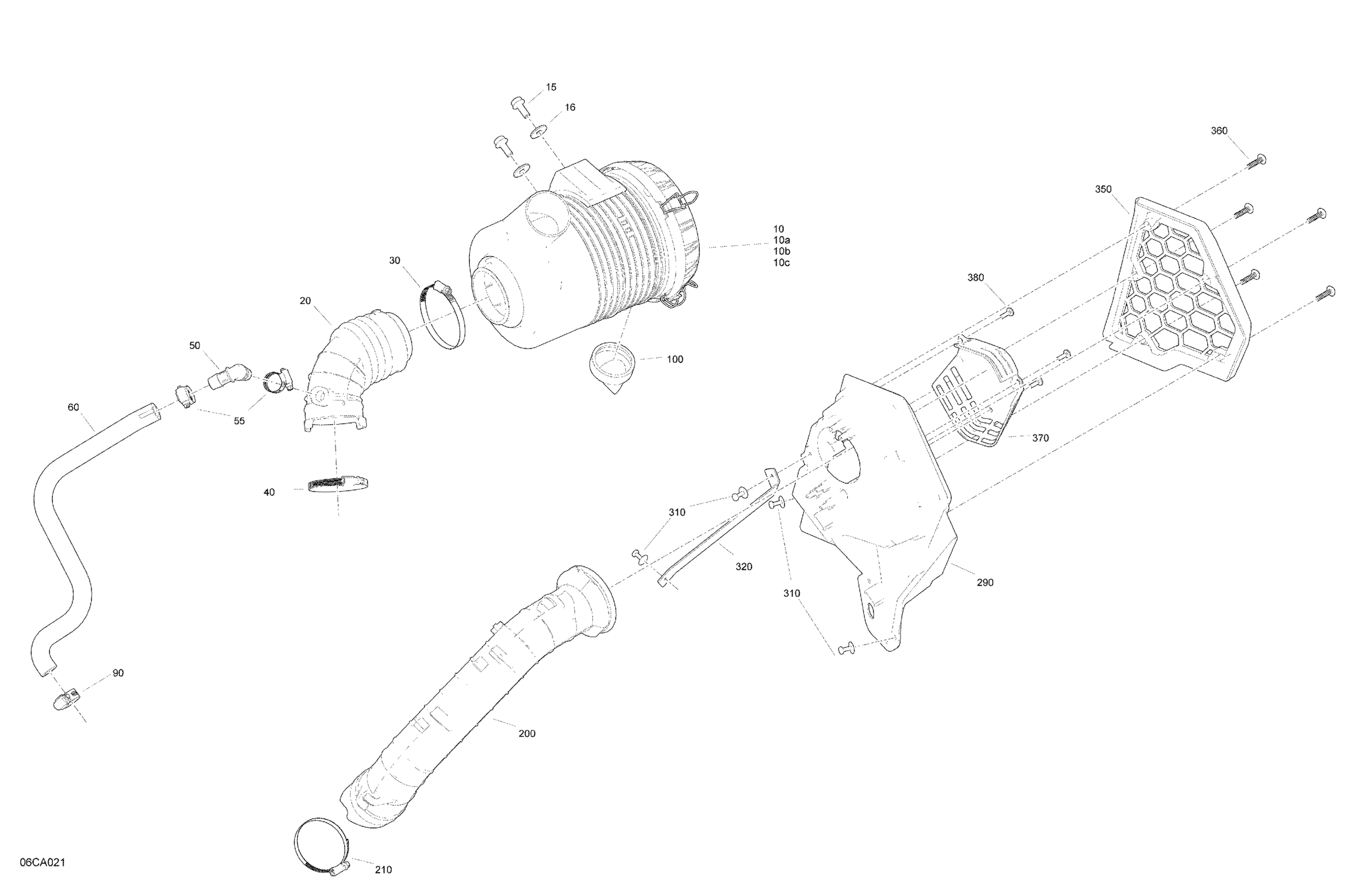

Can-Am Maverick Sport 1000 - BASE - 2021 Engine - Air Intake Diagram

Description

Price

Intake Silencer Ass'y | Includes 10 to 10b

707801033

$175.35

10a

Silencer Air Cover Ass'y | Includes 10a to 10a1

715900515

$87.66

10c

O-Ring

715900514

$17.66

10b

Air Filter

715900394

$50.34

Hex. Flange Screw M8 X 20

207682044

$0.92

Flat Washer 8 mm

234082410

$1.11

Air Intake Adapter

707800715

$27.66

Norma Clamp

293650096

$3.09

Norma Clamp

293650091

$4.60

Elbow Fitting 90

293710155

$8.45

Tridon Gear Clamp

293650173

$2.46

Blow-By Hose | Engine HD8

707800716

$27.66

Tridon Gear Clamp

293650173

$2.46

100

Duct Bill Valve

715003114

$12.91

200

Inlet Hose

707800717

$46.12

210

Norma Clamp

293650091

$4.60

290

Air Intake Box

707800865

$36.89

310

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

320

Support

707800784

$5.52

350

Air Intake Grid

707800751

$46.12

360

Hex. Screw Pt K60 X 25

250000980

$1.74

370

Baffle

707800762

$16.89

380

Torx Screw K50 X 16

250000720

$1.39
