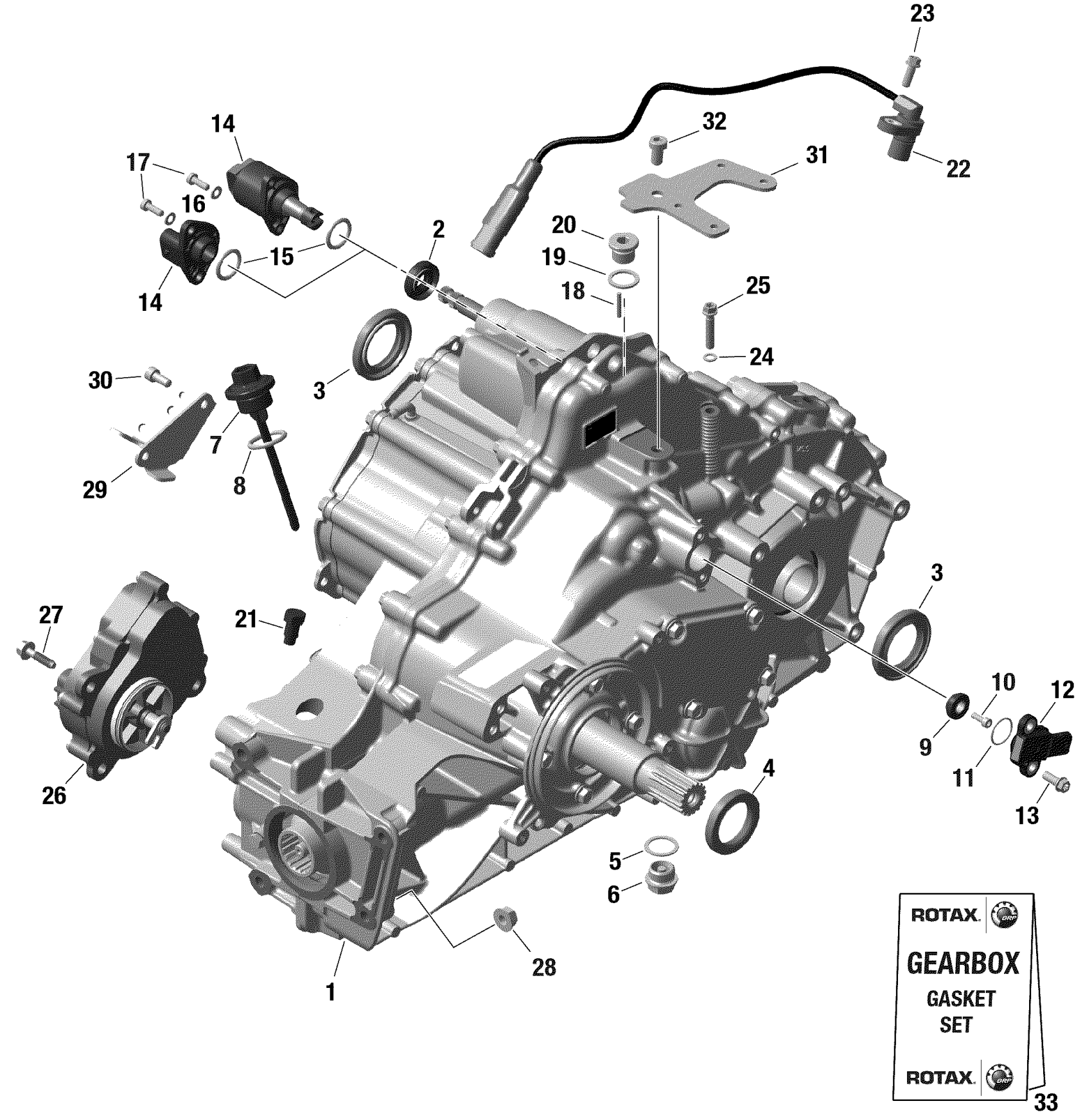

Can-Am Defender HD8 - BASE_DPS_XT - 2021 Rotax - Gear Box And Components - 804 Diagram

#

Description
Price

1

Gear Box

420686806

$2,859.99

2

Oil Seal

420250452

$17.59

3

Oil Seal

420831185

$19.99

4

Oil Seal

420950089

$19.49

5

Crush Washer

420552280

$3.70

6

Drain Plug M18 X 1.5

420840278

$23.99

7

Oil Dipstick

420256806

$17.05

8

O-Ring

420631640

$2.11

9

Magnet

420256000

$17.99

10

Allen Screw M4 X12

420440292

$1.01

11

O-Ring

420230405

$4.55

12

Angle Of Rotation Sensor

420265122

$82.99

13

Torx Flange Screw M6 X 16

420440162

$3.17

14

Servomotor

420265845

$229.99

15

O-Ring | Included in gasket set gearbox

420450450

$2.19

16

Washer 5.3

420927574

$1.90

17

Allen Screw M5 X 14

420240150

$2.19

18

Needle Pin

420932840

$3.17

19

O-Ring

420430622

$4.44

20

Plug Screw M16 X 1.5

420240234

$14.28

21

Plug Screw M10X10

420241905

$2.24

22

Camshft Position Sensor Ass'y

420265727

$109.99

23

Torx Flange Screw M6 X 16

420440162

$3.17

24

Seal Washer

420230415

$1.79

25

Torx Flange Screw M6 X 30

420440647

$2.00

26>26c

Actuator Ass'y 4 pins

715900613

$319.99

26a

O-Ring

293300117

$4.44

26b

Shifting Fork

415129175

$16.49

26c

Circlip | 4X4

293370042

$3.17

27

Collar Screw M6 x 25

420441951

$2.19

28

Hex. Nut M8

420842619

$2.35

29

Support

420851548

$20.99

30

Allen Screw M6X14

420840394

$1.58

31

Support Plate

420651046

$13.24

32

Torx Flange Screw M8 X 16

420440854

$4.44

32

Flat Washer 8.4 mm

420250315

$1.15

33

Gearbox Gasket Set

420686603

$99.49
