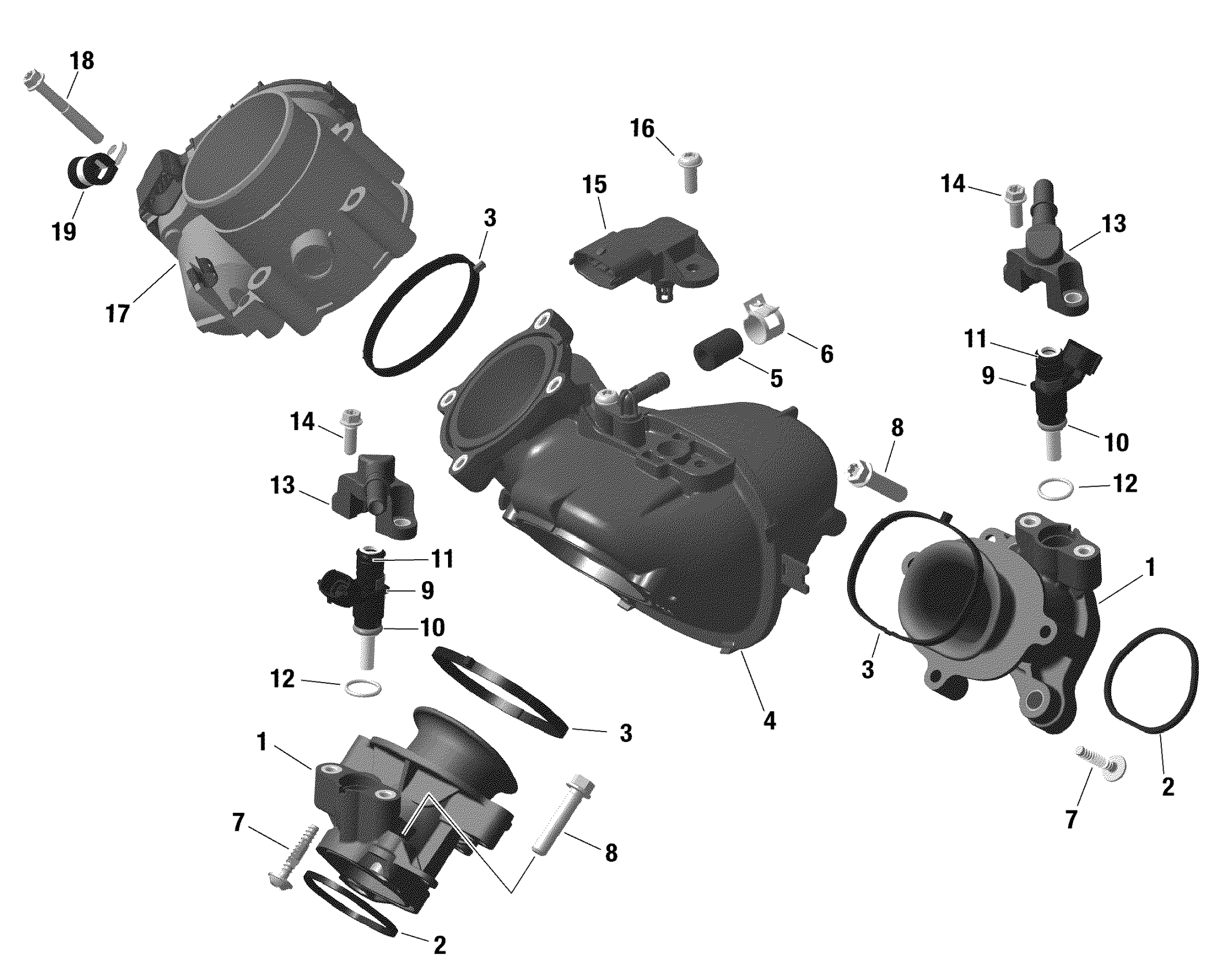

Can-Am Maverick Sport 1000 - BASE - 2021 Rotax - Air Intake Manifold And Throttle Body Diagram

Description

Price

Air Intake Manifold

420267610

$62.66

Gasket

420630642

$5.06

Gasket | Included in gasket kit

420431900

$5.04

Air Inlet Manifold

420667800

$62.66

Cap

420201910

$5.36

Spring Type Clamp 14

420853512

$4.19

Torx Screw 6X30

420441575

$2.91

Torx Flange Screw M8 X 35

420641188

$7.01

9>11

Injection Valve Ass'y | Includes no. 7-9

420874886

Unavailable

O-Ring

420431890

$5.69

O-Ring

420631220

$13.18

O-Ring

420631296

$0.72

Fuel Rail

420874901

$22.36

Torx Flange Screw M6 X 16

420440162

$3.01

Pressure And Temperature Sensor

707000995

$81.31

Torx Flange Screw M6 X 16

420641588

$2.00

Throttle Body Socket Ass'y

420892596

$433.55

Torx Flange Screw M6 X 45

420440324

$0.93

Cable Clamp

420251692

$11.33
