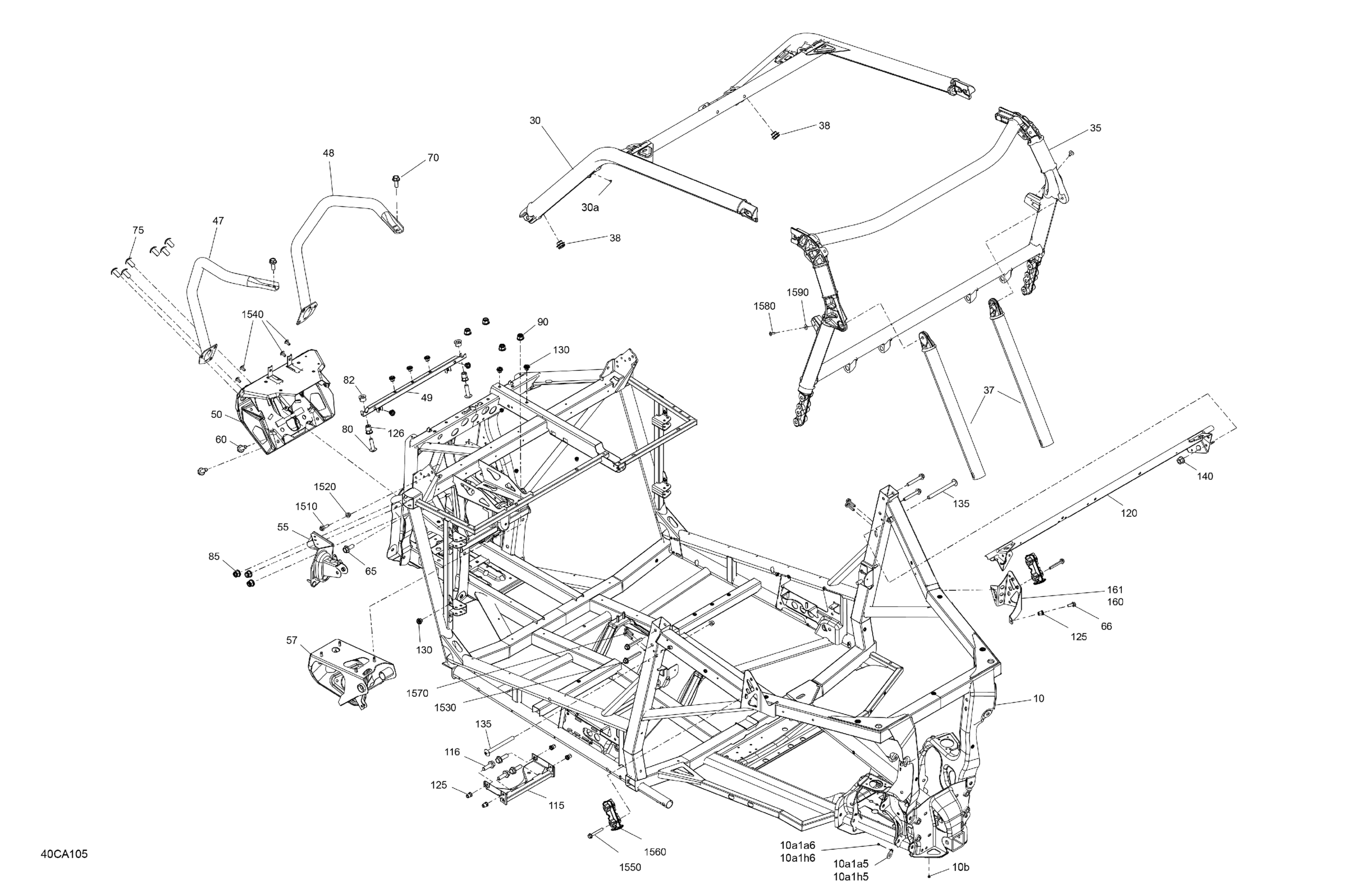

Can-Am Maverick Trail 1000 - BASE_DPS - 2021 Frame - System Diagram

Chassis Kit | Includes 10 to 10a2w3

715009394

$2,969.99

Shim

705209479

$2.96

Pop Rivet 3/16"

390402200

$0.30

Shim

705209479

$2.96

Pop Rivet 3/16"

390402200

$0.30

Pop Rivet 3/16"

390402200

$0.30

Deep Black, Front Cage Kit

715009358

$609.99

Pop Rivet 3/16"

390402200

$0.30

Deep Black, Rear Cage Kit

715009370

$619.99

Deep Black, Rear Cage Extension

705211125

$44.99

Insert Half Hex Body M6 x 1.0

250100199

$2.91

LH Front Bumper

705206303

$107.43

RH Front Bumper

705206308

$107.43

Cross Member

705206313

$35.79

Deep Black, Front Bumper

705209043

$453.70

Brake Support

705206217

$46.24

DPS Support

705206294

$64.15

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

Torx Truss Screw M8 X 16

250000746

$3.19

Hex Torx Truss M8 X30

250000745

$2.96

Bushing

705207229

$10.67

Hex. Elastic Flange Nut M8

233281416

$1.43

Hex. Elastic Flange Nut M8

233281416

$1.43

Bearing Support

705211563

$44.00

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

Central Tube

705209434

$142.51

Insert Half Hex Body M8 x 1.25

293450307

$1.97

Insert Half Hex Body M8 x 1.25

293450307

$1.97

Insert Half Hex Body M6 x 1.0

250100199

$2.91

Torx Truss M8 X 90

250000806

$7.06

Hex. Flange Nut

233081436

$1.87

LH Rear Anchorage Support

705211569

$17.88

RH Rear Anchorage Support

705211571

$17.88

Hex. Flange Screw M10 X 35

250000855

$1.67

Flange Elastic Nut M10

233201466

$3.01

Hex. Flange Screw M10 X 70

207607056

$3.88

Torx Truss Screw M8 X 16

250000746

$3.19

Hex. Flange Screw M8 x 60

207686044

$2.94

Sleeve

705210648

$8.42

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.63

Torx Head Screw M6 X 16

250000717

$2.00

Stainless Steel Flat Washer

234062670

$2.00
