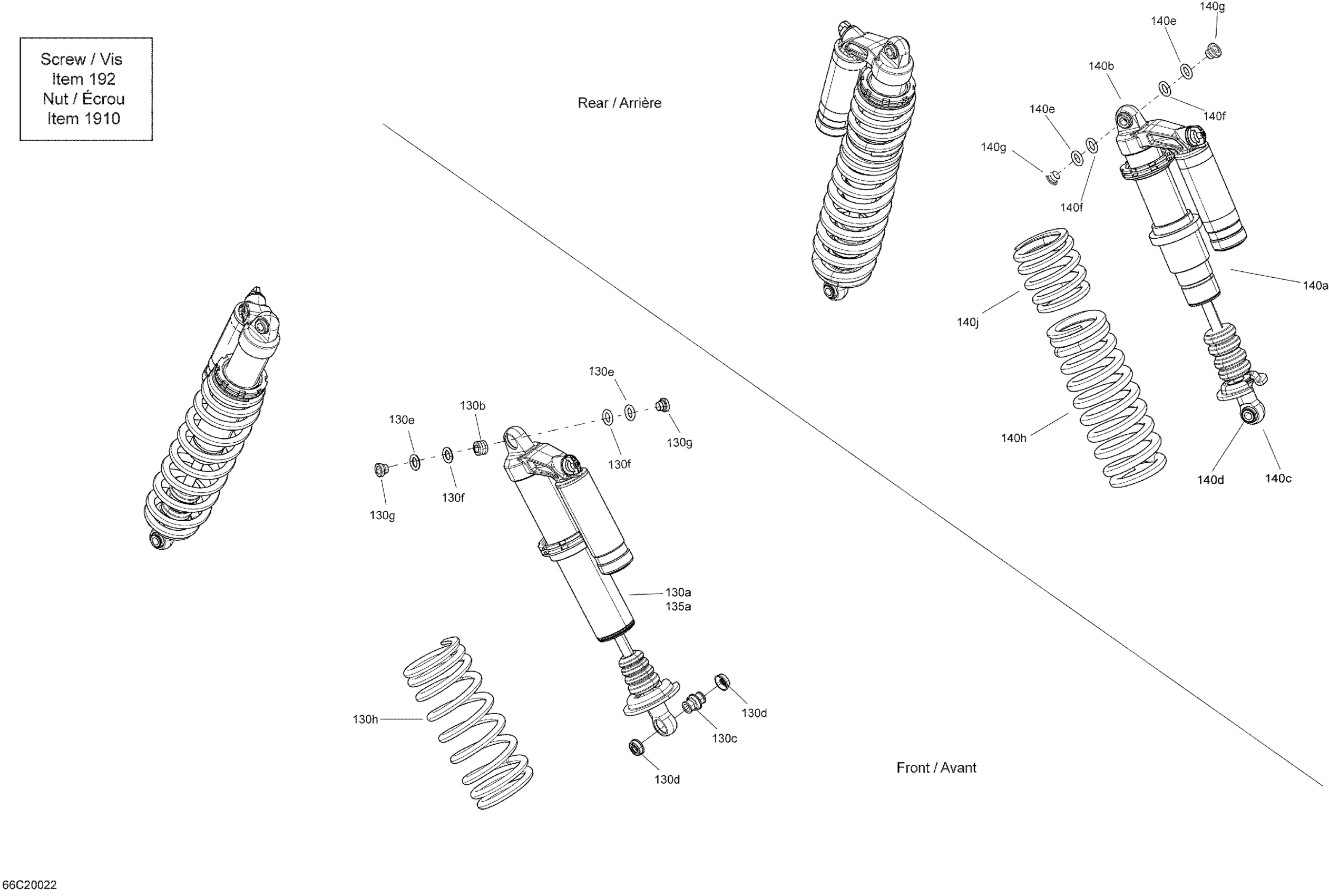

Can-Am Maverick Sport MAX 1000R - 2020 Shocks Diagram

Description

Price

130a

LH Front Shock

706203673

$644.75

130b

Spherical Bearing

715900329

$79.07

130c

Spherical Bearing

715900330

$79.07

130d

Protector

715900331

$12.49

130e

O-Ring Bushing

715900268

$12.49

130f

Retaining Ring

715900252

$10.24

130h

Can-Am Red Front Spring

706203349

$97.73

135a

RH Front Shock

706203675

$624.60

140a

Rear Shock

706003503

$644.75

140b

Spherical Bearing

715900329

$79.07

140c

Spherical Bearing

715900330

$79.07

140d

Protector

715900331

$12.49

140e

O-Ring Bushing

715900268

$12.49

140f

Retaining Ring

715900252

$10.24

140h

Can-Am Red, Rear Spring

706003179

$93.25

140j

Can-Am Red, Rear Spring

706003470

$128.33

192

Flange Screw M12 X 60

250000857

$6.99

1910

Elastic Flange Nut M12

233221466

$2.46
